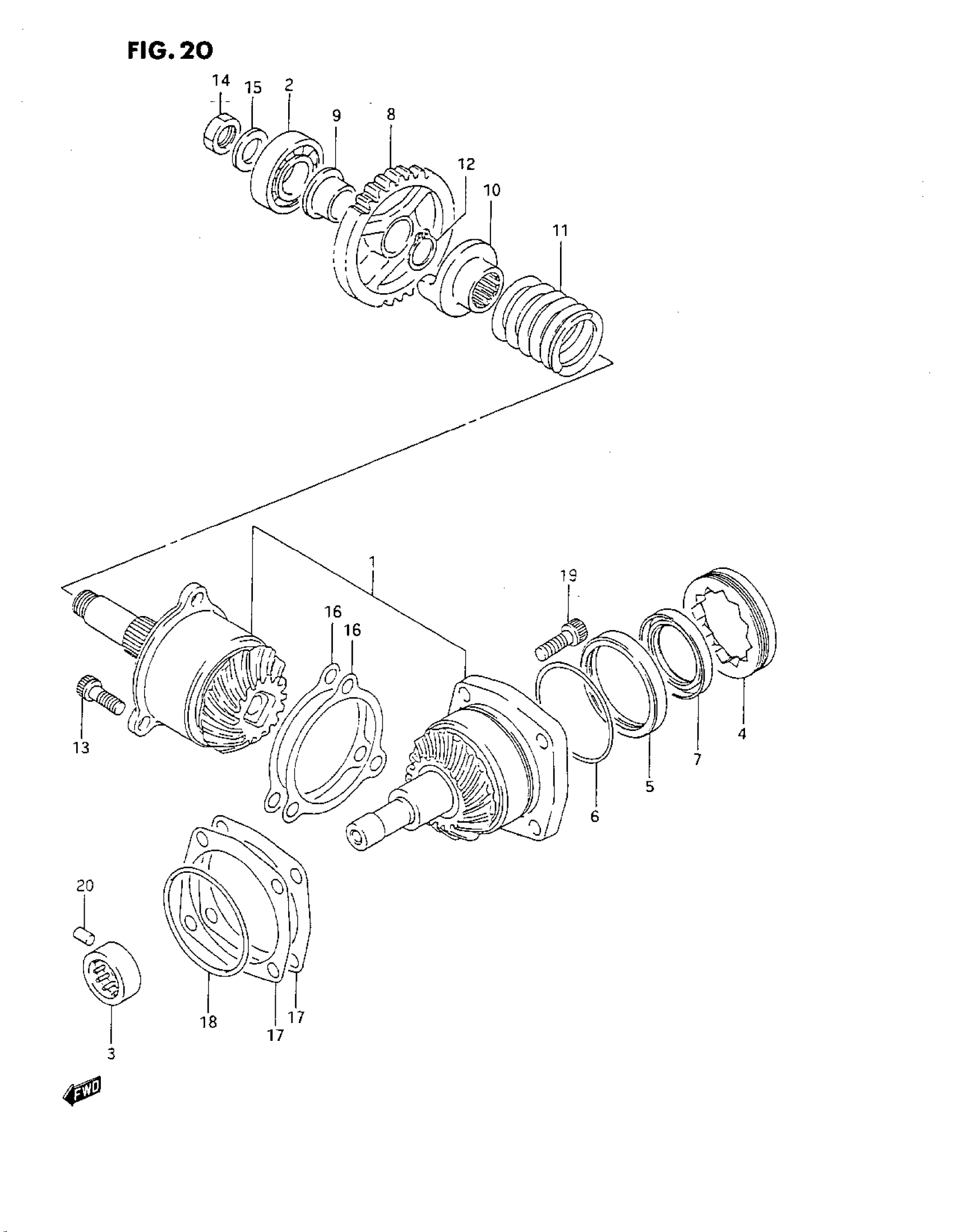

Suzuki VS800GL (1993) SECONDARY DRIVE GEAR Diagram

#

Description
Price

1

GEAR & HOUSING SET, SECONDARY

24900-38822

Unavailable

2

BEARING (20X52X15)

09262-20073

$23.28

3

BEARING (20X34X16)

09263-20038

$55.95

4

STOPPER, BEARING

24942-38A50

$66.40

5

HOUSING, OIL SEAL

24943-38A50

$87.70

6

0 RING (D:1.2, ID:59.6)

09280-60003

$2.77

7

OIL SEAL (38X54X8.5)

09283-38016

$18.35

8

GEAR, REDUCTION DRIVEN (NT:30)

24631-38A00

Unavailable

9

BUSH,REDUCTION DRIVEN GEAR

24632-38A00

Unavailable

10

DOG, OUTPUT CAM

24922-38A00

Unavailable

11

SPRING

09440-44002

Unavailable

12

CIRCLIP This part replaces 08331-31216.

08331-31219

$2.43

13

BOLT | MODEL N/P This part replaces 07110-08256.

07130-0825B

$3.37

13

BOLT | MODEL R This part replaces 07130-08253.

07130-0825B

$3.37

14

NUT This part replaces 09140-16014.

09140-16005

$3.75

15

WASHER (16X29X4)

09160-16029

$6.35

16

SHIM (T:0.30) | 0-2, U.R.

24935-38A01-030

Unavailable

16

SHIM (T:0.35) | 0-2, U.R.

24935-38A01-035

Unavailable

16

SHIM (T:0.40) | 0-2, U.R.

24935-38A01-040

Unavailable

16

SHIM (T:0.50) | 0-2, U.R.

24935-38A01-050

Unavailable

16

SHIM (T:0.60) | 0-2, U.R.

24935-38A01-060

Unavailable

17

SHIM (T:0.30) | 0-2, U.R.

24945-05A00-0A0

Unavailable

17

SHIM (T:0.35) | 0-2, U.R.

24945-05A00-0B0

Unavailable

17

SHIM (T:0.40) | 0-2, U.R.

24945-05A00-0C0

Unavailable

17

SHIM (T:0.50) | 0-2, U.R.

24945-05A00-0D0

Unavailable

17

SHIM (T:0.60) | 0-2, U.R.

24945-05A00-0E0

Unavailable

18

O-RING (D:2.1, ID:66.2)

09280-67004

$4.10

19

BOLT | MODEL N/P This part replaces 07110-08256.

07130-0825B

$3.37

19

BOLT | MODEL R This part replaces 07130-08253.

07130-0825B

$3.37

20

PIN

04221-07129

$1.86
