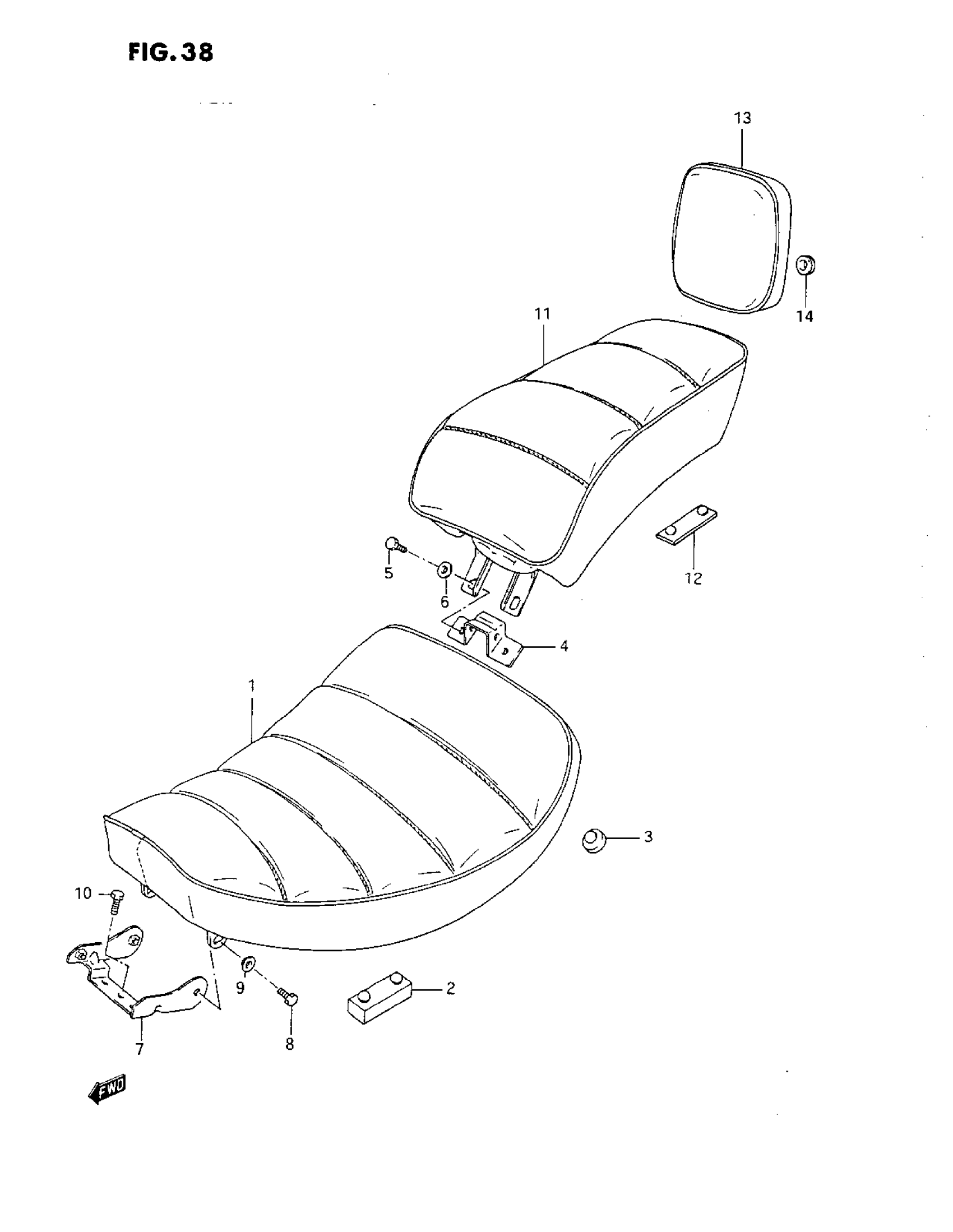

Suzuki VS800GL (1993) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 45100-38A41-5KR.

45100-38A43-5KR

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P/R This part replaces 45100-38A42-5KR.

45100-38A43-5KR

Unavailable

2

CUSHION

45149-43500

$6.85

3

CUSHION

09321-10012

$2.92

4

PLATE, SEAT HOOK REAR

45119-38A00

$8.18

5

BOLT This part replaces 01177-06166.

01580-0616A

$2.42

6

WASHER

09169-06037

$2.45

7

BRACKET, SEAT FRONT | MODEL N This part replaces 45210-38A02-03F.

45210-38A03

$31.70

7

BRACKET, SEAT FRONT | MODEL N/P This part replaces 45210-38A02-19A.

45210-38A03

$31.70

7

BRACKET, SEAT FRONT | MODEL P This part replaces 45210-38A02-0CG.

45210-38A03

$31.70

7

BRACKET, SEAT FRONT | MODEL R

45210-38A03

$31.70

8

BOLT This part replaces 01177-06166.

01580-0616A

$2.42

9

WASHER

09169-06037

$2.45

10

BOLT This part replaces 01177-06166.

01580-0616A

$2.42

11

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 45300-38A40-5KR.

45300-38AV0-5KR

Unavailable

11

NO DESCRIPTION AVAILABLE | MODEL P/R This part replaces 45300-38A41-5KR.

45300-38AV0-5KR

Unavailable

12

CUSHION

45149-14500

$7.67

13

PAD ASSY, SEAT (BLACK) | MODEL N This part replaces 45350-38A40-5KR.

45350-38A41-5KR

Unavailable

13

PAD ASSY, SEAT (BLACK) | MODEL P/R

45350-38A41-5KR

Unavailable

14

CUSHION This part replaces 09320-09026.

09320-09062

$2.00
