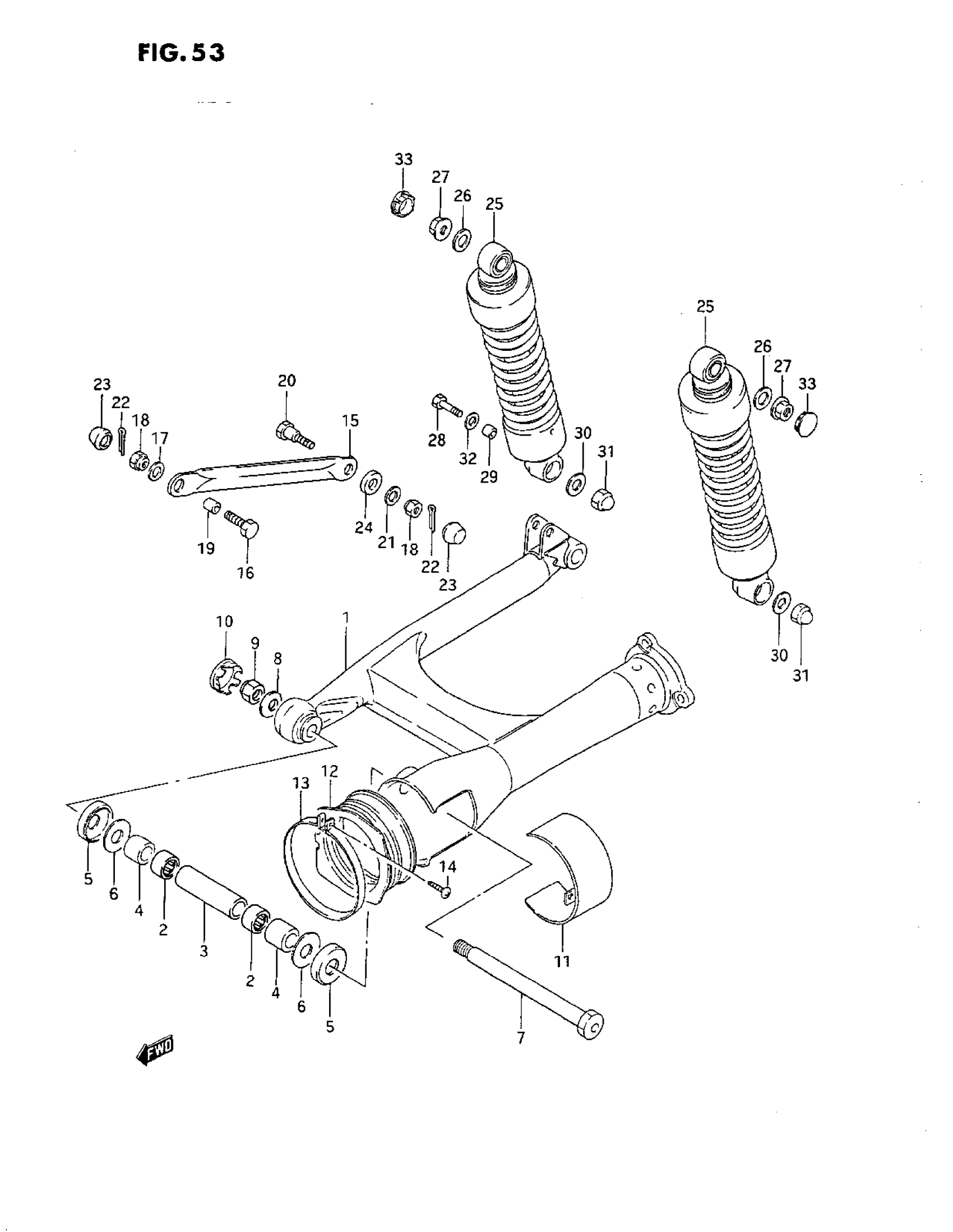

Suzuki VS800GL (1993) REAR SWINGING ARM Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 61100-38E00-03F.

61100-38E01-03F

Unavailable

1

SWINGING ARM, REAR (RED) | MODEL N/P/R This part replaces 61100-38E00-19A.

61100-38E01-19A

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 61100-38E00-0CG.

61100-38E01-0CG

Unavailable

1

SWINGING ARM, REAR (BLACK) | MODEL R This part replaces 61100-38E00-33J.

61100-38E01-33J

Unavailable

2

BEARING

09263-22022

$22.69

3

SPACER, CENTER This part replaces 61282-38E00.

61282-38E01

$19.57

4

SPACER, PIVOT BEARING

61251-32410

$14.20

5

SEAL This part replaces 61262-14A00.

61262-14A01

$6.17

6

THRUST WASHER

08211-16341

$2.39

7

SHAFT, PIVOT

61211-38E00

Unavailable

8

WASHER

09160-17047

$5.00

9

NUT This part replaces 08319-21168.

08319-2116A

$9.00

10

CAP, RH

61222-38A01

$13.35

11

COVER, PIVOT LH (SILVER) | MODEL N This part replaces 61232-38A00-03F.

61232-38A00-13L

Unavailable

11

CAP, LH (RED) | MODEL N/P/R

61232-38A00-19A

Unavailable

11

COVER, PIVOT LH (SILVER) | MODEL P This part replaces 61232-38A00-0CG.

61232-38A00-13L

Unavailable

11

CAP, LH (BLACK) | MODEL R This part replaces 61232-38A00-33J.

61232-38A00-YAY

Unavailable

12

BOOT, PROPELLER SHAFT

61372-38A00

$27.97

13

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

14

SCREW | MODEL N/P This part replaces 03211-04255.

03211-0425B

$2.70

14

SCREW | MODEL R This part replaces 03211-04253.

03211-0425B

$2.70

15

TORQUE LINK, REAR (BLACK)

64310-38A13-019

Unavailable

16

BOLT, FRONT

09101-10037

Unavailable

17

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.34

18

NUT | MODEL N

09159-10059

$2.53

18

NUT, FRONT | MODEL P/R

09159-10059

$2.53

18

NUT | MODEL P This part replaces 08310-12108.

08310-00107

$2.19

18

NUT | MODEL R This part replaces 08310-00103.

08310-0010A

$1.84

19

SPACER (10.2X14X9.60) This part replaces 09180-10114.

09180-10137

$4.25

20

BOLT, REAR

09111-10035

$6.23

21

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

22

PIN This part replaces 04111-16208.

04111-1620A

$1.49

23

CAP | MODEL N

09251-13002

$4.67

23

CAP, FRONT | MODEL P/R

09251-13002

$4.67

24

CUSHION, REAR This part replaces 09320-12039.

09320-12501

$6.83

25

ABSORBER ASSY, REAR SHOCK This part replaces 62100-38A51.

62100-38A53

$470.62

26

WASHER, LOWER (10.5X24X2.3) | MODEL N This part replaces 09160-10001.

09160-10093

$2.35

26

WASHER | MODEL P/R This part replaces 09160-10013.

09160-10123

$2.12

27

NUT | MODEL N/P This part replaces 08316-16106.

08316-1010B

$2.66

27

NUT | MODEL R This part replaces 08316-10103.

08316-1010B

$2.66

28

BOLT, LOWER RH

09100-10247

$2.98

29

SPACER, LOWER RH (10.2X14X20.7) This part replaces 09180-10104.

09180-10139

$3.99

30

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10095.

09160-10093

$2.35

31

NUT | MODEL N/P This part replaces 08313-11107.

08313-10107

$2.50

31

NUT | MODEL R

08313-10107

$2.50

32

WASHER, KNUCKLE END | MODEL N/P This part replaces 08322-11104.

08322-0110A

$1.84

33

CAP

95672-24A00

$5.83
