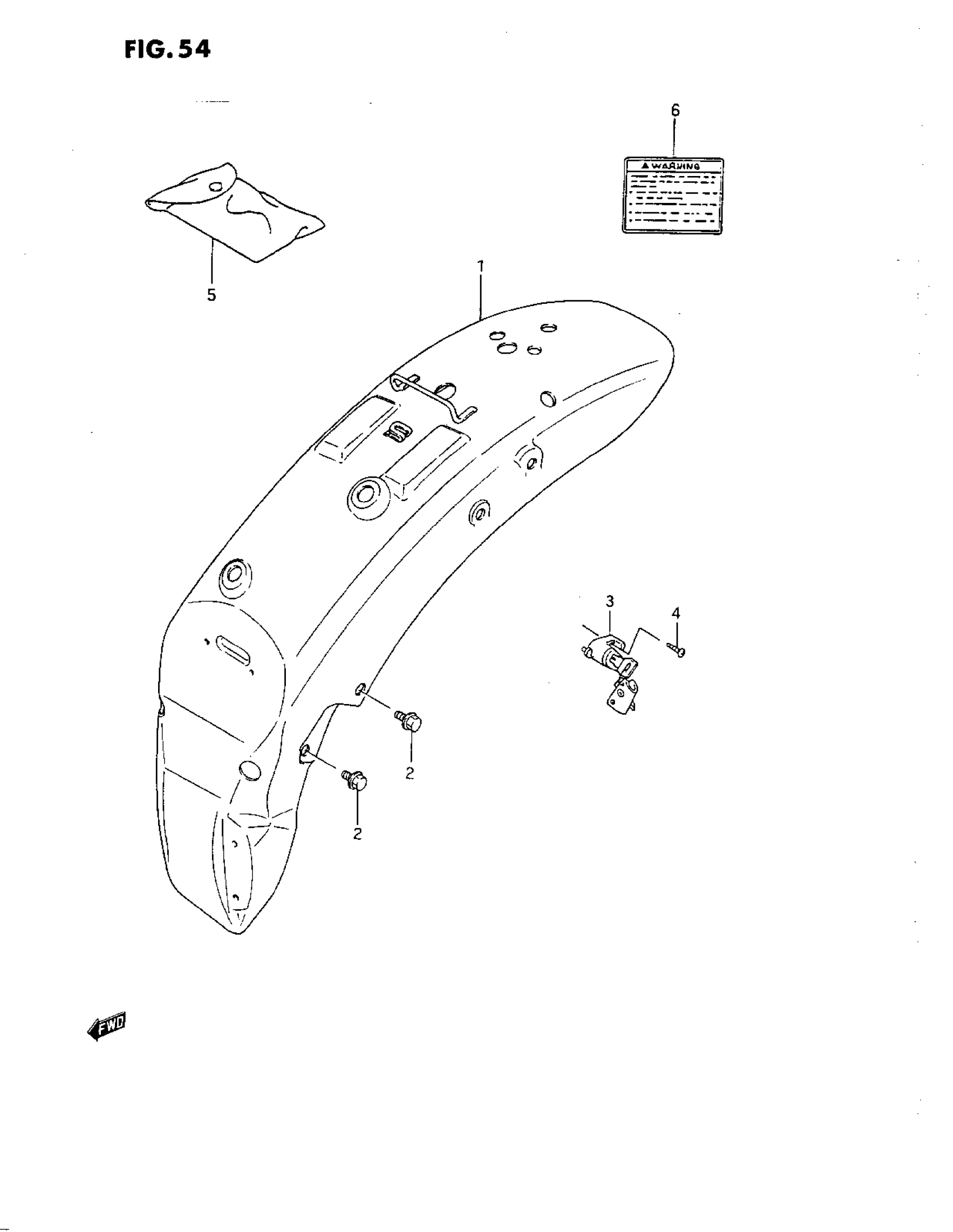

Suzuki VS800GL (1993) REAR FENDER Diagram

#

Description
Price

1

FENDER, REAR (BLUE) | MODEL N

63110-38A00-03F

Unavailable

1

FENDER, REAR (RED) | MODEL N/P/R

63110-38A00-19A

Unavailable

1

FENDER, REAR (BLACK) | MODEL P This part replaces 63110-38A00-0CG.

63110-38A00-33J

Unavailable

1

FENDER, REAR (BLACK) | MODEL R

63110-38A00-33J

Unavailable

1

FENDER, REAR (BLUE) | MODEL N CALIFORNIA ONLY

63110-38A20-03F

Unavailable

1

FENDER, REAR (RED) | MODEL N/P/R CALIFORNIA ONLY

63110-38A20-19A

Unavailable

1

FENDER, REAR (BLUE) | MODEL P CALIFORNIA ONLY

63110-38A20-0CG

Unavailable

1

FENDER, REAR (BLACK) | MODEL R CALIFORNIA ONLY

63110-38A20-33J

Unavailable

2

BOLT | MODEL N/P This part replaces 01517-06106.

01550-0610A

$1.97

2

BOLT, CLAMP | MODEL R This part replaces 01550-06123.

01550-0612A

$1.97

2

BOLT | MODEL N/P CALIFORNIA ONLY This part replaces 01517-06106.

01550-0610A

$1.97

2

BOLT, CLAMP | MODEL R CALIFORNIA ONLY This part replaces 01550-06123.

01550-0612A

$1.97

2

BOLT, REAR | MODEL N/P CALIFORNIA ONLY

01517-06166

Unavailable

2

BOLT | MODEL R CALIFORNIA ONLY This part replaces 01550-06163.

01550-0616A

$1.97

3

LOCK ASSY, HELMET

95700-38821

$66.87

4

SCREW

02112-05127

$1.97

5

TOOL ASSY | MODEL N/P This part replaces 09800-20008.

09800-21013

Unavailable

5

TOOL ASSY | MODEL R

09800-21013

Unavailable

6

LABEL,GENERAL W This part replaces 68319-40C00.

68319-33E02

$7.25

7

LABEL, TIRE AIR PRESSURE | WITH OUT DRAWING This part replaces 68332-39A30.

68332-39A40

Unavailable

8

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY FOR 19A

68387-38A00-E87

Unavailable

8

LABEL, VACUUM HOSE ROUTING | CALIFORNIA ONLY FOR 33J WITH OUT DRAWING

68387-38A00-9FD

Unavailable
