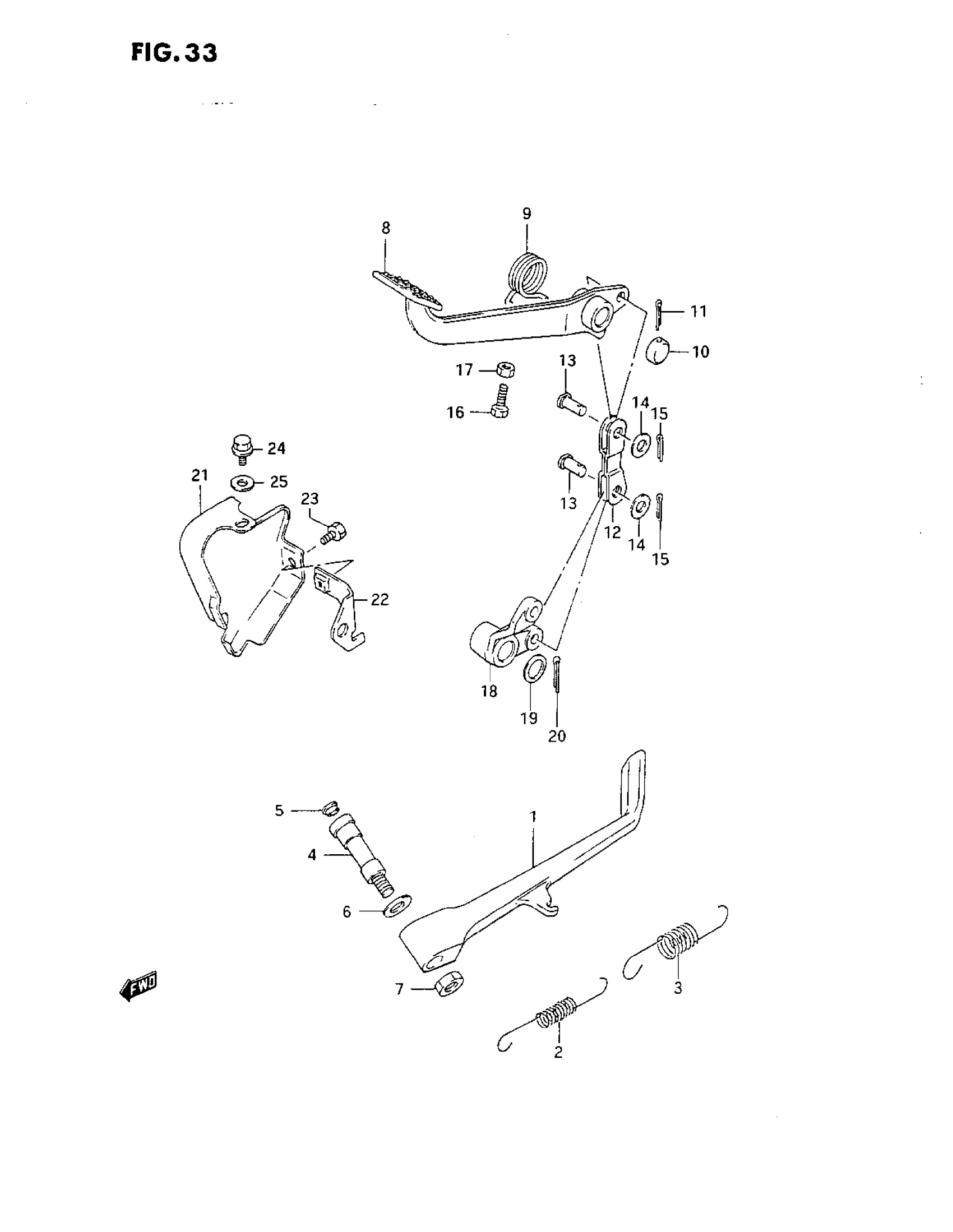

Suzuki VS800GL (1993) PROP STAND-REAR BRAKE Diagram

#

Description
Price

1

STAND, PROP This part replaces 42310-38A11.

42310-24B01

$104.97

2

SPRING, INNER

09443-13025

$6.80

3

SPRING, OUTER

09443-18021

$6.23

4

BOLT

42341-38B01

$13.67

5

CAP

43575-34500

$1.72

6

SHIM This part replaces 08221-15245.

09181-15158

$3.03

7

NUT

09140-10044

$3.03

8

PEDAL ASSY, BRAKE This part replaces 43100-38A30.

43100-38A31

$124.57

9

SPRING

09448-31034

$6.08

10

CAP This part replaces 43135-07A01.

43135-07A02

Unavailable

11

PIN This part replaces 04111-30308.

04111-3030A

$1.49

12

LINK, BRAKE ROD This part replaces 43230-38A00.

43230-38A02

Unavailable

13

PIN

09200-08055

$3.50

14

WASHER This part replaces 08322-11088.

08322-01087

$2.13

15

.COTTER PIN This part replaces 04111-20158.

04111-2015A

$1.49

16

BOLT This part replaces 01107-06207.

01500-06207

$2.28

17

.NUT This part replaces 08310-11067.

08310-00067

$2.13

18

ARM, BRAKE PEDAL LH This part replaces 43260-38A21.

43260-38A22

Unavailable

19

WASHER This part replaces 09160-16015.

09160-16043

$2.12

20

PIN This part replaces 04111-30308.

04111-3030A

$1.49

21

COVER, BRAKE | MODEL N This part replaces 43295-38A20.

43295-38A31

Unavailable

21

COVER, BRAKE | MODEL P This part replaces 43295-38A30.

43295-38A31

Unavailable

21

COVER, BRAKE | MODEL R

43295-38A21

Unavailable

22

BRACKET, BRAKE COVER

43290-38A10

Unavailable

23

SCREW (6X10) This part replaces 09128-06004.

09128-06044

$1.49

24

BOLT

01547-06107

$1.65

25

WASHER

09160-06094

$1.49
