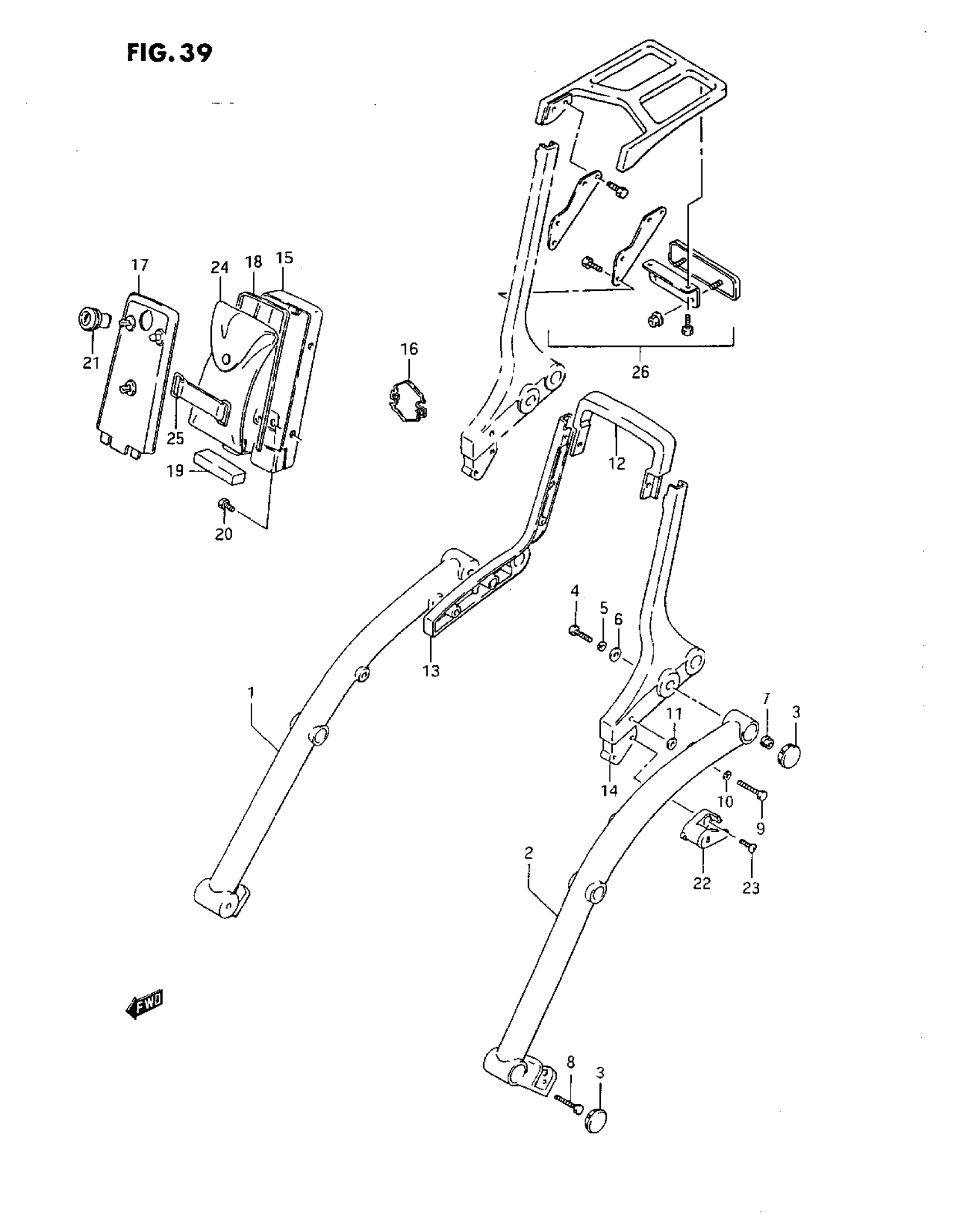

Suzuki VS800GL (1993) PILLION RIDER HANDLE Diagram

#

Description
Price

1

GRIP, FRAME HANDLE RH This part replaces 41610-38A30.

41610-38A20

Unavailable

2

GRIP, FRAME HANDLE LH This part replaces 41620-38A30.

41620-38A20

Unavailable

3

CAP

95672-24A00

$5.83

4

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

8

BOLT This part replaces 01174-06356.

01580-0635B

$4.00

9

BOLT This part replaces 01107-08506.

01500-0850B

$3.77

10

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

11

WASHER This part replaces 08322-21086.

08322-0108A

$1.92

12

HANDLE, PILLION RIDER UPPER This part replaces 46211-38B00.

46211-38B01

Unavailable

13

HANDLE,PILLION This part replaces 46212-38A20.

46212-38A50

Unavailable

13

HANDLE, PILLION RIDER RH | CALIFORNIA ONLY This part replaces 46212-38A30.

46212-38A31

Unavailable

14

HANDLE, PILLION RIDER LH This part replaces 46213-38A20.

46213-38A21

Unavailable

14

HANDLE, PILLION RIDER LH | CALIFORNIA ONLY This part replaces 46213-38A30.

46213-38A31

Unavailable

15

HOLDER, TOOL REAR (BLACK) This part replaces 47430-38B01-22S.

47430-38B11-22S

Unavailable

16

EMBLEM This part replaces 68261-38A20.

68261-38A30

$37.15

17

HOLDER, TOOL FRONT

47441-38B00

$24.42

18

MOLDING, REAR

47437-38B00

$7.95

19

CUSHION, TOOL BACK

47438-38B00

Unavailable

20

BOLT This part replaces 01137-06128.

01570-06127

$2.50

21

LOCK SET, TOOL HOLDER

95700-24831

$71.38

22

LOCK ASSY, HELMET

95700-38821

$66.87

23

SCREW This part replaces 02112-05128.

02112-05127

$1.97

24

TOOL ASSY This part replaces 09800-20008.

09800-21013

Unavailable

25

BAND, TOOL

09462-00008

$4.77

26

CARRIER SET, REAR | OPT This part replaces 46300-38821.

46300-38822

Unavailable
