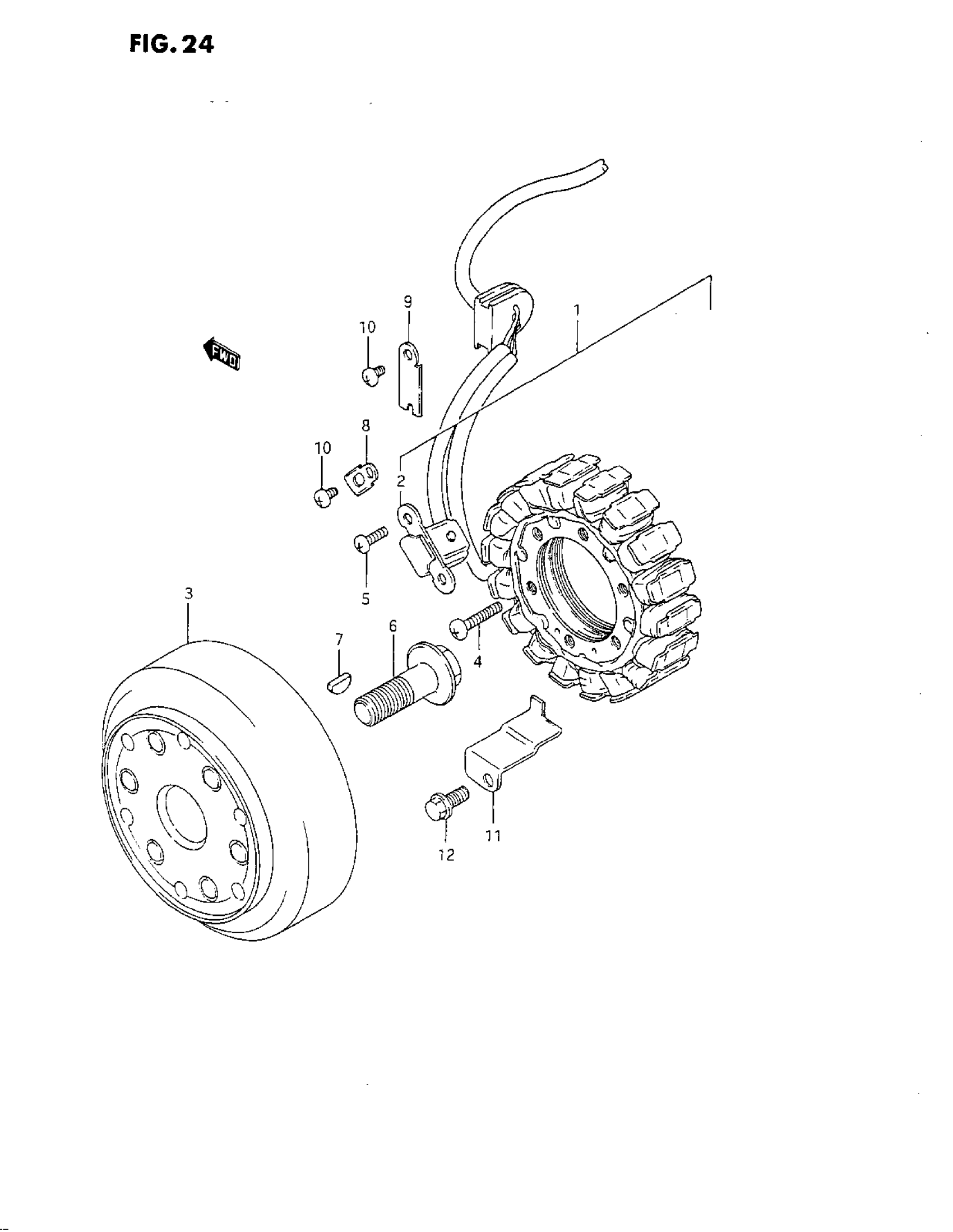

Suzuki VS800GL (1993) MAGNETO Diagram

#

Description
Price

1

STATOR

32101-38A10

Unavailable

2

SENSOR, TIMING

32160-38A10

Unavailable

3

ROTOR

32102-38A10

Unavailable

4

SCREW

01547-06307

$2.03

5

SCREW

02112-05107

$1.49

6

BOLT

09103-14001

$11.82

7

KEY This part replaces 08341-31049.

09420-04008

$3.42

8

CLAMP

31497-45000

$1.92

9

CLAMP

32371-38A10

Unavailable

10

SCREW

02112-05107

$1.49

11

CLAMP This part replaces 32371-38A20.

32371-45C00

$4.58

12

BOLT

01547-06107

$1.65
