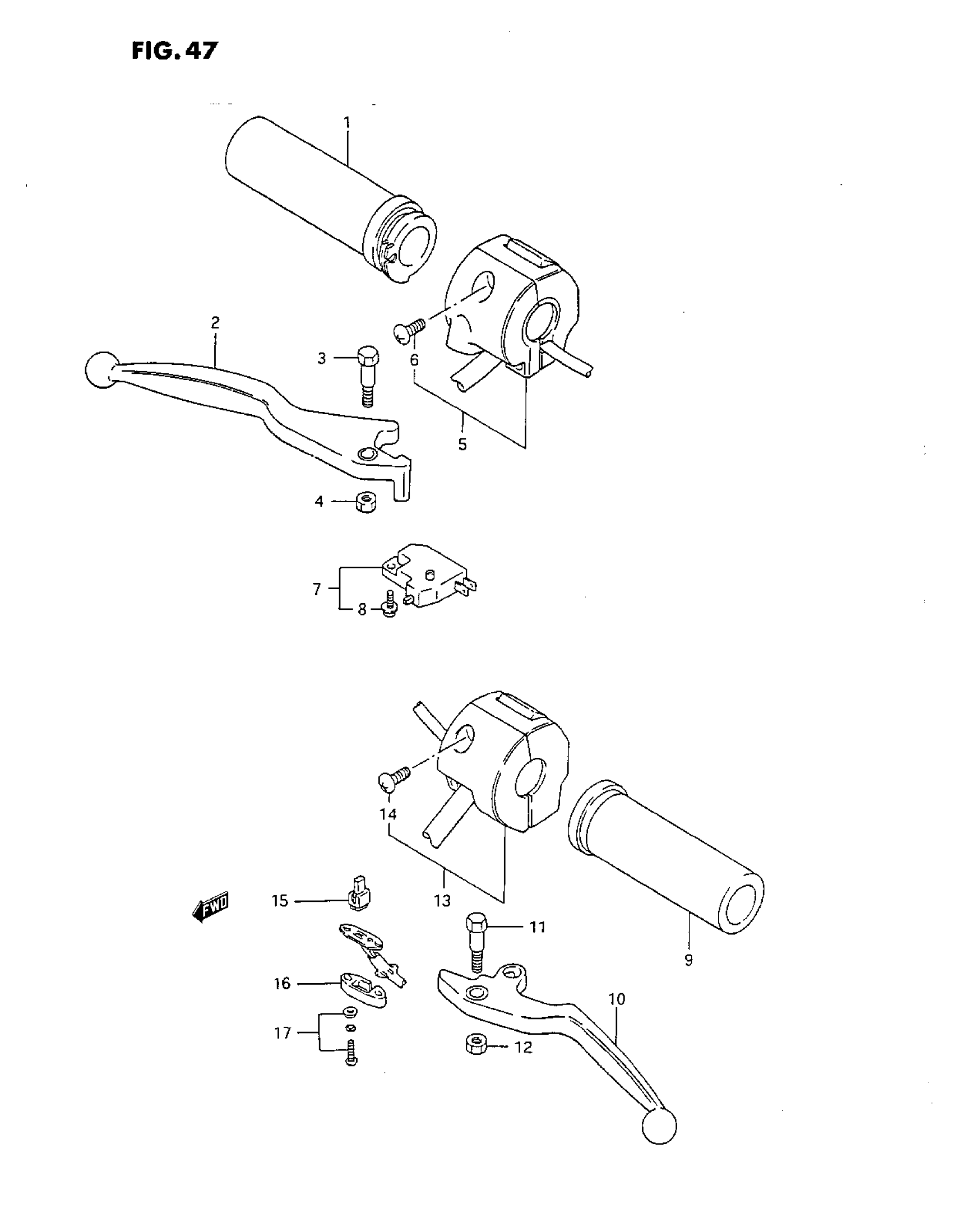

Suzuki VS800GL (1993) HANDLE SWITCH Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-38A02

Unavailable

2

LEVER, BRAKE | MODEL N This part replaces 57420-24B00.

57420-24B01

$26.03

2

LEVER, BRAKE | MODEL P/R

57420-24B01

$26.03

3

BOLT | MODEL N This part replaces 57431-38A00.

57431-38A10

$9.23

3

BOLT | MODEL P/R

57431-38A10

$9.23

4

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

5

SWITCH ASSY, HANDLE RH

37200-39A70

Unavailable

6

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

7

SWITCH ASSY,FR BRAKE This part replaces 57460-17C00.

57460-14J02

$38.46

8

SCREW

57465-17C00

$2.19

9

GRIP, LH

57210-38A02

Unavailable

10

LEVER, CLUTCH | MODEL N This part replaces 57620-38A00.

57621-38A02

$21.10

10

LEVER, CLUTCH | MODEL P This part replaces 57620-38A01.

57621-38A02

$21.10

10

LEVER, CLUTCH | MODEL R

57621-38A02

$21.10

11

BOLT | MODEL N This part replaces 57431-38A00.

57431-38A10

$9.23

11

BOLT | MODEL P/R

57431-38A10

$9.23

12

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

13

SWITCH ASSY, HANDLE LH

37400-39A80

Unavailable

14

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

15

CONTACT

57465-18601

$4.34

16

COVER

57481-38A10

Unavailable

17

SCREW

57484-38A00

Unavailable
