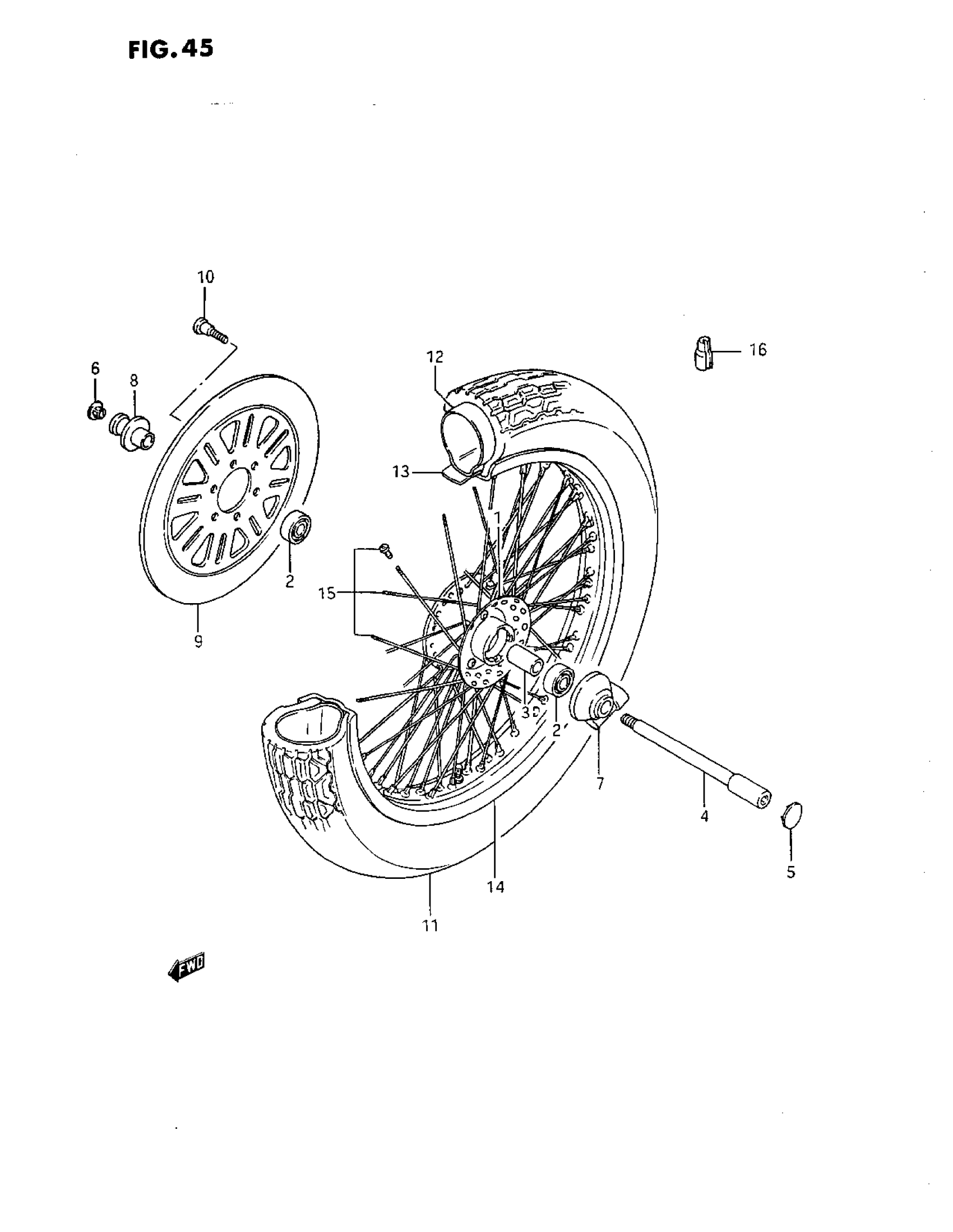

Suzuki VS800GL (1993) FRONT WHEEL Diagram

#

Description
Price

1

HUB ASSY, FRONT

54110-38B00

Unavailable

2

BEARING This part replaces 08123-63027.

08123-6302B

$22.74

3

SPACER, HUB BEARING

09180-15004

$10.27

4

AXLE, FRONT

54711-38B02

$80.52

5

CAP, FRONT AXLE LH

54792-38B00

$22.33

6

CAP, FRONT AXLE RH

54791-38B01

$5.58

7

BOX ASSY,SPEEDO This part replaces 54600-38A11.

54600-38A12

$122.00

8

SPACER, AXLE

54750-38B00

$27.97

9

DISC, FRONT BRAKE

59211-38B00

$361.30

10

BOLT

09106-08049

$4.62

11

TIRE, FRONT (80/90-21 48H) (BRIDGESTONE)

55100-38A60

Unavailable

12

TIRE, FRONT This part replaces 55200-44B10.

55200-16511

$36.73

13

PROTECTOR, INNER TUBE This part replaces 55261-08D00.

55261-14540

$3.83

14

RIM, WHEEL (2.15X21)

55311-38A30

Unavailable

15

SPOKE SET

55320-38A20

Unavailable

16

BALANCER, WHEEL (20G) | 0-3, U.R. This part replaces 55412-38A00.

55412-41F00

$8.12

16

BALANCER WHEEL (30G) | 0-3, U.R. This part replaces 55413-38A00.

55413-41F00

$7.50
