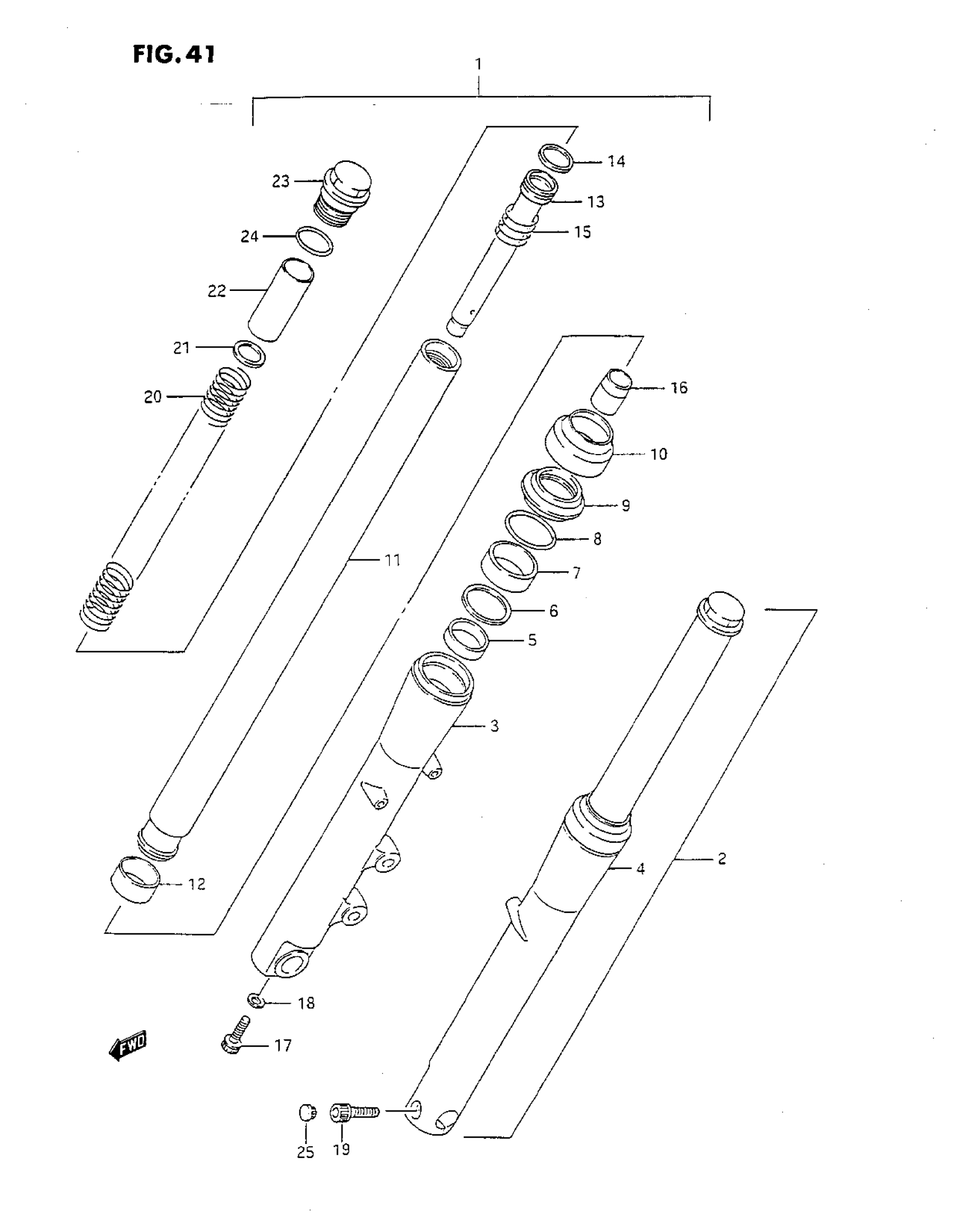

Suzuki VS800GL (1993) FRONT FORK Diagram

#

Description
Price

1

DAMPER ASSY, FRONT FORK RH This part replaces 51103-39A00.

51103-39A41

Unavailable

2

DAMPER ASSY, FRONT FORK LH This part replaces 51104-39A00.

51104-39A41

Unavailable

3

TUBE, OUTER RH

51131-39A00

Unavailable

4

TUBE, OUTER LH

51141-39A00

Unavailable

5

BUSH, GUIDE This part replaces 51152-39A00.

51152-39A40

$20.76

6

SPACER, SEAL

51168-39A00

$7.67

7

OIL SEAL | MODEL N/P This part replaces 51153-39A00.

51153-19D00

$22.96

7

OIL SEAL | MODEL R

51153-19D00

$22.96

8

RING, STOPPER | MODEL N/P This part replaces 51556-32B00.

51156-32B00

$5.50

8

RING, STOPPER | MODEL R

51156-32B00

$5.50

9

DUST SEAL | MODEL N/P This part replaces 51571-39A00.

51173-19D00

$24.99

9

DUST SEAL | MODEL R

51173-19D00

$24.99

10

COVER, DUST SEAL | MODEL N/P This part replaces 51572-39A00.

51572-38B00

$41.68

10

COVER, CASE | MODEL R

51572-38B00

$41.68

11

TUBE, INNER This part replaces 51110-39A00.

51110-39A41

Unavailable

12

BUSH, SLIDE | MODEL N/P This part replaces 51121-39A00.

51121-19D00

$26.12

12

BUSH, SLIDE | MODEL R

51121-19D00

$26.12

13

PIPE, SEAT

51146-39A00

Unavailable

14

RING, PISTON

51196-32B00

$8.42

15

SPRING, REBOUND

51177-32B00

Unavailable

16

PIECE, OIL LOCK

51195-38B00

$30.22

17

BOLT

51147-48130

$4.34

18

GASKET

51148-36011

$3.56

19

BOLT This part replaces 07110-08357.

07130-08357

$3.18

20

SPRING

51171-39A00

Unavailable

21

JOINT, SPRING

51172-32B00

$6.38

22

SPACER, SPRING

51176-39A00

Unavailable

23

BOLT, INNER TUBE

51351-39A00

Unavailable

24

O-RING

51117-39A00

$4.02

25

CAP

09250-06009

$3.42
