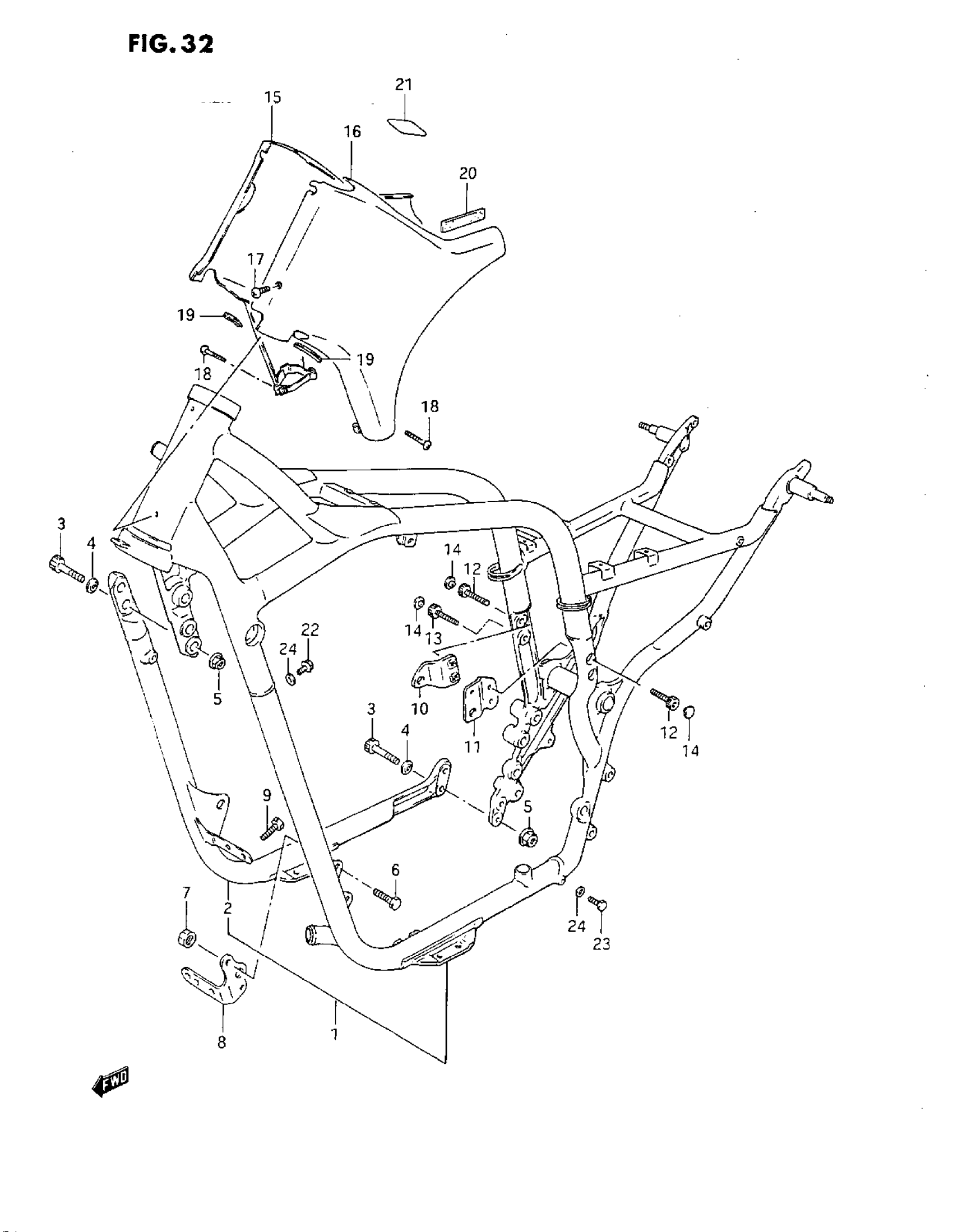

Suzuki VS800GL (1993) FRAME Diagram

#

Description
Price

1

FRAME SET | MODEL N This part replaces 41101-39810-03F.

41101-39813-03F

Unavailable

1

FRAME SET (RED) | MODEL N/P. FOR ENGINE CASE & FRAME SEE FEF #15 This part replaces 41101-39810-19A.

41101-39813-19A

Unavailable

1

FRAME SET (RED) | MODEL R. FOR ENGINE CASE & FRAME SEE FEF #15 This part replaces 41101-39811-19A.

41101-39813-19A

Unavailable

1

FRAME SET | MODEL P. FOR ENGINE CASE & FRAME SEE FEF #15 This part replaces 41101-39810-0CG.

41101-39813-0CG

Unavailable

1

FRAME SET (BLACK) | MODEL R This part replaces 41101-39811-33J.

41101-39813-33J

Unavailable

2

TUBE, FRAME DOWN (BLUE) | MODEL N

41140-38A00-03F

Unavailable

2

TUBE, FRAME DOWN (RED) | MODEL N

41140-38A00-19A

Unavailable

3

BOLT, REAR

09106-10019

$3.50

4

WASHER This part replaces 09164-10005.

09164-10010

$4.83

5

NUT This part replaces 08319-31105.

08319-3110A

$2.73

6

BOLT | MODEL N/P This part replaces 01517-08205.

01550-0820A

$2.23

6

BOLT | MODEL R This part replaces 01550-08203.

01550-0820A

$2.23

7

NUT This part replaces 08319-31085.

08319-3108A

$2.32

8

PLATE, NO.1 LH (BLACK) | MODEL N This part replaces 41920-38A00-03F.

41920-38A00-019

Unavailable

8

PLATE, NO.1 LH (BLACK) This part replaces 41920-38A00-19A.

41920-38A00-019

Unavailable

8

PLATE, NO.1 LH (BLACK) | MODEL P This part replaces 41920-38A00-0CG.

41920-38A00-019

Unavailable

8

PLATE, NO.1 LH (BLACK) | MODEL R This part replaces 41920-38A00-33J.

41920-38A00-019

Unavailable

9

BOLT | MODEL N/P This part replaces 01137-08165.

01570-0816A

$3.03

9

BOLT | MODEL R This part replaces 01570-08163.

01570-0816A

$3.03

10

PLATE, NO.1 LH (BLUE) | MODEL N

41950-38A10-03F

Unavailable

10

PLATE, NO.1 LH (RED) | MODEL N This part replaces 41950-38A10-19A.

41950-38A11-19A

Unavailable

10

PLATE, NO.1 LH (RED) | MODEL P/R

41950-38A11-19A

Unavailable

10

PLATE, NO.1 LH (BLUE) | MODEL P

41950-38A11-0CG

Unavailable

10

PLATE, NO.1 LH (BLACK) | MODEL R

41950-38A11-33J

Unavailable

11

PLATE, NO.3 LH (BLUE) | MODEL N

41960-38A10-03F

Unavailable

11

PLATE, NO.3 LH (RED)

41960-38A10-19A

Unavailable

11

PLATE, NO.3 LH (BLUE) | MODEL P

41960-38A10-0CG

Unavailable

11

PLATE, NO.3 LH (BLACK) | MODEL R

41960-38A10-33J

Unavailable

12

BOLT, UPPER

09106-08070

$5.88

13

BOLT, STEERING DAMPER This part replaces 09106-08063.

07130-0830A

$1.74

14

CAP

09250-06004

$1.49

15

NO DESCRIPTION AVAILABLE | MUST USE FRAME/ENGINE CASE ORDER FORM This part replaces 99924-FC001.

99924-FC003

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 47350-38A00-03F.

47350-38A01-03F

Unavailable

15

COVER,FRAME HEA | MODEL N/P This part replaces 47350-38A00-19A.

47350-38A01-13L

Unavailable

15

COVER,FRAME HEA | MODEL R This part replaces 47350-38A01-19A.

47350-38A01-13L

Unavailable

15

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47350-38A00-0CG.

47350-38A01-0CG

Unavailable

15

COVER, FRAME HEAD RH (BLACK) | MODEL R

47350-38A01-33J

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL N This part replaces 47360-38A00-03F.

47360-38A01-03F

Unavailable

16

COVER, FRAME HEAD LH (RED) | MODEL N/P This part replaces 47360-38A00-19A.

47360-38A01-19A

Unavailable

16

COVER, FRAME HEAD LH (RED) | MODEL R

47360-38A01-19A

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL P This part replaces 47360-38A00-0CG.

47360-38A01-0CG

Unavailable

16

COVER, FRAME HEAD LH (BLACK) | MODEL R

47360-38A01-33J

Unavailable

17

SCREW | MODEL N/P This part replaces 02142-05104.

02142-0510B

$1.78

17

STOPPER, CL RLSE CAM SHAFT | MODEL R This part replaces 02142-06103.

02142-0610A

$1.49

18

SCREW | MODEL N/P This part replaces 02112-04254.

02112-0425B

$2.34

18

SCREW | MODEL R This part replaces 02112-04253.

02112-0425B

$2.34

19

MOLDING, FRONT This part replaces 68241-38A10.

68241-04X50-300

$7.32

20

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

21

TAPE, FRAME HEAD COVER

47358-38A00

Unavailable

22

UNION This part replaces 09360-06015.

09360-06015-XC0

Unavailable

23

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

24

GASKET

09168-06004

$1.49
