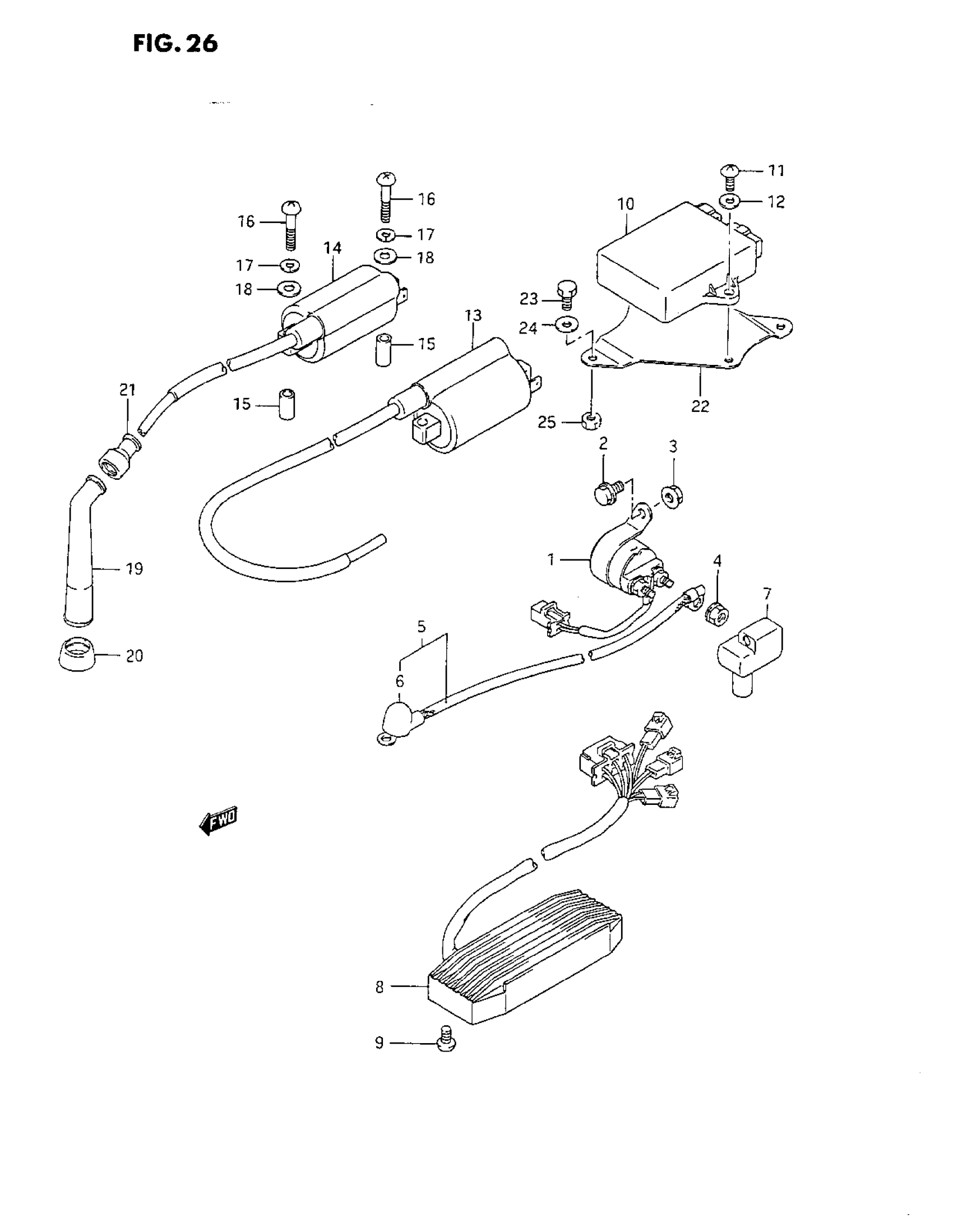

Suzuki VS800GL (1993) ELECTRICAL Diagram

#

Description
Price

1

RELAY, STARTING MOTOR

31800-15501

$97.79

2

BOLT This part replaces 01517-06106.

01550-0610A

$1.97

3

NUT This part replaces 08316-16066.

08316-1006B

$2.50

4

NUT This part replaces 08361-35066.

08361-3506A

$1.80

5

LEAD WIRE, STARTING MOTOR

33850-38A00

$24.42

6

CAP, STARTER MOTOR This part replaces 31861-05300.

31861-48B10

$6.55

7

CAP, TERMINAL

31861-38A00

$7.87

8

RECTIFIER, REGULATOR

32800-38A00

Unavailable

9

BOLT | MODEL N/P This part replaces 01107-06104.

01500-0610B

$1.81

9

BOLT | MODEL R This part replaces 01500-06103.

01500-0610B

$1.81

10

IGNITER UNIT

32900-38A10

Unavailable

11

SCREW This part replaces 02112-06126.

02112-0612A

$1.49

12

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

13

COIL, IGNITION (CORD L:300) | MODEL N/P, REAR This part replaces 33410-38A10.

33410-38A11

$157.58

13

COIL, IGNITION (CORD L:300) | MODEL R, REAR

33410-38A11

$157.58

14

COIL, IGNITION (CORD L:520) | MODEL N/P, FRONT This part replaces 33420-38A10.

33420-38A11

$157.58

14

COIL, IGNITION (CORD L:520) | MODEL R, FRONT

33420-38A11

$157.58

15

SPACER

09180-06144

$4.19

16

SCREW

09125-05053

Unavailable

17

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.84

18

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.84

18

WASHER, FRONT | CALIFORNIA ONLY This part replaces 08322-21056.

08322-0105A

$1.84

19

CAP, SPARK PLUG

33510-11410

$25.95

20

SEAL, SPARK PLUG This part replaces 33541-24510.

33541-47D00

$7.83

21

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

22

PLATE, IGNITER FITTING

32910-38A10

Unavailable

23

BOLT This part replaces 01107-06126.

01500-0612A

$1.78

24

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

25

NUT This part replaces 08316-26066.

08316-1006B

$2.50
