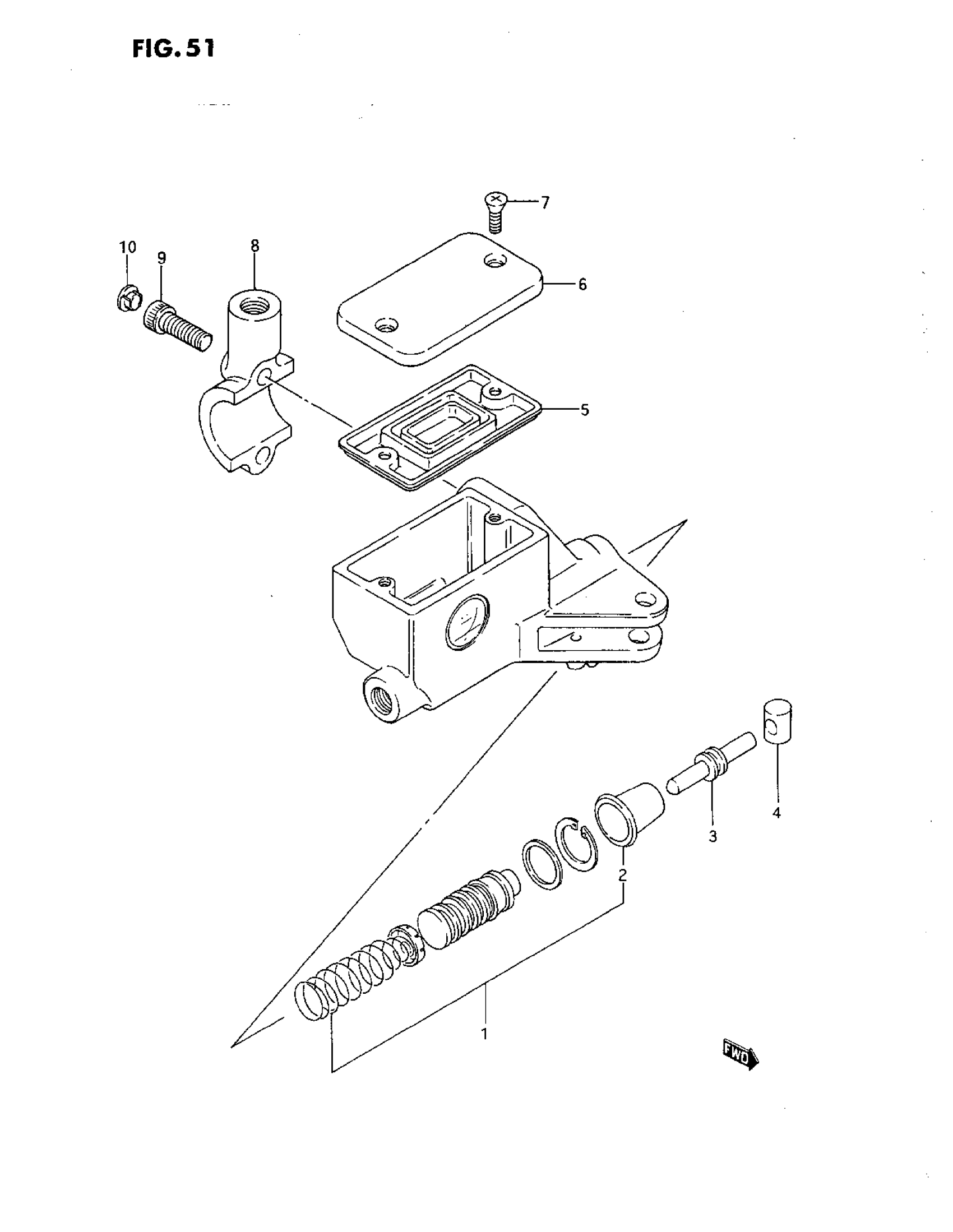

Suzuki VS800GL (1993) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,C This part replaces 59800-39A20.

59800-39A21

$477.10

1

PISTON & CUP SET

59800-08810

$37.77

2

BOOT

59666-44300

$5.54

3

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.74

4

BUSH

59892-08A00

$4.84

5

DIAPHRAGM

59667-49460

$9.36

6

CAP

59669-24B00

$69.47

7

SCREW This part replaces 59691-38A00.

02122-04127

$2.03

8

HOLDER

59671-38A00

$35.49

9

.BOLT This part replaces 07110-06208.

07130-06207

$2.88

10

CAP

09250-05008

$3.55
