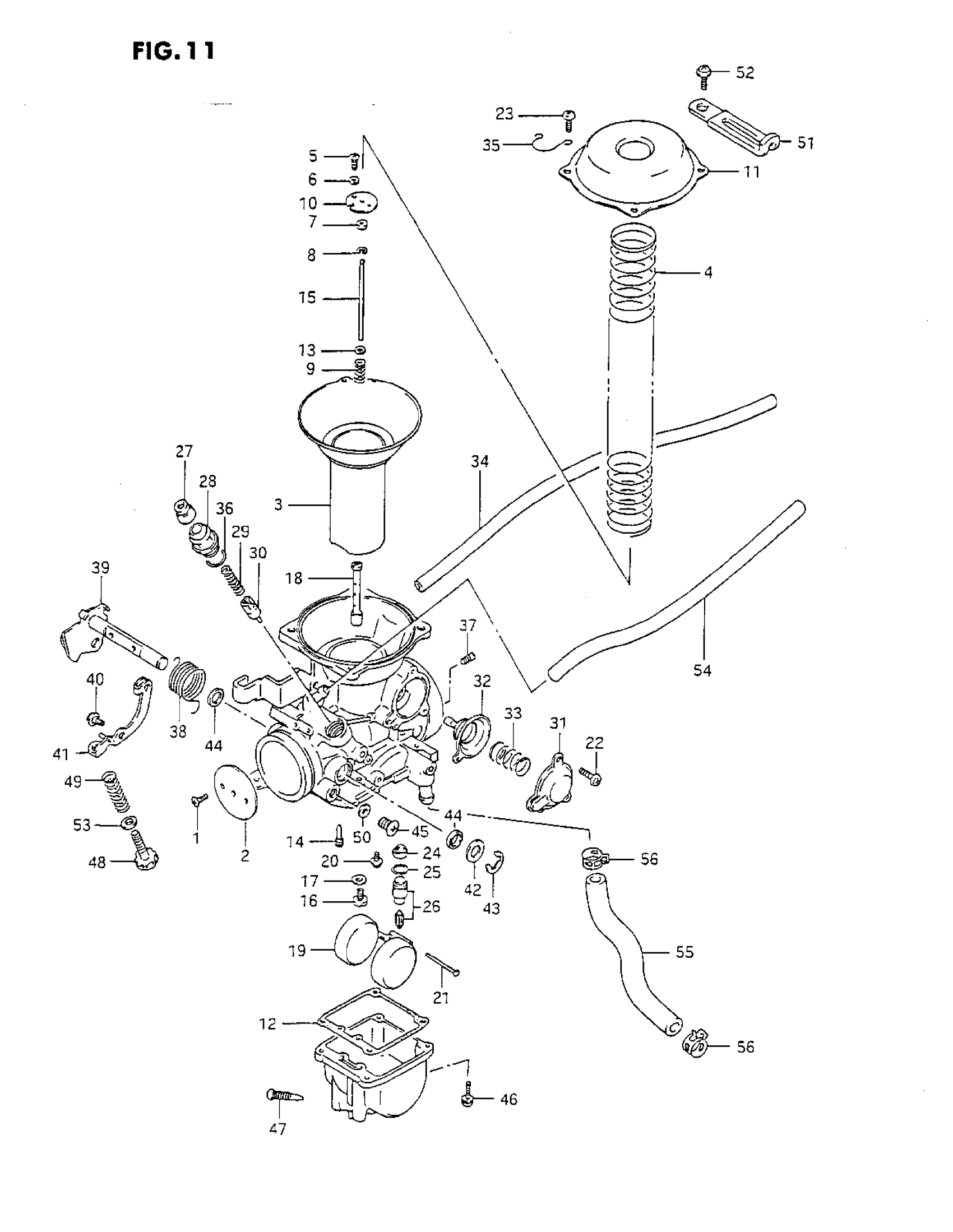

Suzuki VS800GL (1993) CARBURETOR (REAR) Diagram

#

Description
Price

1

SCREW

13604-44080

$2.92

2

VALVE, THROTTLE (125)

13551-05A10

Unavailable

3

DIAPHRAGM ASSY

13500-38A10

$167.50

4

SPRING

13503-38B00

$10.69

5

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

6

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

7

RING This part replaces 13387-38210.

13387-47010

$7.22

8

E RING

13394-10010

$5.45

9

SPRING

13388-44030

$8.12

10

PLATE

13389-37400

$7.08

11

COVER

13502-45C00

Unavailable

12

GASKET

13251-38A10

$7.69

13

WASHER

13382-44030

$3.71

14

JET, PILOT (45)

09492-45016

$9.69

15

NEEDLE, JET (5D35-1)

13383-38B00

$18.43

16

JET, MAIN (132.5)

09491-26012

$11.18

17

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

18

JET, NEEDLE (P-7)

09494-00689

Unavailable

19

FLOAT

13252-23010

$20.65

20

SCREW

13602-05A10

$3.56

21

PIN

13254-92311

$2.07

22

SCREW This part replaces 13602-38A10.

02112-04107

$1.55

23

SCREW This part replaces 02112-04086.

02112-0408A

$1.49

24

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

25

O RING This part replaces 13374-44080.

13374-35C00

$5.99

26

VALVE ASSY, NEEDLE

13370-39A00

$60.40

27

.CAP This part replaces 13681-04010.

13681-04011

$4.93

28

HOLDER, GUIDE

13418-43410

$7.22

29

SPRING

13417-22010

$3.56

30

PLUNGER ASSY

13411-01400

$13.30

31

COVER

13484-38A10

$22.22

32

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

33

SPRING This part replaces 13481-05A10.

13481-45C10

$5.55

34

HOSE,5X10X600 This part replaces 13684-38A20.

44421-13ER0

$10.06

35

CLIP

13692-02500

$7.17

36

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

37

JET, PILOT AIR (65)

09492-65005

$11.38

38

SPRING

13573-38B10

Unavailable

39

SHAFT ASSY

13550-38A10

Unavailable

40

SCREW

13602-05A30

$4.35

41

LEVER ASSY This part replaces 13554-38B00.

13554-45C20

$41.63

42

WASHER

13557-47070

$3.59

43

E RING

13617-44080

$2.90

44

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

45

SCREW This part replaces 02112-05066.

02112-0506B

$1.84

46

SCREW

13601-04148

$2.81

47

SCREW, DRAIN This part replaces 13247-38B00.

13247-02340

$4.99

48

ADJUSTER This part replaces 13267-38A10.

13267-39E50

$14.20

49

SPRING

13271-93011

$5.32

50

WASHER

13523-46110

$2.70

51

CLAMP(L:80) This part replaces 13671-05A20.

09404-06036

$1.74

52

SCREW This part replaces 13602-38A20.

02142-0408B

$1.70

53

WASHER | <-13432-37100

13277-37100

$2.15

54

HOSE (5X8X430) | CALIFORNIA ONLY L:430->150 This part replaces 13683-38B00.

13683-38B01

$34.98

55

HOSE, FUEL (PUMP & CARB) This part replaces 13683-38A01.

13683-38E01

$18.02

56

CLAMP This part replaces 09401-13408.

09401-13417

$2.26
