1993 Suzuki VS800GL Carburetor Diagram

← All diagrams

Find the part on the Carburetor diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

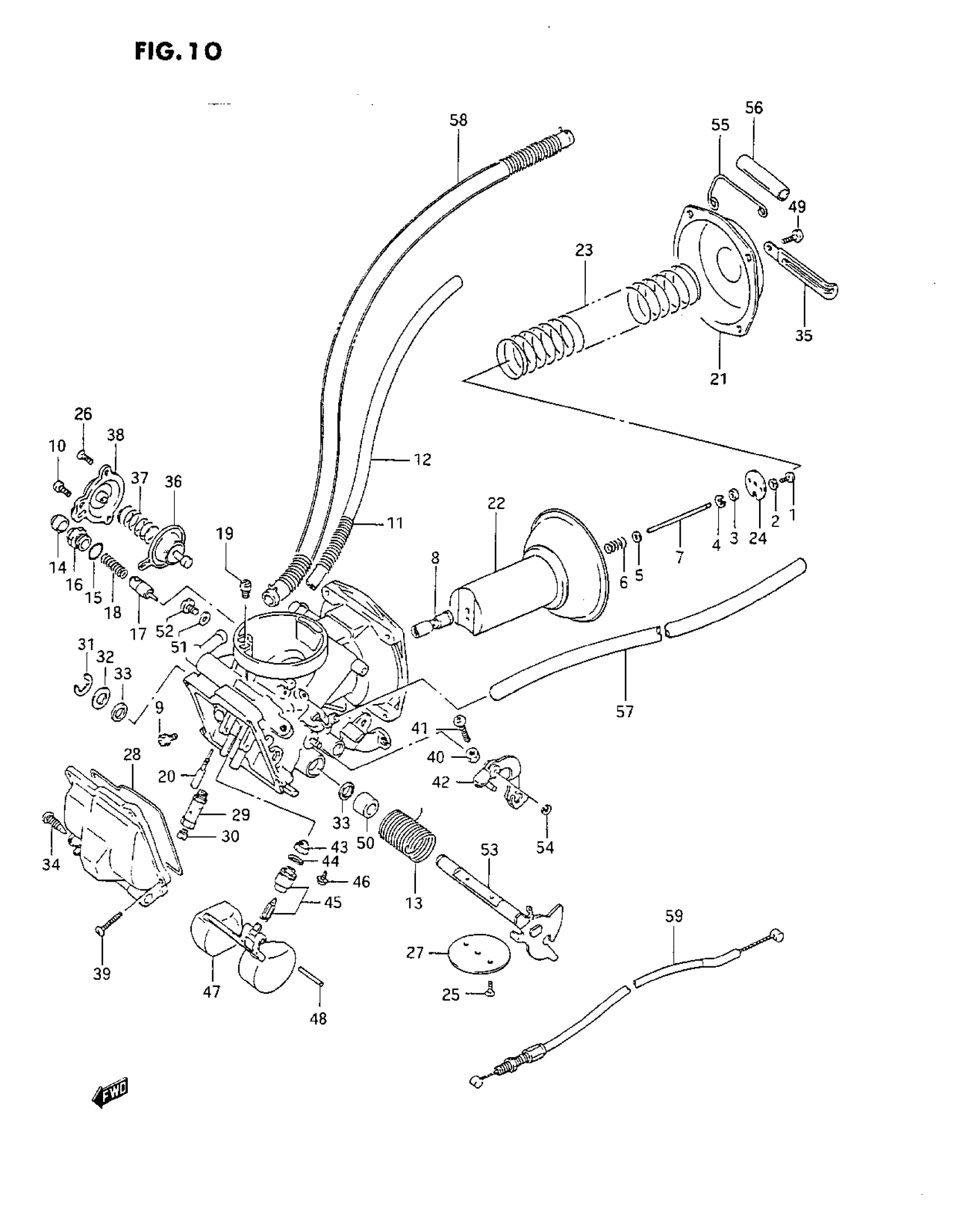

1993 Suzuki VS800GL Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CARBURETOR ASSY, FRONT This part replaces 13210-38E10.

13210-38E11

1
Out of stock

1

CARBURETOR ASSY, FRONT | CALIFORNIA ONLY This part replaces 13210-38E50.

13210-38E51

1
Out of stock

1

SCREW This part replaces 02112-03066.

02112-0306B

2
Out of stock

2

LOCK WASHER This part replaces 08321-21036.

08321-2103B

2
Out of stock

3

RING

13387-47010

1

$7.41

In stock

4

E RING

13394-10010

1

$4.76

In stock

5

WASHER

13382-44030

1

$3.81

In stock

6

SPRING

13388-44030

1

$9.17

In stock

7

NEEDLE, JET (5D47-1)

13383-45C20

1
Out of stock

8

JET, NEEDLE (P-2)

09494-00588

1
Out of stock

9

SCREW

13605-38B00

1
Out of stock

10

SCREW This part replaces 02112-04106.

02112-0410A

2
Out of stock

11

SPRING

13689-38A00

1
Out of stock

12

HOSE,5X10X600 | L:225->185 This part replaces 13684-38A20.

44421-13ER0

1
Out of stock

13

SPRING

13573-38B00

1
Out of stock

14

.CAP This part replaces 13681-04010.

13681-04011

1
Out of stock

15

1

$2.01

In stock

16

HOLDER, GUIDE

13418-38A00

1
Out of stock

17

PLUNGER ASSY

13411-01400

1

$13.27

In stock

18

SPRING

13417-08210

1
Out of stock

19

JET, PILOT AIR (65)

09492-65005

1
Out of stock

20

JET, PILOT (40)

09492-40021

1
Out of stock

21

COVER This part replaces 13502-45C10.

13502-38A00

1
Out of stock

22

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

1
Out of stock

23

SPRING

13503-38B00

1
Out of stock

24

PLATE

13389-37400

1

$7.98

In stock

25

SCREW

13604-44080

2
Out of stock

26

SCREW This part replaces 13603-38A00.

02122-0410A

1
Out of stock

27

VALVE, THROTTLE (110)

13551-38B00

1
Out of stock

28

O-RING

13251-38A00

1
Out of stock

29

HOLDER

13385-05A11

1
Out of stock

30

JET, MAIN (127.5)

09491-25018

1
Out of stock

31

E RING

13617-44080

1
Out of stock

32

WASHER

13557-47070

1
Out of stock

33

SEAL This part replaces 13556-05A10.

13556-05A11

2
Out of stock

35

CLAMP This part replaces 09404-06401.

09404-06039

1
Out of stock

36

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

1
Out of stock

37

SPRING

13481-45C10

1
Out of stock

38

COVER

13484-38A00

1
Out of stock

39

SCREW

13601-04148

4
Out of stock

40

NUT This part replaces 13607-05A10.

08310-00047

1
Out of stock

41

SCREW This part replaces 02112-04306.

02112-0430B

1
Out of stock

42

LEVER ASSY

13554-38A00

1
Out of stock

43

1

$10.26

In stock

44

1

$5.97

In stock

45

VALVE ASSY, NEEDLE

13370-39A00

1
Out of stock

46

SCREW

13602-05A10

1

$3.55

In stock

47

FLOAT

13250-38B00

1
Out of stock

48

PIN, FLOAT

13254-20010

1
Out of stock

49

SCREW This part replaces 13602-05129.

02112-05127

4
Out of stock

50

RING

13574-45C00

1
Out of stock

51

WASHER

13523-46110

1
Out of stock

52

SCREW This part replaces 02112-05066.

02112-0506B

1
Out of stock

53

SHAFT ASSY, THROTTLE

13550-38A00

1
Out of stock

54

1

$2.03

In stock

55

CLIP

13671-38A00

1
Out of stock

56

HOSE(6X10X600) This part replaces 13684-38A00.

09352-60104-600

1
Out of stock

57

HOSE (5X8X430) | CALIFORNIA ONLY This part replaces 13683-38B00.

13683-38B01

1
Out of stock

58

HOSE ASSY, FUEL This part replaces 13683-38A10.

13683-38A21

1
Out of stock

59

CABLE, ID SYNCRO This part replaces 13641-38A00.

13641-38A01

1
Out of stock

59

CARBURETOR ASSY, REAR

13220-38E10

1
Out of stock

59

CARBURETOR ASSY, REAR | CALIFORNIA ONLY This part replaces 13220-38E50.

13220-38E52

1
Out of stock
