1993 Suzuki VS800GL AIR Cleaner Diagram

← All diagrams

Find the part on the AIR Cleaner diagram for your 1993 Suzuki VS800GL, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

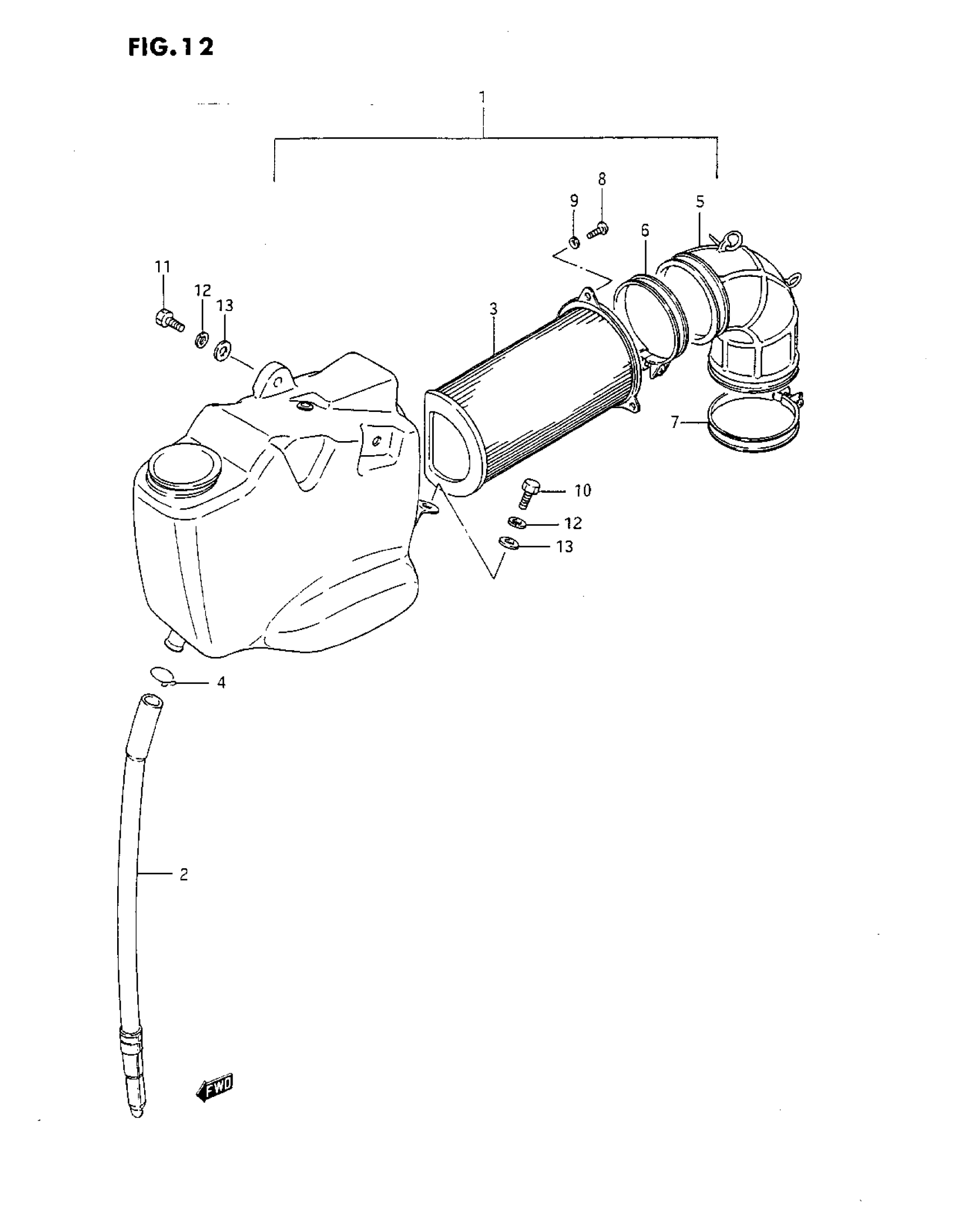

1993 Suzuki VS800GL AIR Cleaner Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CLEANER ASSY, AIR FRONT | MODEL N This part replaces 13700-38A00.

13700-38A01

1
Out of stock

1

CLEANER ASSY, AIR FRONT | MODEL P/R

13700-38A01

1
Out of stock

2

TUBE,DRAIN This part replaces 13870-11413.

13870-11459

1
Out of stock

3

FILTER ASSY | MODEL N This part replaces 13780-38A00.

13780-38A01

1
Out of stock

3

FILTER ASSY | MODEL P/R

13780-38A01

1
Out of stock

4

CLIP This part replaces 13824-00A00.

09401-13409

1
Out of stock

5

TUBE, OUTLET

13881-38A00

1
Out of stock

6

CLAMP This part replaces 09402-56208.

09402-56901

1
Out of stock

7

CLAMP This part replaces 09402-58207.

09402-58208

1
Out of stock

8

3

$1.15

In stock

9

LOCK WASHER This part replaces 08321-21045.

08321-0104A

3
Out of stock

10

2

$2.10

In stock

11

BOLT This part replaces 01107-06207.

01500-06207

1
Out of stock

12

3

$2.28

In stock

13

WASHER This part replaces 08322-21067.

08322-01067

3
Out of stock
