Description

Price

1

CHAIN, CAM SHAFT DRIVE This part replaces 12760-38A10.

12760-38A11

$192.30

2

GUIDE, CAM CHAIN

12771-38A02

$63.30

3

TENSIONER, CAM CHAIN FRONT

12811-38A01

$63.30

4

BOLT

09100-06129

$2.38

5

WASHER

08211-06182

$1.92

6

SPACER

09180-06148

Unavailable

7

ADJUSTER ASSY, TENSIONER FRONT This part replaces 12831-38A00.

12831-38A01

$150.35

8

BOLT, FRONT BRG HOUSING | MODEL N/P This part replaces 07110-06205.

07130-0620B

$3.05

8

BOLT, FRONT BRG HOUSING | MODEL R This part replaces 07130-06203.

07130-0620B

$3.05

9

BOLT | MODEL N/P This part replaces 07110-06455.

07130-0645B

$4.10

9

BOLT | MODEL R This part replaces 07130-06453.

07130-0645B

$4.10

10

TENSIONER, CAM CHAIN REAR

12816-38A01

$60.97

11

ADJUSTER ASSY, TENSIONER REAR This part replaces 12832-38A00.

12832-38A01

$156.07

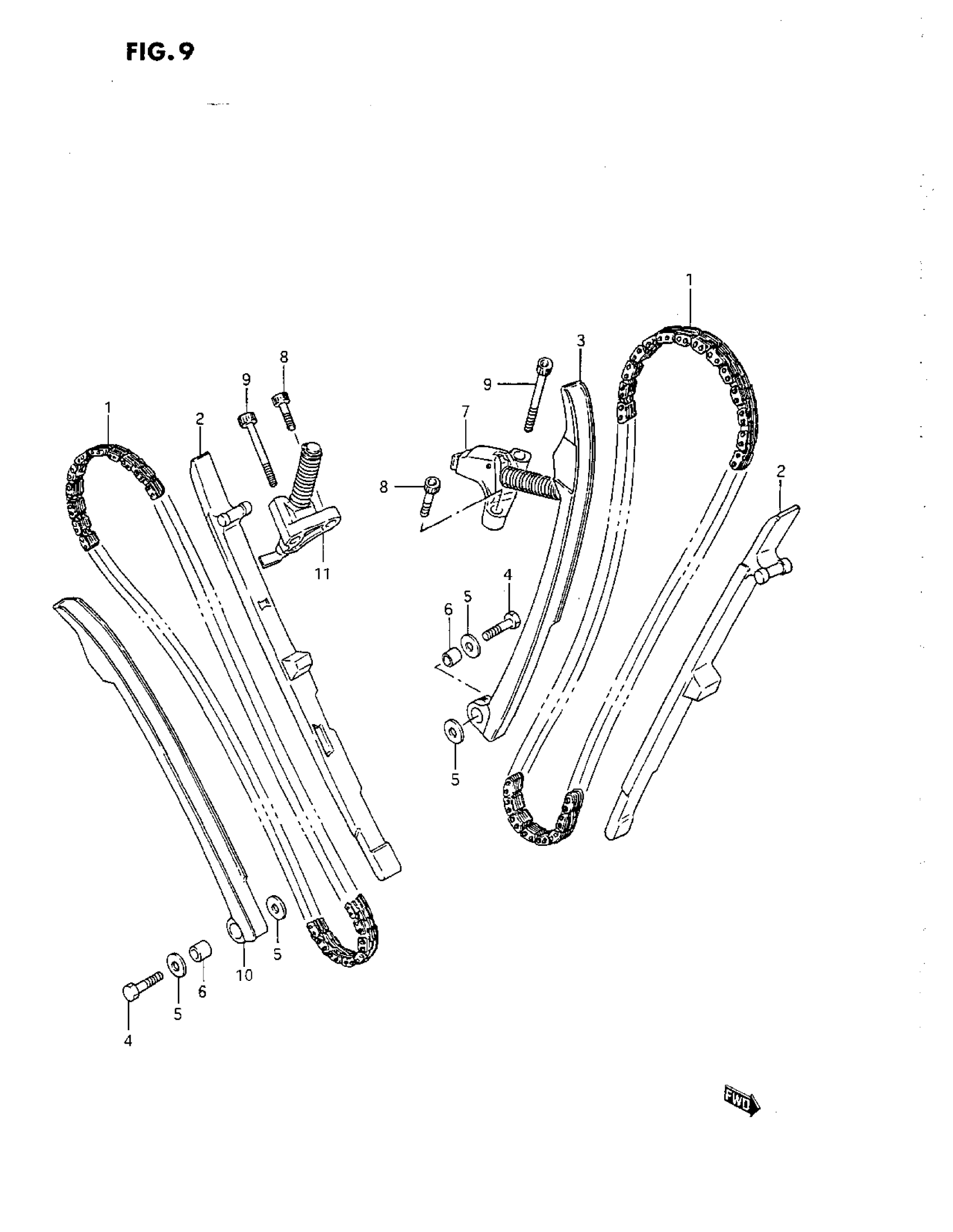

Suzuki VS800GL (1993) CAM CHAIN Diagram
