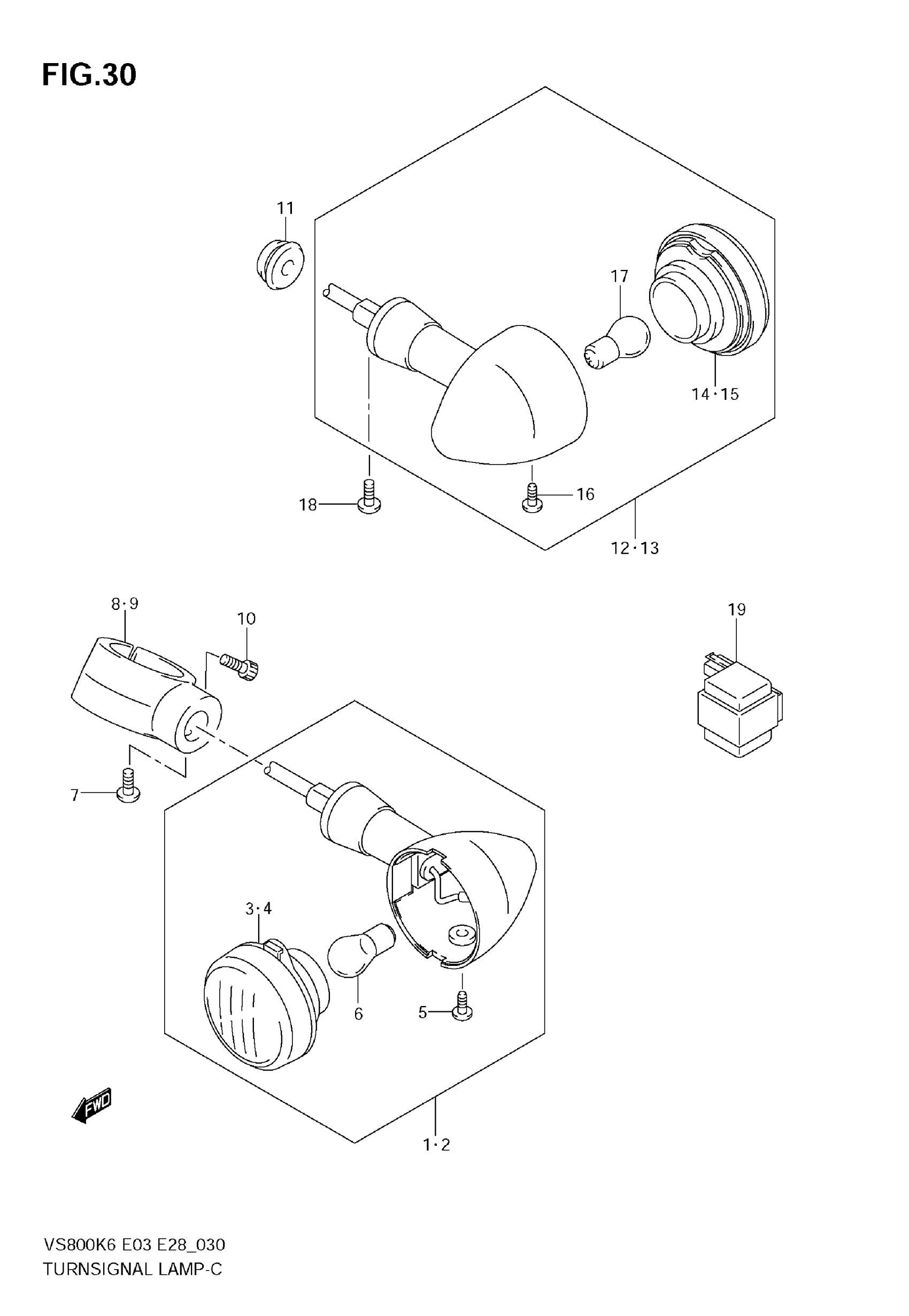

Suzuki VS800 (2009) TURN SIGNAL LAMP Diagram

#

Description
Price

1

LAMP ASSY, FR TURNSIGNAL, RH

35601-38AC0

$140.17

2

LAMP ASSY, FR TURNSIGNAL, LH | Includes Item(s) 3 - 6

35602-38AC0

$135.57

3

LENS | FOR RH

35610-38AA0

$31.91

4

LENS | FOR LH

35630-38AA0

$31.91

5

SCREW

35623-38AA0

$5.11

6

BULB (12V,21/5W) This part replaces 09471-12083.

09471-12128

$6.73

7

SCREW

02142-06107

Unavailable

8

BRACKET, RH

35671-39A00

Unavailable

9

BRACKET, LH

35681-39A00

$79.62

10

BOLT

07130-06167

$3.16

11

GROMMET, REAR TURN

09308-05005

$3.00

12

LAMP ASSY, RR TURNSIGNAL, RH

35603-38AA0

$114.67

13

LAMP ASSY, RR TURNSIGNAL, LH | Includes Item(s) 14 - 17

35604-38AA0

$114.67

14

LENS | FOR RH

35630-38AE1

$31.91

15

LENS | FOR LH

35610-38AE1

$31.91

16

SCREW

35623-38AA0

$5.11

17

BULB (12V,21W)

09471-12045

$3.27

18

SCREW

02142-06107

Unavailable

19

RELAY ASSY This part replaces 38610-26E00.

38610-26E01

$58.97
