Description

Price

1

BRACKET, UNDER | Includes Item(s) 2

51410-39A21

Unavailable

2

RT 30X55X17 BEA This part replaces 09265-30009.

09265-30034

$57.05

3

BOLT, LOWER

07130-10307

$4.41

4

BEARING, UPPER (25X47X15)

09265-25019

$56.53

5

DUST SEAL

51643-49002

$12.32

6

NUT, STEERING STEM

51631-28000

$17.37

7

BRACKET, UPPER

51311-39A00

Unavailable

8

NUT

51353-24B00

$30.67

9

WASHER

51356-24B01

$5.38

10

STAY, HANDLE

56231-39A40

$113.27

11

HOLDER, HANDLE LOWER

56221-39A40

Unavailable

12

BOLT

07130-10257

$4.60

13

HOLDER, HANDLE UPPER

56211-38B70

Unavailable

14

BOLT | MODEL K6

07130-08307

$3.89

14

BOLT | MODEL K7/K8/K9 This part replaces 51321-10F00.

07130-08307

$3.89

15

CAP

09250-06009

$3.42

16

CUSHION, HANDLE STAY UPPER

56240-38A42

$52.73

17

CUSHION, HANDLE STAY LOWER

56242-39A12

$46.22

18

WASHER

51354-38A40

$8.07

19

NUT

09159-10027

$3.10

20

LOCK ASSY,STEER This part replaces 51900-38810.

51900-309V0

$87.06

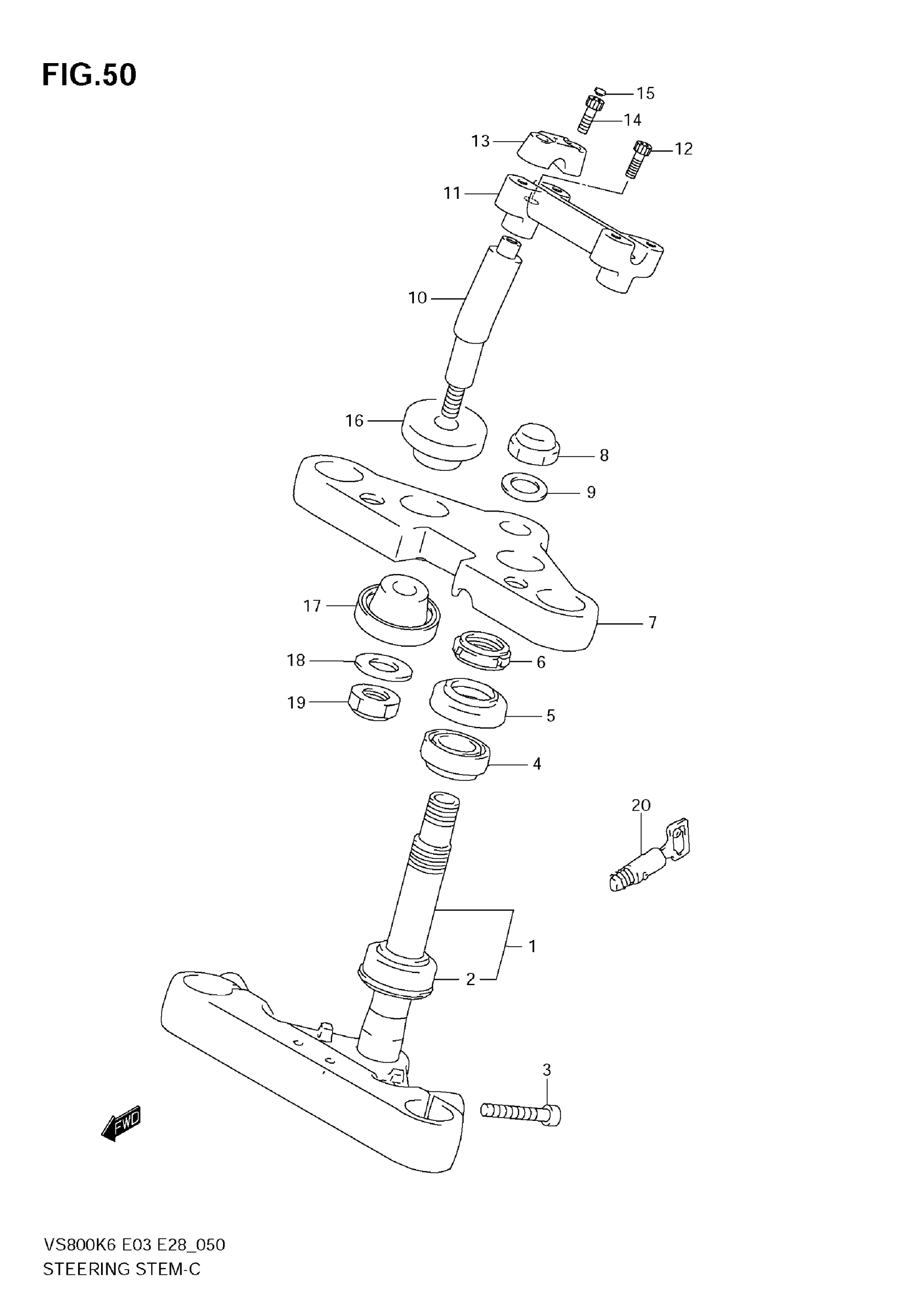

Suzuki VS800 (2009) STEERING STEM Diagram

BRACKET, UNDER | Includes Item(s) 2

RT 30X55X17 BEA This part replaces 09265-30009.

BOLT, LOWER

BEARING, UPPER (25X47X15)

DUST SEAL

NUT, STEERING STEM

BRACKET, UPPER

NUT

WASHER

STAY, HANDLE

HOLDER, HANDLE LOWER

BOLT

HOLDER, HANDLE UPPER

BOLT | MODEL K6

BOLT | MODEL K7/K8/K9 This part replaces 51321-10F00.

CAP

CUSHION, HANDLE STAY UPPER

CUSHION, HANDLE STAY LOWER

WASHER

NUT

LOCK ASSY,STEER This part replaces 51900-38810.
