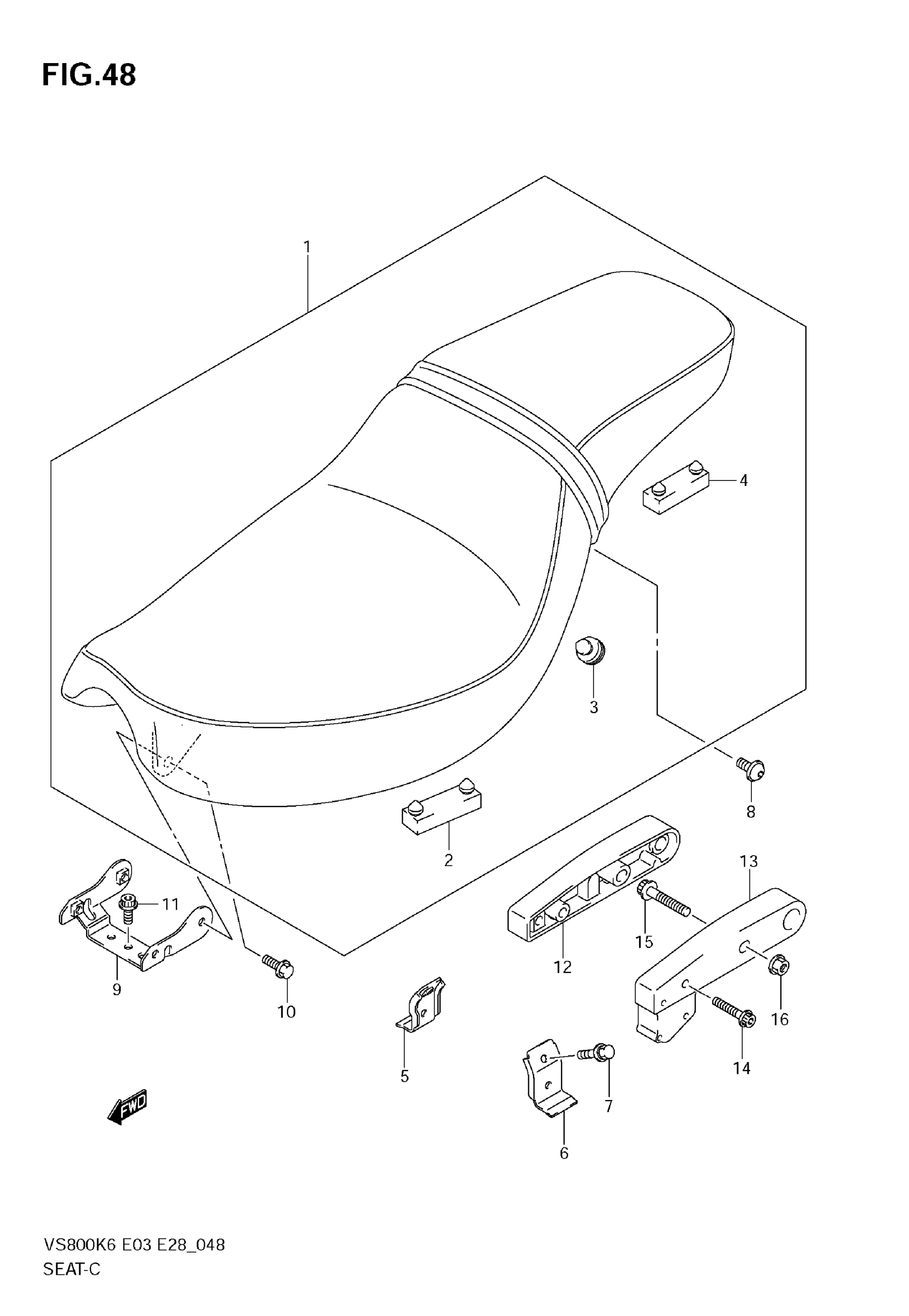

Suzuki VS800 (2009) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 4

45100-38AA0-HW9

Unavailable

2

CUSHION

45149-43500

$6.85

3

CUSHION

09321-10002

$2.22

4

CUSHION

09321-08009

$3.05

5

BRACKET, SEAT CTR R

45116-38AA0

Unavailable

6

BRACKET, SEAT CTR L

45117-38AA0

Unavailable

7

BOLT, SEAT CTR BRACKET

01580-06167

$3.33

8

SCREW, SEAT CTR

09106-06117

$5.10

9

BRACKET, SEAT FRONT

45210-38A03

$31.70

10

BOLT (6X16)

09113-06001

$2.73

11

BOLT (6X16)

07120-0616B

$2.45

12

HANDLE, PILLION RIDER RH

46212-38A41

Unavailable

13

HANDLE, PILLION RIDER LH

46213-38A41

Unavailable

14

BOLT, FRONT (6X35)

01580-0635B

$4.00

15

BOLT, REAR (8X45)

01580-0845B

$4.68

16

NUT, REAR

08316-1008B

$2.66
