2009 Suzuki VS800 Rear Swinging Arm Diagram

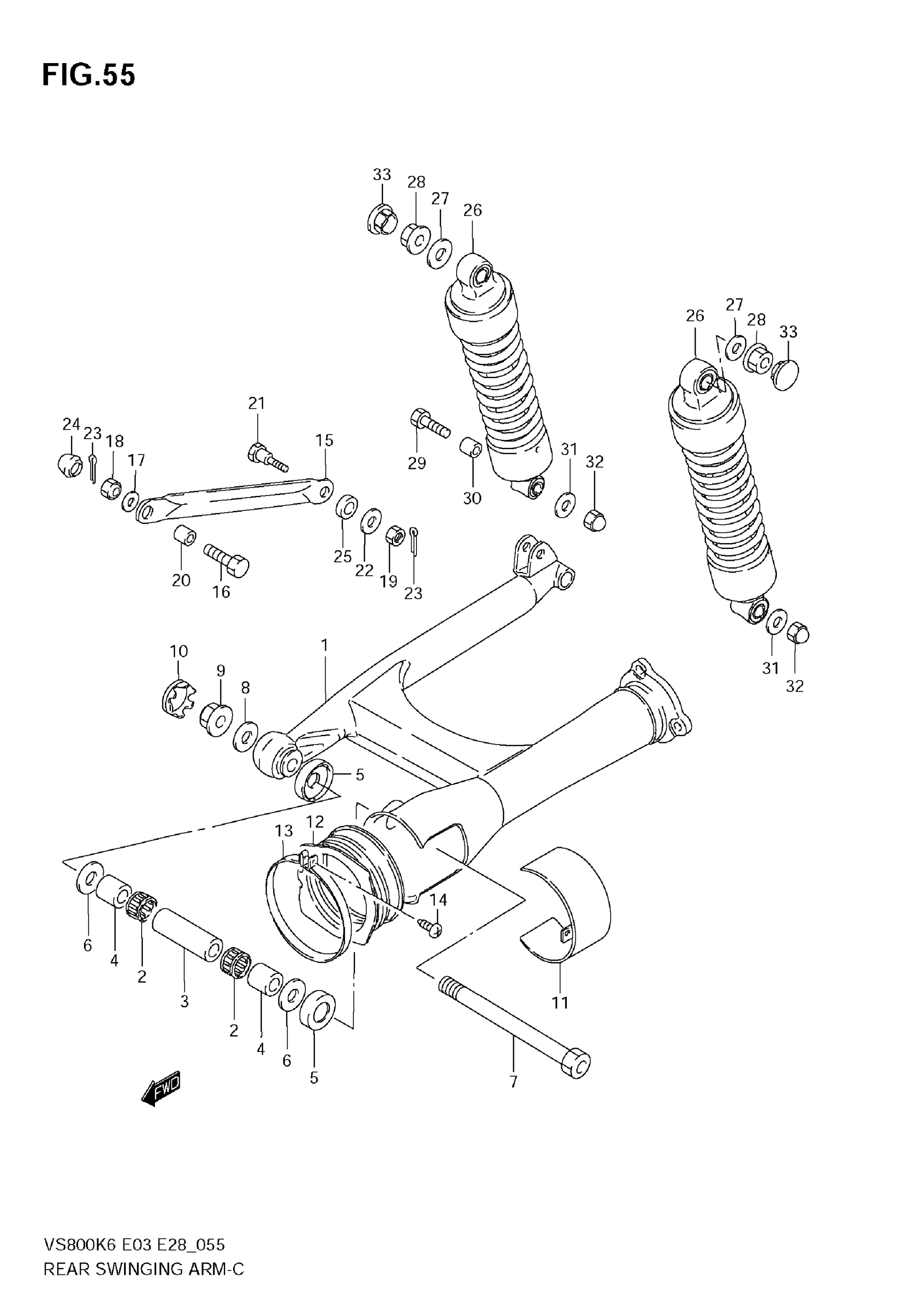

Find the part on the Rear Swinging Arm diagram for your 2009 Suzuki VS800, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.
#
1
SWINGING ARM, REAR (BLACK)
61100-38E01-YAY
1
SWINGING ARM, REAR (SILVER) | MODEL K6
61100-38E01-YDV
1
SWINGING ARM, REAR (RED) | MODEL K6
61100-38E01-YHL
1
SWINGING ARM, REAR (WHITE) | MODEL K7
61100-38E01-YC3
1
SWINGING ARM, REAR (SILVER) | MODEL K8
61100-38E01-YMD
1
SWINGING ARM, REAR (BLUE) | MODEL K9
61100-38E01-YRB
7
SHAFT, PIVOT
61211-38E00
9
NUT
08319-2116A
11
CAP, LH (BLACK)
61232-38A00-YAY
11
CAP, LH (SILVER) | MODEL K6
61232-38A00-YDV
11
CAP, LH (RED) | MODEL K6
61232-38A00-YHL
11
CAP, LH (WHITE) | MODEL K7
61232-38A00-YC3
11
CAP, LH (SILVER) | MODEL K8
61232-38A00-YMD
11
CAP, LH (BLUE) | MODEL K9
61232-38A00-YRB
15
TORQUE LINK, REAR (BLACK)
64310-38A13-019
16
BOLT, FRONT (10X28)
09101-10037
19
NUT, REAR
08310-0010B
23
COTTER PIN
04111-1615A
27
WASHER, UPPER (10.5X20X2.3)
09160-10123
28
NUT
08316-1010B
