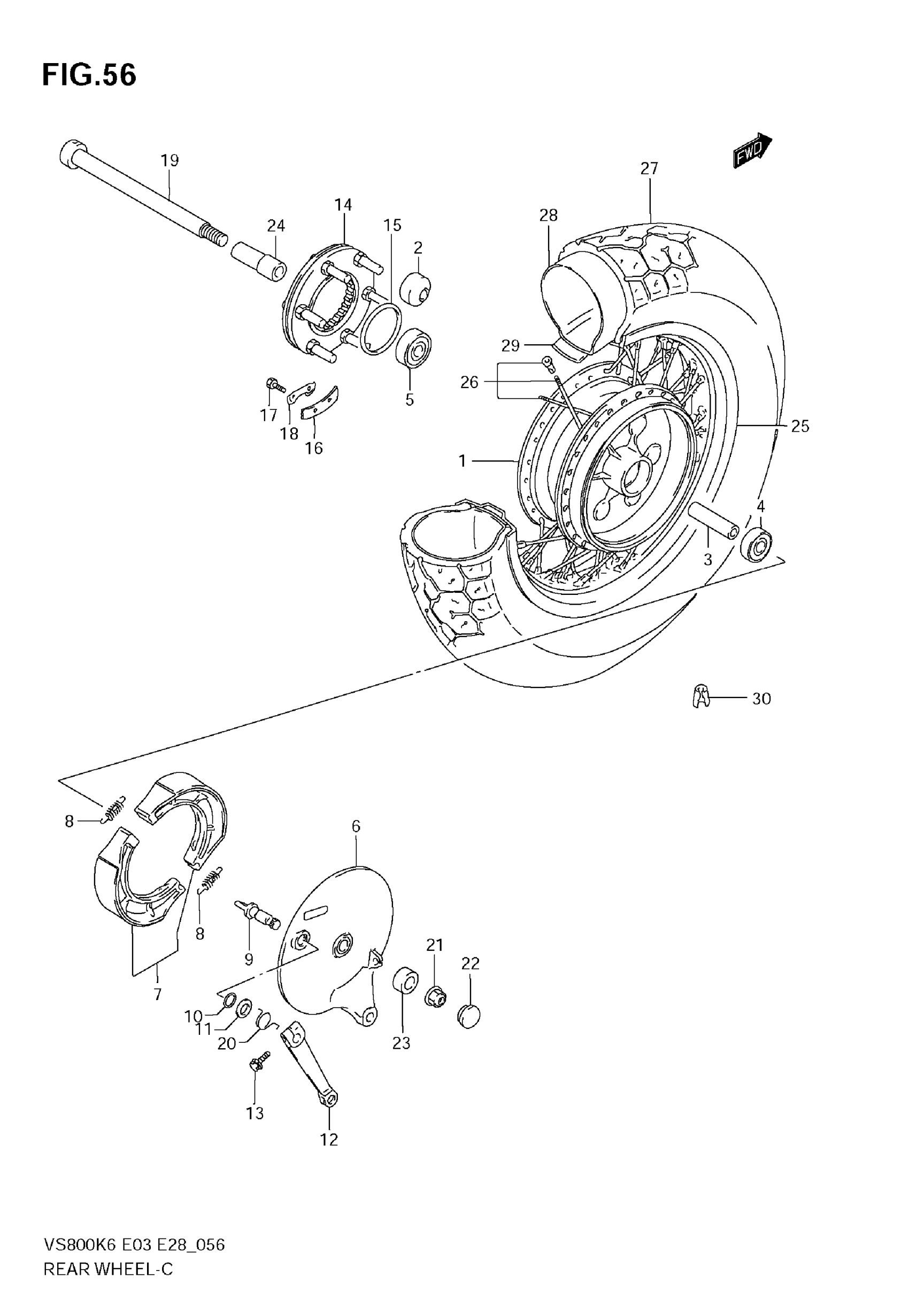

Suzuki VS800 (2009) REAR WHEEL Diagram

#

Description
Price

1

HUB SET, REAR WHEEL | Includes Item(s) 2

64100-07861

Unavailable

2

BUSHING (12X41X34)

09319-12019

$12.00

3

SPACER, REAR HUB (17.5X25X80)

09180-17091

Unavailable

4

BEARING This part replaces 08133-62037.

08133-6203B

$15.88

5

BEARING, LH

08143-63037

$20.38

6

PANEL, REAR BRAKE ANCHOR

64210-38A21

$301.13

7

SHOE SET, BRAKE

64400-38810

$60.67

8

SPRING, SHOE

55420-30000

$4.22

9

CAM, BRAKE

64441-38A20

$34.70

10

O RING (ID:14.8,D:2.40)

09280-15003

$1.77

11

WASHER

09160-15048

$2.58

12

LEVER, BRAKE CAM

64451-38A01

$64.65

13

BOLT

01570-06257

$3.30

14

JOINT, HUB DRIVEN

64680-45113

$306.47

15

O RING (ID:65,D:2.40)

09280-65003

$4.03

16

WASHER, THRUST

64677-45110

$3.80

17

BOLT (6X16)

09119-06049

$1.63

18

WASHER

09169-06030

$3.42

19

AXLE, REAR (L:302)

64711-38A11

Unavailable

20

SPRING, CAM

09448-33006

$10.03

21

NUT

08319-3114A

$8.84

22

CAP, RH

64791-38B00

$24.98

23

SPACER, RH

64751-46D00

Unavailable

24

SPACER, LH

64772-34201

$26.03

25

RIM, WHEEL (MT3.00X15 M/C)

65311-38A02

Unavailable

26

SPOKE SET, REAR WHEEL

65320-38A02

Unavailable

27

TIRE, REAR (140/90-15 M/C 70H) (BRIDGESTONE) This part replaces 65110-38AA0.

65110-38A70

Unavailable

28

TUBE, WHEEL INNER

65200-38A70

$68.65

29

PROTECTOR,WHEEL This part replaces 65261-38A70.

65261-38A71

$7.77

30

BALANCER WHEEL (15G)

55411-26G00

$8.73

30

BALANCER WHEEL (30G)

55413-41F00

$9.95
