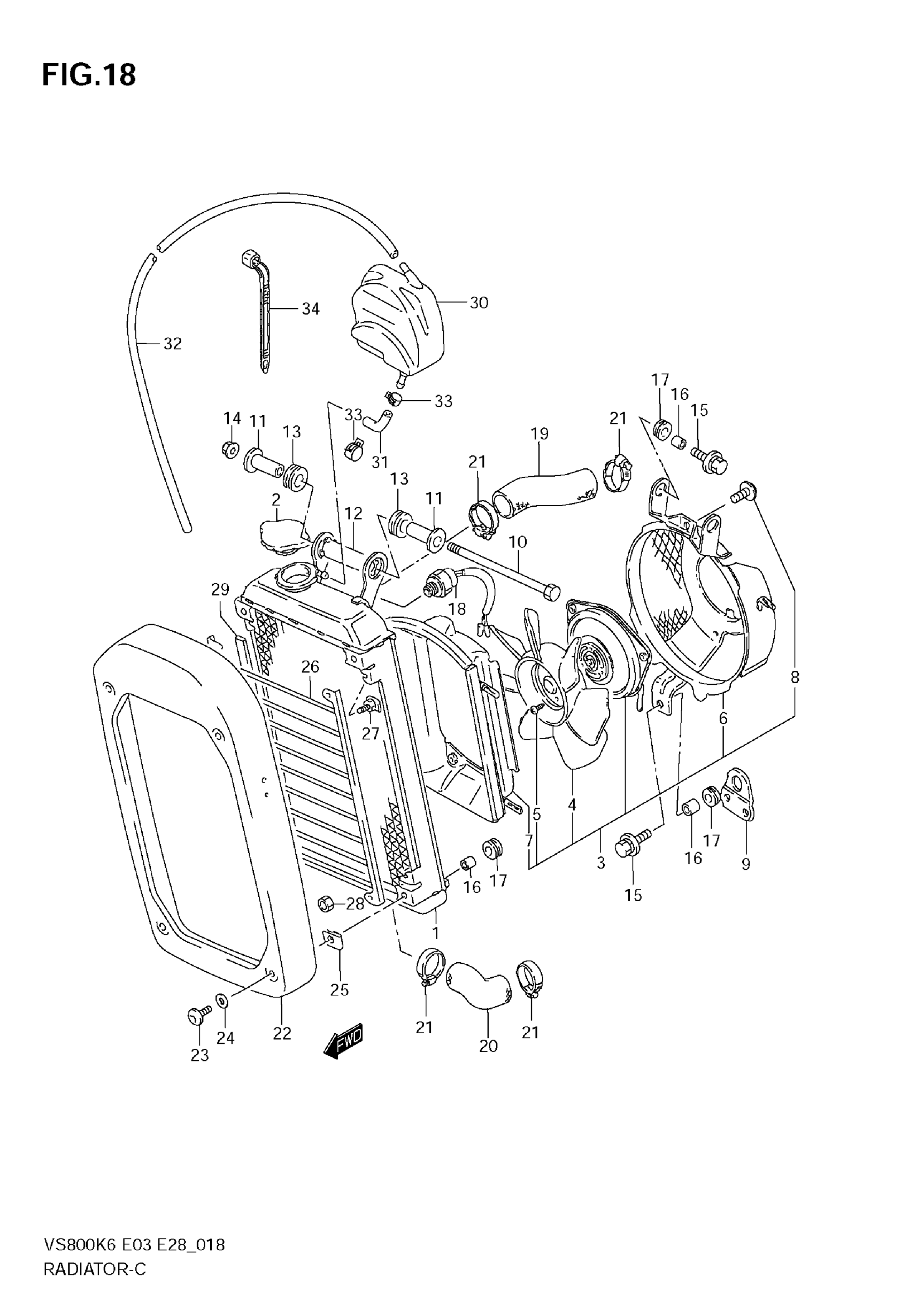

Suzuki VS800 (2009) RADIATOR Diagram

#

Description
Price

1

RADIATOR

17710-39A00

Unavailable

2

CAP, RADIATOR This part replaces 17730-12C20.

17730-08J00

$42.50

3

FAN ASSY | Includes Item(s) 4 - 8

17800-38A03

Unavailable

4

FAN

17820-38A00

Unavailable

5

SCREW This part replaces 02112-04063.

02112-0406B

$1.55

6

SHROUD

17770-39A00

Unavailable

7

DUCT, FAN

17150-38A00

Unavailable

8

SCREW This part replaces 02112-75103.

02112-7510A

Unavailable

9

BRACKET, RADIATOR FAN

17808-38A00

Unavailable

10

BOLT (10X135)

09100-10277

Unavailable

11

SPACER

17782-38A01

Unavailable

12

SPACER

17783-38A00

Unavailable

13

CUSHION

09320-15008

$3.89

14

NUT

08319-3110B

$3.87

15

BOLT

09116-06213

$3.15

16

SPACER

09180-06261

$1.91

17

CUSHION

09320-08037

$3.72

18

SWITCH, RADIATOR FAN

17680-24A02

$97.09

19

HOSE, RADIATOR IN

17851-39A00

$17.82

20

HOSE, RADIATOR OUT

17858-38820

$14.76

21

CLAMP

09402-32511

$10.86

22

COVER, RADIATOR (RED) | MODEL K6

17761-39A01-YHL

Unavailable

22

COVER, RADIATOR (SILVER) | MODEL K6

17761-39A01-YDV

Unavailable

22

COVER, RADIATOR (BLACK) | MODEL K6/K7/K8/K9

17761-39A01-YAY

Unavailable

22

COVER, RADIATOR (WHITE) | MODEL K7

17761-39A01-YC3

Unavailable

22

COVER, RADITOR (SILVER) | MODEL K8

17761-39A01-YMD

Unavailable

22

COVER, RADITOR (BLUE) | MODEL K9

17761-39A01-YRB

Unavailable

22

COVER SET, RADIATOR (CHROME) | OPT INCLUDED NO.22.23.24.26

17700-39810

Unavailable

23

SCREW (6X10)

09139-06076

$2.42

24

WASHER (6.5X14X2.0)

09160-06126

$1.91

25

NUT, RADIATOR COVER

09148-06015

$3.04

26

BUMPER, RADIATOR

17790-39A00

Unavailable

27

BOLT (5X8)

09119-05014

Unavailable

28

NUT This part replaces 08310-0005B.

08310-0005A

$1.84

29

CUSHION, RADIATOR BUMPER

17795-38A00

Unavailable

30

TANK, RESERVE

17911-38A00

Unavailable

31

HOSE, INLET

17981-38A01

$7.37

32

HOSE, OUTLET

17982-38810

$17.37

33

CLIP

09401-08411

$1.78

34

CLAMP

09407-14403

$2.26
