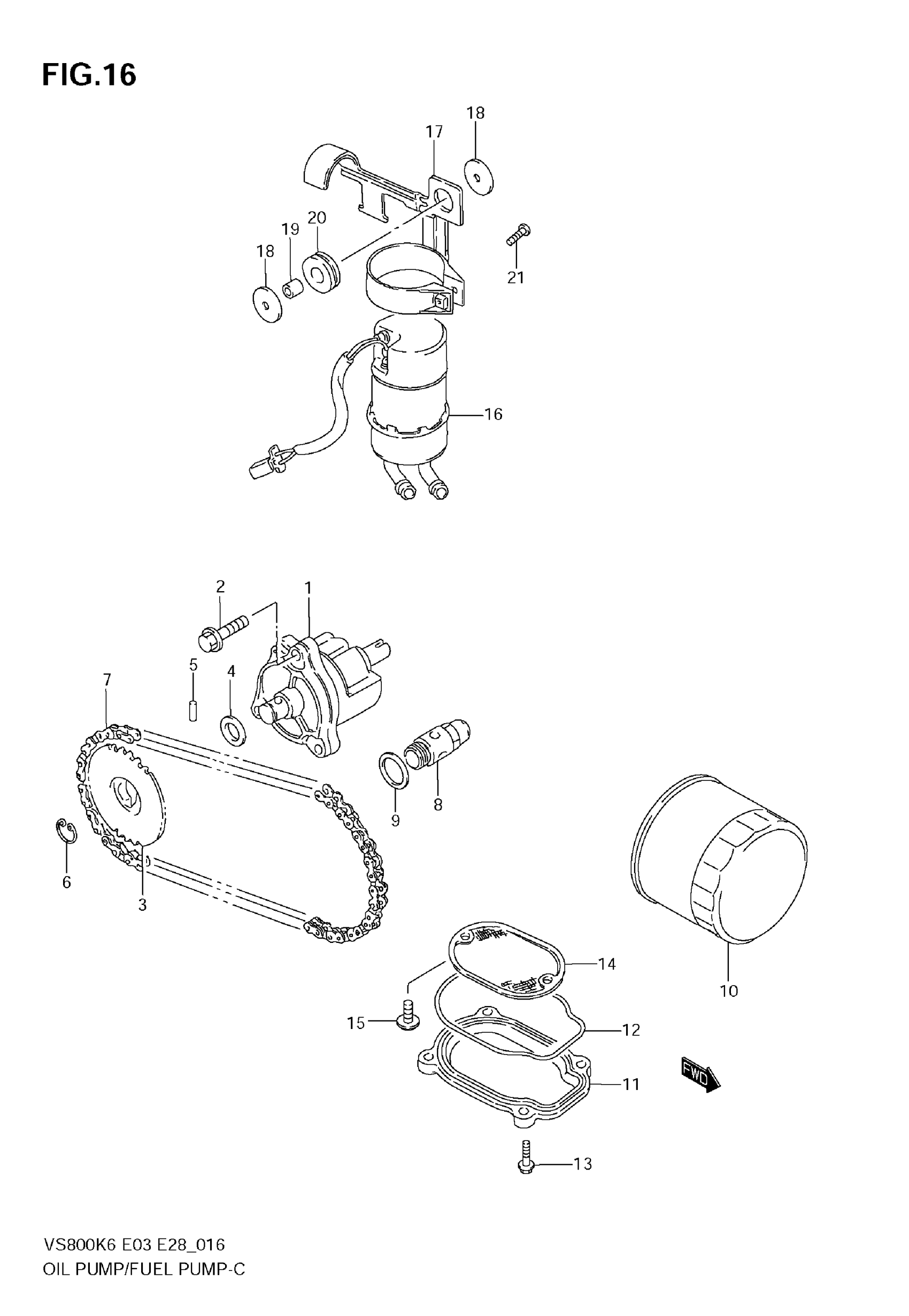

Suzuki VS800 (2009) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38A01

$224.88

2

BOLT

01550-0625B

$2.42

3

SPROCKET, OIL PUMP DRIVEN

16331-38A10

Unavailable

4

WASHER

09181-12158

$2.26

5

PIN

09261-05006

$1.49

6

CIRCLIP This part replaces 08331-31126.

08331-3112A

$1.78

7

CHAIN, OIL PUMP DRIVE

16310-38A00

$33.93

8

VALVE ASSY,OIL RELIEF

16440-17C20

$63.47

9

GASKET

09168-16002

$1.91

10

FILTER, ENGINE OIL This part replaces 16510-03G00-X07.

16510-07J00

$13.10

11

CAP, OIL STRAINER

16523-38A00

$31.70

12

O RING

16528-38A00

$11.77

13

BOLT | MODEL K6 This part replaces 01550-06203.

01550-0620A

$1.97

13

BOLT | MODEL K7/K8/K9

01550-0620A

$1.97

14

STRAINER, OIL | MODEL K6/K7

16520-38A00

$8.12

14

STRAINER, OIL | MODEL K8/K9

16520-38A10

$8.60

15

SCREW | MODEL K6 This part replaces 02112-75123.

02112-7512A

$2.42

15

SCREW | MODEL K7/K8/K9

02112-7512A

$2.42

16

PUMP ASSY,FUEL This part replaces 15100-38A10.

15100-38A11

Unavailable

17

BRACKET, FUEL PUMP

15110-38A10

$15.42

18

WASHER

09169-06016

$1.65

19

SPACER

09180-06082

$2.18

20

CUSHION

09320-10014

$2.92

21

SCREW

02142-0420B

Unavailable
