Description

Price

1

STATOR

32101-45C00

$515.48

2

ROTOR

32102-38A30

Unavailable

3

SCREW

01547-0630B

$2.73

4

SCREW

02112-0510B

$2.08

5

BOLT (14X43)

09103-14001

$11.82

6

KEY

09420-04008

$3.42

7

CLAMP, NO.1

31497-45000

$1.92

8

CLAMP, NO.2

32371-38A10

Unavailable

9

SCREW, NO.1, 2

02112-0510B

$2.08

10

CLAMP, NO.3

32371-45C00

$4.58

11

BOLT, NO.3

01547-0610B

$2.45

12

CLAMP (L:80) This part replaces 09404-08419.

09404-08422

$2.65

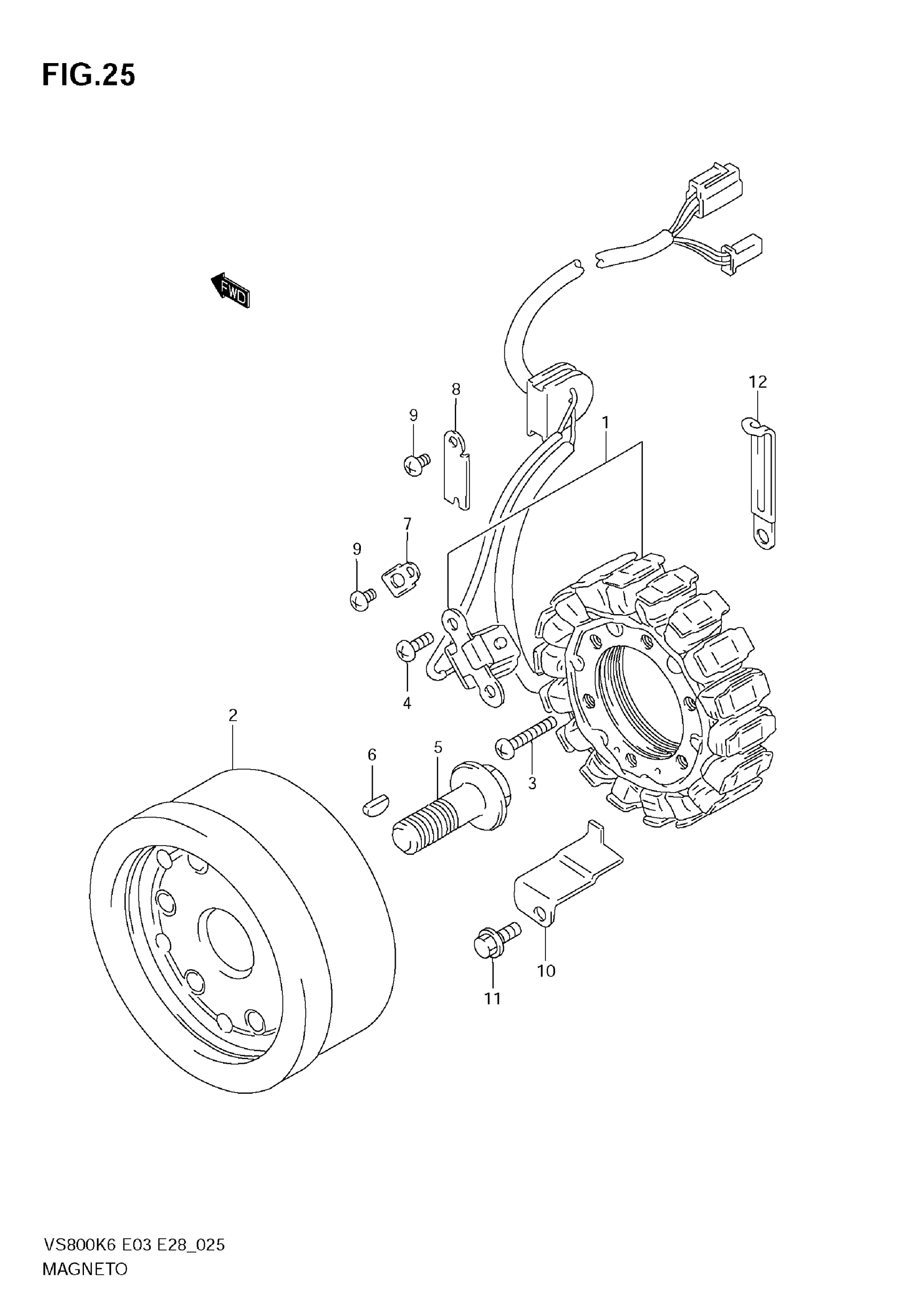

Suzuki VS800 (2009) MAGNETO Diagram

STATOR

ROTOR

SCREW

SCREW

BOLT (14X43)

KEY

CLAMP, NO.1

CLAMP, NO.2

SCREW, NO.1, 2

CLAMP, NO.3

BOLT, NO.3

CLAMP (L:80) This part replaces 09404-08419.
