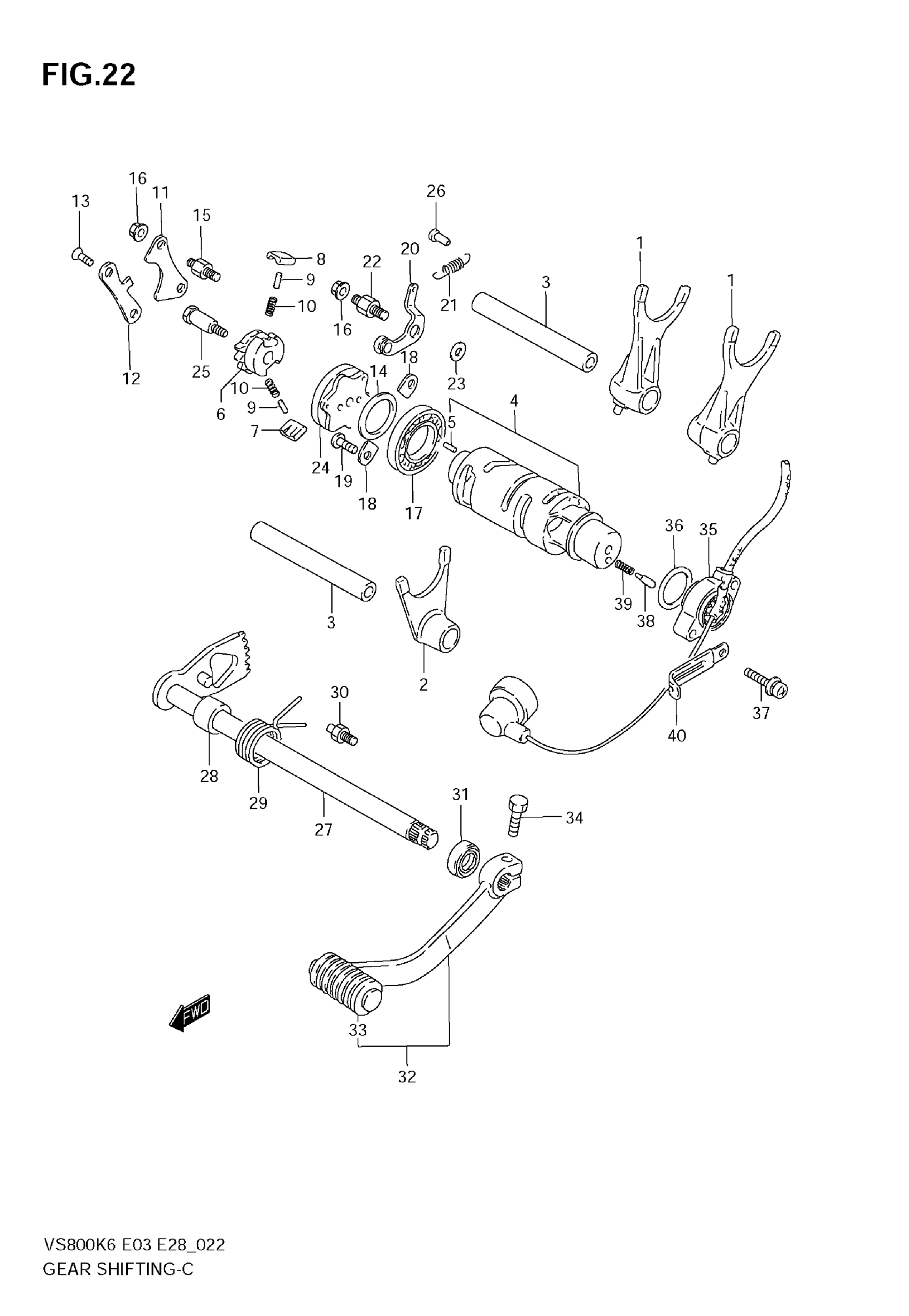

Suzuki VS800 (2009) GEAR SHIFTING Diagram

#

Description
Price

1

FORK, GEAR SHIFTING NO.1

25211-38A02

$70.63

2

FORK, GEAR SHIFTING NO.2

25221-38A01

Unavailable

3

SHAFT, GEAR SHIFTING FORK

25411-38A00

$29.25

4

CAM, GEAR SHIFTING | Includes Item(s) 5

25310-38A03

Unavailable

5

PIN (4X13.8)

04221-04089

$1.49

6

GEAR, GEAR SHIFT CAM DRIVEN

25322-31310

$26.93

7

PAWL, GEAR SHIFT NO.1

25323-34201

$7.22

8

PAWL, GEAR SHIFT NO.2

25324-34201

$7.22

9

PIN

09261-05003

$1.54

10

SPRING

09440-04003

$1.54

11

LIFTER, PAWL

25331-38A00

Unavailable

12

GUIDE, CAM

25341-38A00

Unavailable

13

SCREW (6X12)

09126-06011

$2.03

14

WASHER (25X32X3)

09160-25059

$6.63

15

BOSS

25332-38A10

Unavailable

16

NUT

08316-1006A

$2.19

17

BEARING (25X47X8)

09262-25006

$25.54

18

RETAINER, BEARING

24741-21A00

$2.81

19

SCREW (6X12)

09125-06110

$2.12

20

STOPPER, CAM

25350-38A00

Unavailable

21

SPRING

09443-09027

$3.93

22

SUPPORT

25355-38A10

Unavailable

23

WASHER

08211-06141

$1.59

24

PLATE, STOPPER

25380-38A02

$17.62

25

PIN

25312-38A00

$6.28

26

HOOK (4X12.5) | MODEL K6

09223-04001

$1.68

26

HOOK (4X13) | MODEL K7/K8/K9

09223-04004

Unavailable

27

SHAFT, GEAR SHIFTING

25510-38A00

$107.25

28

SPACER (12X20X15.3)

09180-12068

$3.16

29

SPRING

09444-26013

$3.10

30

STOPPER, ARM

25671-01011

$4.48

31

OIL SEAL (12X22X9) This part replaces 09285-12002.

09285-12006

$6.32

32

LEVER ASSY, GEAR SHIFTING | Includes Item(s) 33

25600-38A00

$51.51

33

COVER

25652-20C00

$5.44

34

BOLT

01500-0620A

$1.78

35

BODY, SWITCH

37720-38A40

$69.35

36

O RING (D:2.4,ID:26.2)

09280-26005

$2.30

37

SCREW

02112-7520A

$2.90

38

CONTACT, SWITCH

09209-05011

$2.20

39

SPRING

09440-04010

$1.54

40

CLAMP (L:45)

09404-06429

$1.83

40

CLAMP(L:80) This part replaces 09404-06433.

09404-06036

$1.74
