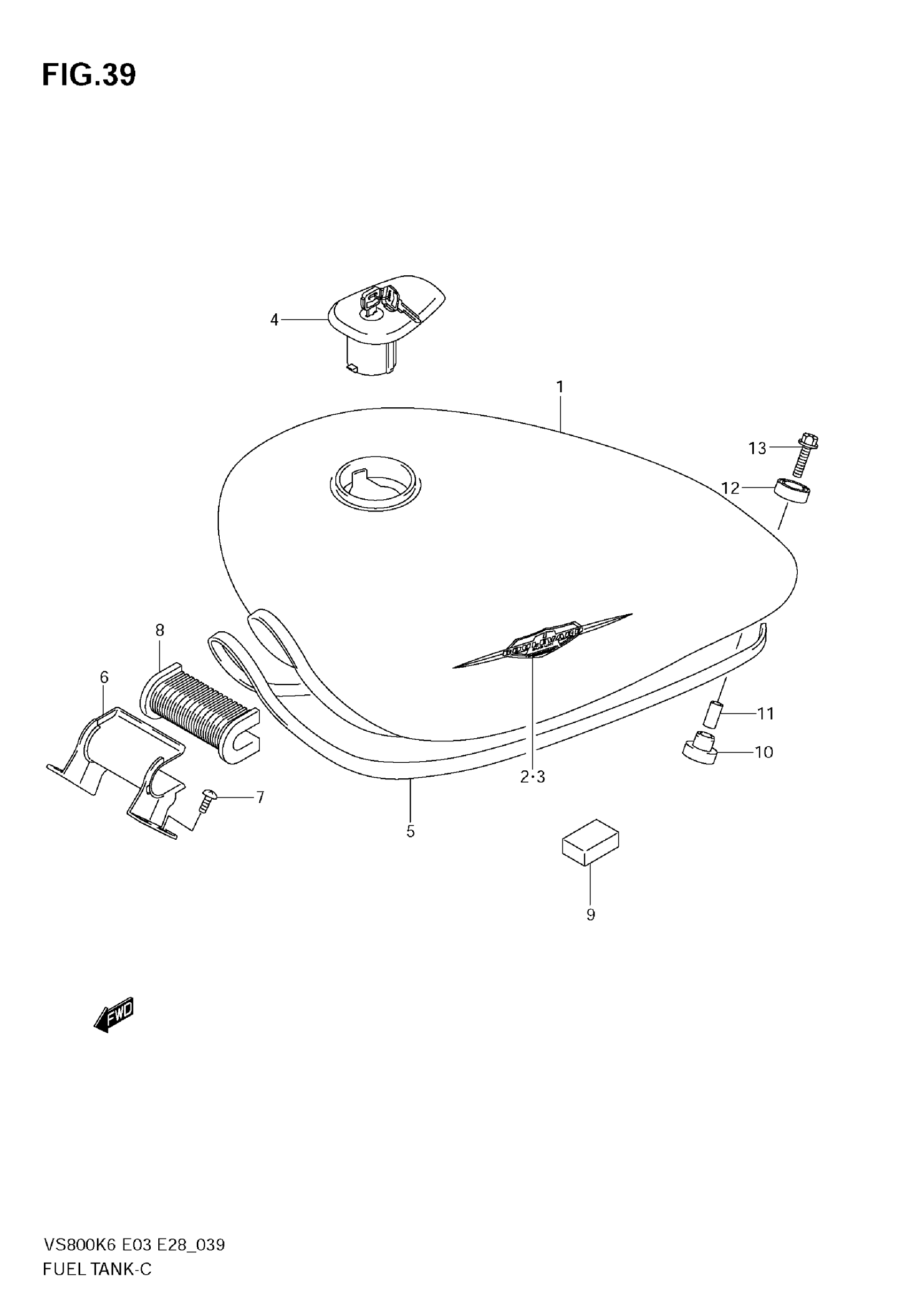

Suzuki VS800 (2009) FUEL TANK Diagram

#

Description
Price

1

TANK ASSY, FUEL (BLACK) | E3,E28

44100-39AE0-YAY

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K6 E3,E28

44100-39AE0-YDV

Unavailable

1

TANK ASSY, FUEL (RED) | MODEL K6 E3,E28

44100-39AE0-YHL

Unavailable

1

TANK ASSY, FUEL (WHITE) | MODEL K7 E3 E28

44100-39AE0-YC3

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K8 E3,E28

44100-39AE0-YMD

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K9 E3,E28

44100-39AE0-YRB

Unavailable

1

TANK ASSY, FUEL (BLACK) | E33

44100-39AF0-YAY

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K6 E33

44100-39AF0-YDV

Unavailable

1

TANK ASSY, FUEL (RED) | MODEL K6 E33

44100-39AF0-YHL

Unavailable

1

TANK ASSY, FUEL (WHITE) | MODEL K7 E33

44100-39AF0-YC3

Unavailable

1

TANK ASSY, FUEL (SILVER) | MODEL K8 E33

44100-39AF0-YMD

Unavailable

1

TANK ASSY, FUEL (BLUE) | MODEL K9 E33

44100-39AF0-YRB

Unavailable

2

EMBLEM, RH

68111-39A10

Unavailable

3

EMBLEM, LH

68121-39A10

Unavailable

4

CAP SET, FUEL TANK | E3,E28

44200-38820

$108.83

4

CAP SET,FUEL TA | E33 This part replaces 44200-38850.

44200-38852

$94.71

5

MOLDING, FUEL TANK

68241-04X50-00B

$27.30

6

BRACKET, FRONT (BLACK)

44250-38A10-019

Unavailable

7

SCREW, BRACKET

02112-7616B

Unavailable

8

CUSHION, FRONT

44511-38A01

$11.60

9

CUSHION, SIDE

56314-48B10

$7.75

10

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

11

SPACER

09180-06273

$3.05

12

CUSHION, REAR UPPER

09320-14013

$2.11

13

BOLT

09136-06095

$3.16
