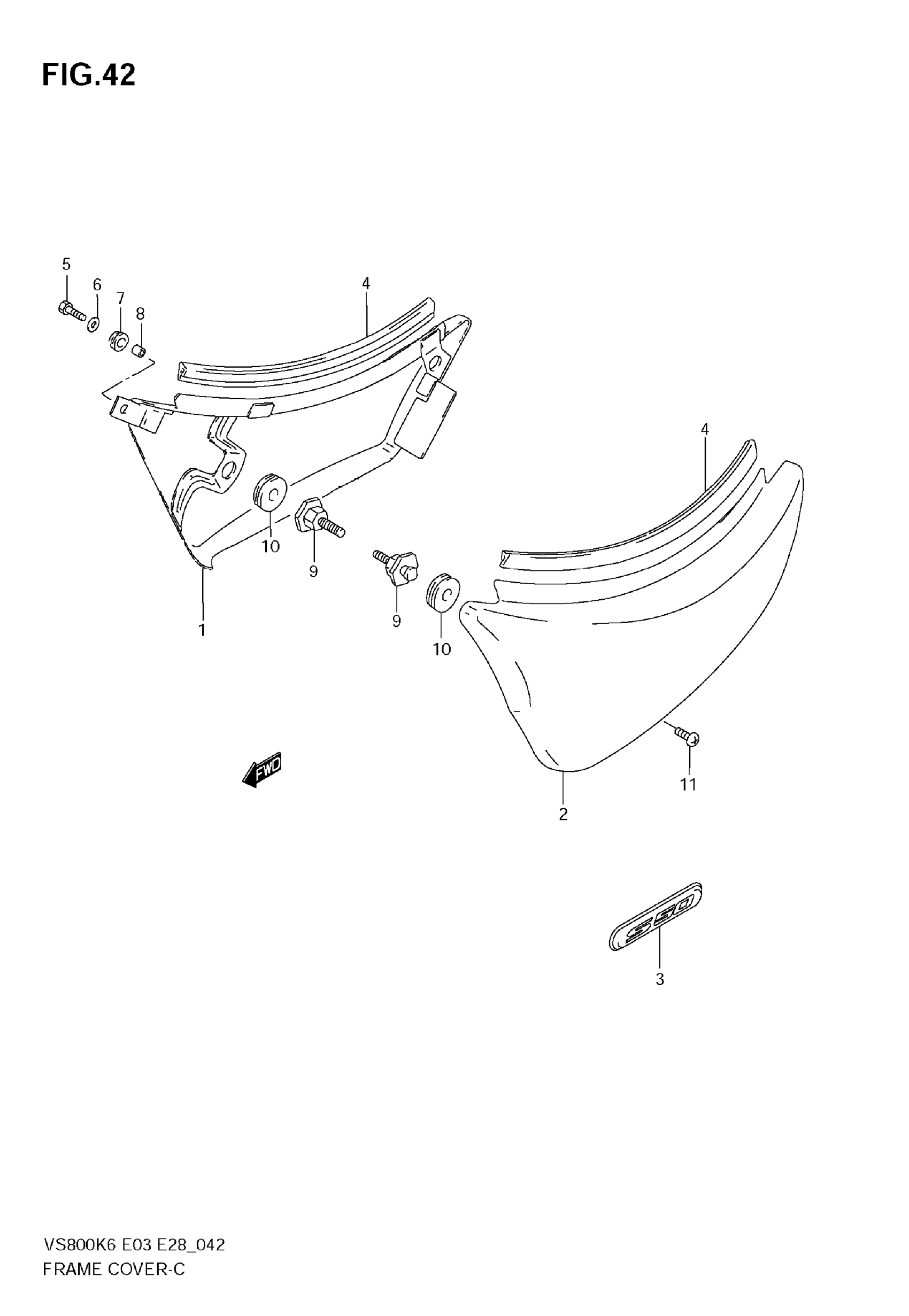

Suzuki VS800 (2009) FRAME COVER Diagram

#

Description
Price

1

COVER, FRAME RH (BLACK)

47100-39AA0-YAY

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K6

47100-39AA0-YDV

Unavailable

1

COVER ASSY,FRAM | MODEL K6 This part replaces 47100-39AA0-YHL.

47110-38A00-13L

$305.78

1

COVER, FRAME RH (WHITE) | MODEL K7

47100-39AA0-YC3

Unavailable

1

COVER, FRAME RH (SILVER) | MODEL K8

47100-39AA0-YMD

Unavailable

1

COVER, FRAME RH (BLUE) | MODEL K9

47100-39AA0-YRB

Unavailable

2

COVER ASSY,FRAM This part replaces 47200-39AA0-YAY.

47210-38A00-13L

$276.22

2

COVER ASSY,FRAM | MODEL K6 This part replaces 47200-39AA0-YDV.

47210-38A00-13L

$276.22

2

COVER ASSY,FRAM | MODEL K6 This part replaces 47200-39AA0-YHL.

47210-38A00-13L

$276.22

2

COVER, FRAME LH (WHITE) | MODEL K7

47200-39AA0-YC3

Unavailable

2

COVER, FRAME LH (SILVER) | MODEL K8

47200-39AA0-YMD

Unavailable

2

COVER, FRAME LH (BLUE) | MODEL K9; Includes Item(s) 3

47200-39AA0-YRB

Unavailable

3

EMBLEM

68131-39AA0

Unavailable

4

MOLDING

68241-04X50-300

$7.32

5

BOLT, RH

01550-06167

$2.30

6

WASHER

09160-06084

$1.78

7

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

8

SPACER

09180-06246

$2.12

9

BOSS, FRAME COVER

47250-38A01

$6.68

10

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

11

SCREW, LH

02142-0610B

$2.15
