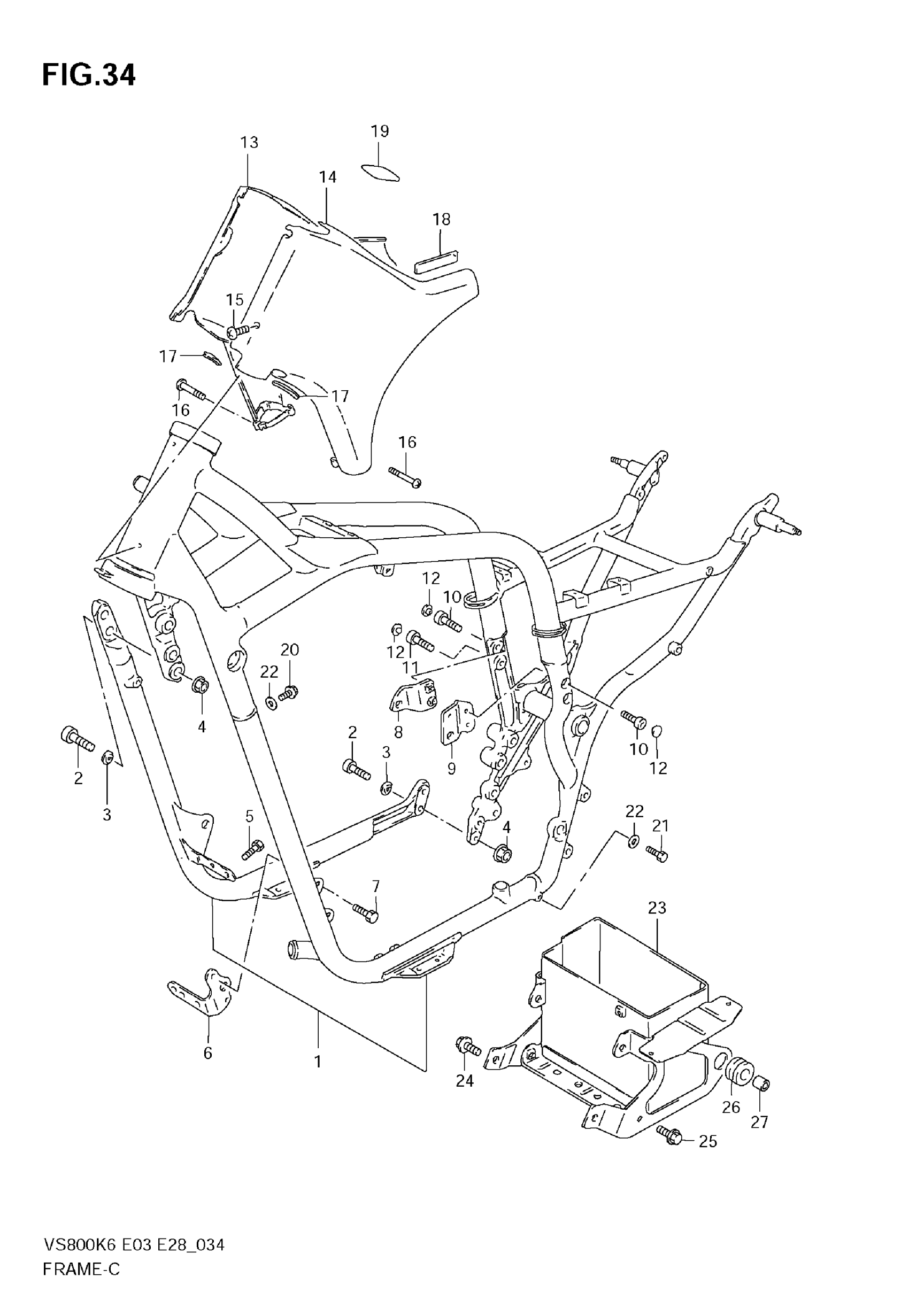

Suzuki VS800 (2009) FRAME Diagram

#

Description
Price

1

FRAME SET (BLACK)

41101-39813-YAY

Unavailable

1

FRAME SET (SILVER) | MODEL K6

41101-39813-YDV

Unavailable

1

FRAME SET (RED) | MODEL K6

41101-39813-YHL

Unavailable

1

FRAME SET (WHITE) | MODEL K7

41101-39813-YC3

Unavailable

1

FRAME SET (SILVER) | MODEL K8

41101-39813-YMD

Unavailable

1

FRAME SET (BLUE) | MODEL K9; Includes Item(s) 2 - 5

41101-39813-YRB

Unavailable

2

BOLT, REAR

09106-10019

$3.50

3

WASHER

09164-10010

$4.83

4

NUT

08319-3110B

$3.87

5

BOLT, FRONT

01551-0820B

$3.28

6

PLATE, NO.1 LH (BLACK)

41920-38A00-019

Unavailable

7

BOLT

07130-0816B

$4.25

8

PLATE, NO.1 RH (BLACK)

41950-38A11-019

Unavailable

9

PLATE, NO.3 LH (BLACK)

41960-38A10-019

Unavailable

10

BOLT, UPPER

09106-08070

$5.88

11

BOLT

07130-0830B

$4.85

12

CAP

09250-06004

$1.49

13

COVER, FRAME HEAD RH (BLACK)

47350-38A01-YAY

Unavailable

13

COVER, FRAME HEAD RH (SILVER) | MODEL K6

47350-38A01-YDV

Unavailable

13

COVER, FRAME HEAD RH (RED) | MODEL K6

47350-38A01-YHL

Unavailable

13

COVER, FRAME HEAD RH (WHITE) | MODEL K7

47350-38A01-YC3

Unavailable

13

COVER, FRAME HEAD RH (SILVER) | MODEL K8

47350-38A01-YMD

Unavailable

13

COVER, FRAME HEAD RH (BLUE) | MODEL K9

47350-38A01-YRB

Unavailable

14

COVER, FRAME HEAD LH (BLACK)

47360-38A01-YAY

Unavailable

14

COVER, FRAME HEAD LH (SILVER) | MODEL K6

47360-38A01-YDV

Unavailable

14

COVER, FRAME HEAD LH (RED) | MODEL K6

47360-38A01-YHL

Unavailable

14

COVER, FRAME HEAD LH (WHITE) | MODEL K7

47360-38A01-YC3

Unavailable

14

COVER, FRAME HEAD LH (SILVER) | MODEL K8

47360-38A01-YMD

Unavailable

14

COVER, FRAME HEAD LH (BLUE) | MODEL K9

47360-38A01-YRB

Unavailable

15

SCREW

09125-06117

Unavailable

16

SCREW

02112-0425B

$2.34

17

MOLDING, HEAD COVER

68241-04X50-300

$7.32

18

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

19

TAPE, FRAME HEAD COVER

47358-38A00

Unavailable

20

BOLT, AIR DUCT

17568-50F00

$4.76

21

BOLT, DRAIN

01550-0610B

$2.42

22

GASKET

09168-06026

$3.10

23

HOLDER, BATTERY

41540-38A12

$129.45

24

BOLT

01551-1016B

Unavailable

25

BOLT

01550-0616B

$2.48

26

CUSHION

09320-12031

$2.34

27

SPACER

09301-08009

$5.08
