Description

Price

1

RELAY, STARTING MOTOR

31800-15501

$97.79

2

BOLT

01550-0610B

$2.42

3

NUT

08361-3506A

$1.80

4

LEAD WIRE, STARTING MOTOR | Includes Item(s) 5

33850-38A00

$24.42

5

CAP, STARTER MOTOR

31861-48B10

$6.55

6

CAP, STARTER RELAY

31861-38A00

$7.87

7

RECTIFIER ASSY

32800-12E01

$320.45

8

SCREW

01500-0610B

$1.81

9

IGNITER UNIT

32900-38A31

Unavailable

10

SCREW

02142-0612B

$2.05

11

COIL, IGNITION (CORD L:300) | FOR REAR

33410-38A20

$163.57

12

COIL, IGNITION (CORD L:520) | FOR FRONT

33420-38A20

$163.57

13

SPACER (6.4X10X19)

09180-06144

$4.19

14

SCREW, IGNITION COIL | 5X38

09137-05008

Unavailable

15

WASHER

08322-0105B

$2.26

15

WASHER | E33

08322-0105B

$2.26

16

CAP, SPARK PLUG

33510-11410

$25.95

17

SEAL, SPARK PLUG

33541-38210

$4.68

18

SEAL,HIGH TENSION CORD (SIDE)

33542-38B00

$4.34

19

PLATE, IGNITER FITTING

32910-38A10

Unavailable

20

SCREW

02112-3612B

Unavailable

21

NUT

08316-2006B

Unavailable

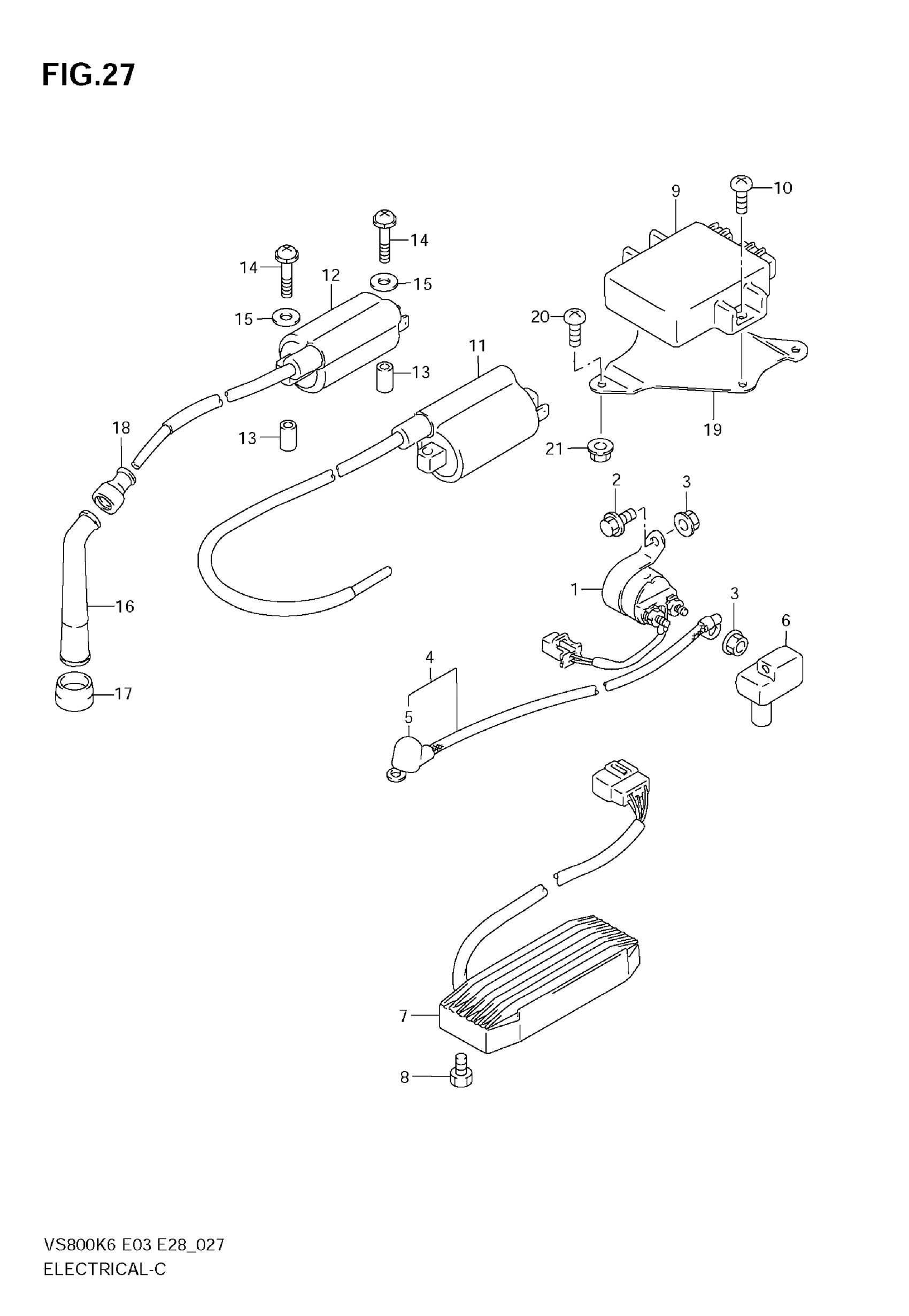

Suzuki VS800 (2009) ELECTRICAL Diagram

RELAY, STARTING MOTOR

BOLT

NUT

LEAD WIRE, STARTING MOTOR | Includes Item(s) 5

CAP, STARTER MOTOR

CAP, STARTER RELAY

RECTIFIER ASSY

SCREW

IGNITER UNIT

SCREW

COIL, IGNITION (CORD L:300) | FOR REAR

COIL, IGNITION (CORD L:520) | FOR FRONT

SPACER (6.4X10X19)

SCREW, IGNITION COIL | 5X38

WASHER

WASHER | E33

CAP, SPARK PLUG

SEAL, SPARK PLUG

SEAL,HIGH TENSION CORD (SIDE)

PLATE, IGNITER FITTING

SCREW

NUT
