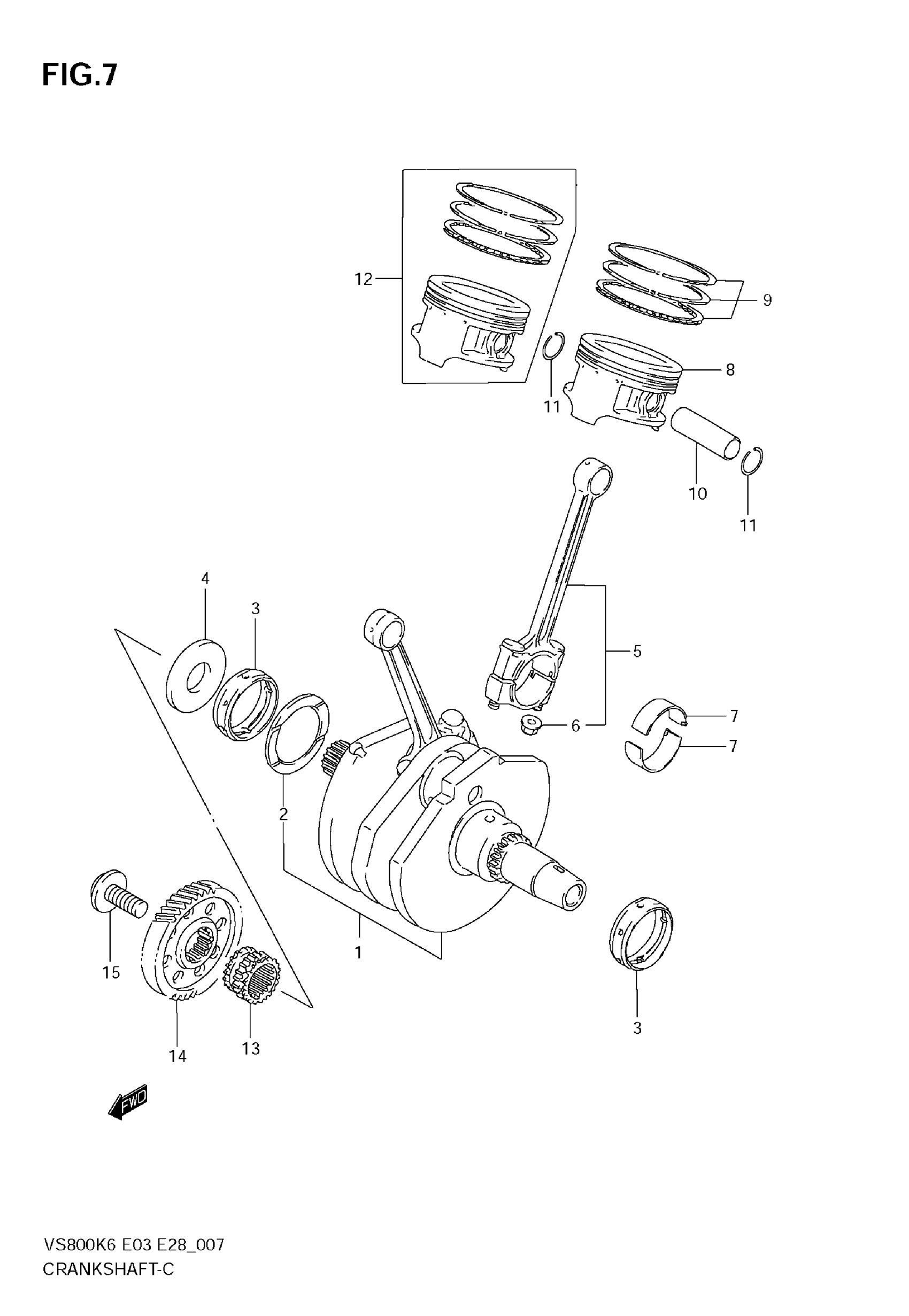

Suzuki VS800 (2009) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | Includes Item(s) 2 - 2

12000-38810

$1,672.38

2

WASHER, CRANK THRUST (NO.1)

09160-48001

Unavailable

2

WASHER, CRANK THRUST (NO.2)

09160-48002

Unavailable

2

WASHER, CRANK THRUST (NO.3)

09160-48003

Unavailable

2

WASHER, CRANK THRUST (NO.4)

09160-48004

Unavailable

2

WASHER, CRANK THRUST (NO.5)

09160-48005

Unavailable

2

WASHER, CRANK THRUST (NO.6)

09160-48006

$30.35

2

WASHER, CRANK THRUST (NO.7)

09160-48007

Unavailable

2

WASHER, CRANK THRUST (NO.8)

09160-48008

Unavailable

2

WASHER, CRANK THRUST (NO.9)

09160-48009

Unavailable

2

WASHER, CRANK THRUST (NO.10)

09160-48010

$30.35

3

BEARING, CRANKSHAFT | INC CRANKCASE SET

12229-38A00

$24.87

4

WASHER, CRANK THRUST

12652-38A00

$81.72

5

ROD ASSY, CONNECTING | MODEL K6/K7/K8 This part replaces 12160-45C10.

12160-45C30

$185.15

5

ROD ASSY, CONNECTING | MODEL K9; Includes Item(s) 6

12160-45C30

$185.15

6

NUT

09159-09001

$4.68

7

BEARING, CRANK PIN (GREEN)

12164-38E00-0A0

$13.77

7

BEARING, CRANK PIN (BLACK)

12164-38E00-0B0

$11.50

7

BEARING, CRANK PIN (BROWN)

12164-38E00-0C0

$11.50

7

BEARING, CRANK PIN (YELLOW)

12164-38E00-0D0

$14.02

7

BEARING, CRANK PIN (BLUE)

12164-38E00-0E0

$14.02

8

PISTON

12111-45C00-0F0

$163.57

9

RING SET, PISTON

12140-45C10

$43.70

10

PIN,PISTON

12151-24A00

$22.03

11

CIRCLIP

09381-20004

$1.65

12

PISTON SET (OS:0.5) | OPT

12100-45C00-050

$195.35

13

SPROCKET, CAM CHAIN DRIVE RH

12731-38A00

$59.07

14

GEAR, PRIMARY DRIVE | NT:42

21111-38A00

Unavailable

15

BOLT (12X28)

09103-12013

$8.83
