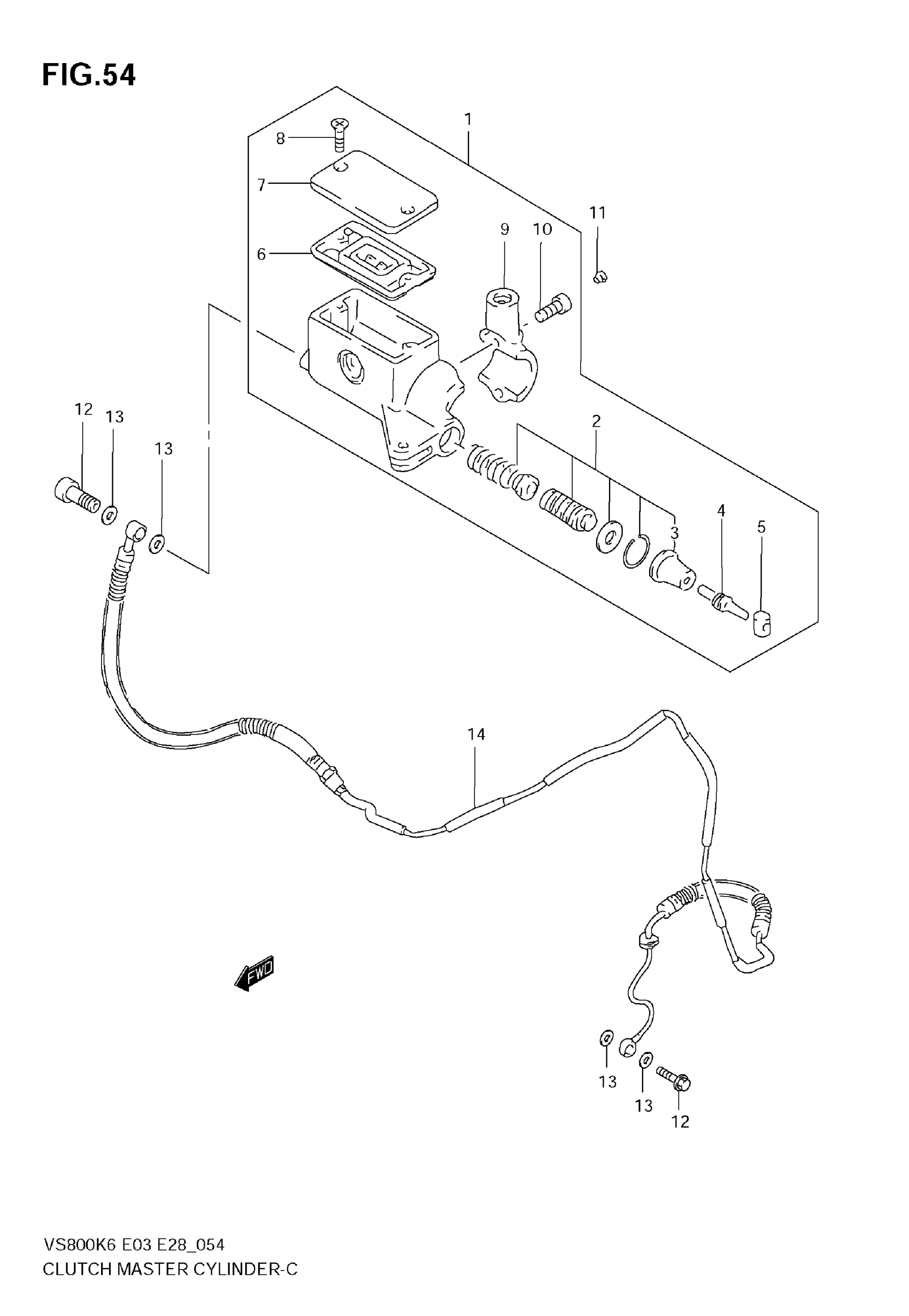

Suzuki VS800 (2009) CLUTCH MASTER CYLINDER Diagram

#

Description
Price

1

CYLINDER ASSY,C | Includes Item(s) 2 - 10 This part replaces 59800-39A40.

59800-39A41

$420.55

2

PISTON & CUP SET

59800-08810

$39.48

3

BOOT

59666-44300

$5.80

4

PUSH ROD This part replaces 59871-38A00.

59871-32F00

$5.84

5

BUSH

59892-08A00

$5.05

6

DIAPHRAGM

59667-49460

$9.78

7

CAP

59669-10F00

$71.45

8

SCREW

02122-04127

$1.97

9

HOLDER

59671-38A00

$37.11

10

BOLT

07130-06207

$3.04

11

CAP

09250-05008

$3.76

12

BOLT (10X1.00X22)

09360-10061

$6.43

13

WASHER (10X15X1.5)

09161-10009

$1.84

14

HOSE This part replaces 59900-38A71.

59900-38A72

Unavailable
