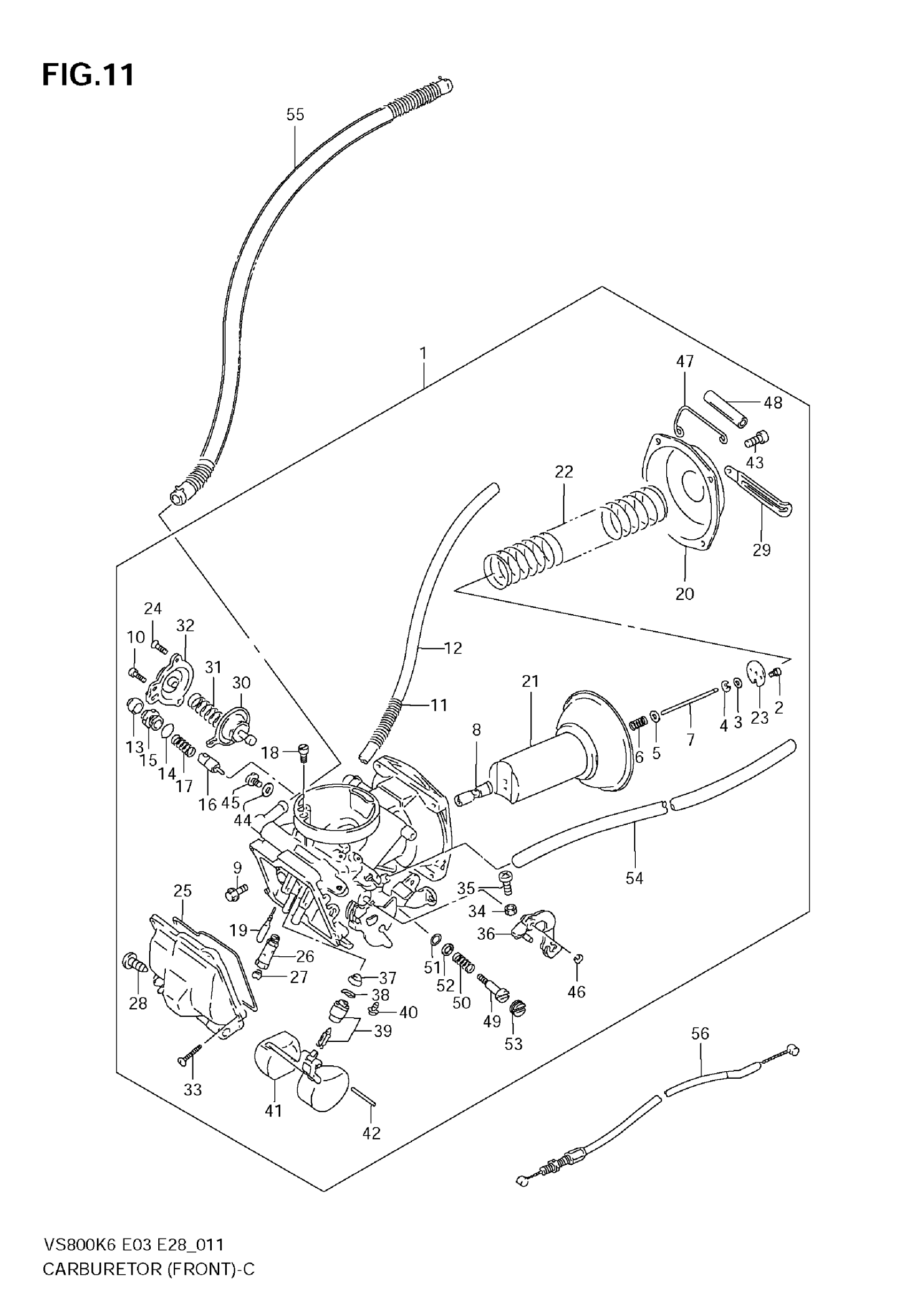

Suzuki VS800 (2009) CARBURETOR (FRONT) Diagram

#

Description
Price

1

CARBURETOR ASSY, FRONT | E3,E28

13210-38E11

$1,011.88

1

CARBURETOR ASSY, FRONT | E33; Includes Item(s) 2 - 54

13210-38E52

Unavailable

2

SCREW

02112-33073

$2.60

3

RING

13387-47010

$7.22

4

E RING

13394-10010

$5.45

5

WASHER

13382-44030

$3.71

6

SPRING

13388-44030

$8.12

7

NEEDLE, JET (5D47-1)

13383-45C20

$19.15

8

JET, NEEDLE (P-2M)

09494-00892

$53.92

9

SCREW

13605-38B00

$7.95

10

SCREW This part replaces 02112-04103.

02112-0410A

$1.49

11

SPRING

13689-38A00

$9.17

12

HOSE,5X10X600 | L:600!185 This part replaces 09352-50823-600.

44421-13ER0

$10.06

13

.CAP This part replaces 13681-04010.

13681-04011

$4.93

14

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

15

HOLDER, GUIDE

13418-38A00

$10.23

16

PLUNGER ASSY

13411-01400

$13.30

17

SPRING

13417-08210

$3.56

18

JET, PILOT AIR (65)

09492-65005

$11.38

19

JET, PILOT (40)

09492-40021

$16.78

20

COVER

13502-38A00

$37.53

21

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

22

SPRING

13503-38B00

$10.69

23

PLATE

13389-37400

$7.08

24

SCREW This part replaces 02122-04103.

02122-0410A

$1.49

25

O RING

13251-38A00

$6.79

26

HOLDER

13385-05A11

$14.85

27

JET, MAIN (127.5)

09491-25018

$14.76

28

SCREW, DRAIN This part replaces 13247-13A00.

13247-02340

$4.99

29

CLAMP This part replaces 09404-06432.

09404-06039

$1.74

30

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

31

SPRING

13481-45C10

$5.55

32

COVER

13484-38A00

$22.65

33

SCREW

13601-04148

$2.81

34

NUT

08310-00047

$2.23

35

SCREW This part replaces 02112-04303.

02112-0430B

$2.83

36

LEVER ASSY

13554-38A00

Unavailable

37

FILTER

13376-19F00

$10.28

38

O RING

13374-35C00

$5.99

39

VALVE ASSY, NEEDLE

13370-39A00

$60.40

40

SCREW

13602-05A10

$3.56

41

FLOAT

13250-38B00

$27.75

42

PIN, FLOAT

13254-20010

$4.28

43

SCREW

02112-05127

$1.97

44

WASHER

13523-46110

$2.70

45

SCREW This part replaces 02112-05063.

02112-0506B

$1.84

46

E RING

13415-38300

$2.08

47

CLIP

13671-38A00

Unavailable

48

HOSE(6X10X600) | L:600!50 This part replaces 09352-60103-600.

09352-60104-600

$8.99

49

SCREW, AIR (1,1/4) | E3,E28

13279-47070

$13.36

49

SCREW, AIR (2.0) | E33

13279-47070

$13.36

50

.SPRING (NT:45)

13268-47070

$4.34

51

O-RING This part replaces 13295-29900.

13295-29901

$4.34

52

WASHER

13291-29900

$1.98

53

PLUG

13281-05A00

$4.60

54

HOSE (5X8X430) | E33

13683-38B01

$34.98

55

HOSE ASSY, FUEL

13683-38A21

$61.07

56

CABLE, ID SYNCRO

13641-38A01

$19.07
