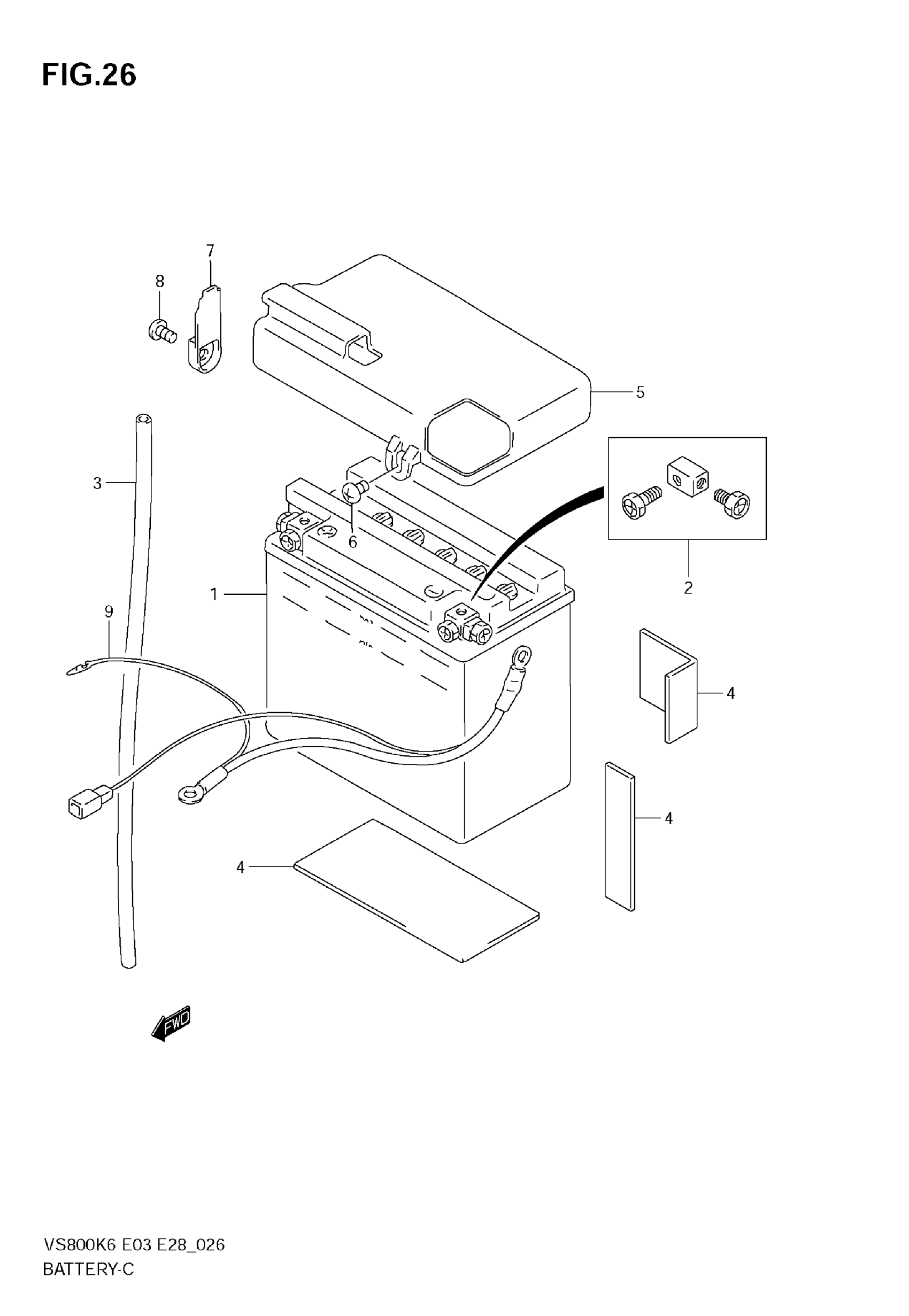

Suzuki VS800 (2009) BATTERY Diagram

#

Description

Price

1

BATTERY (12V,16AH) | Includes Item(s) 2

33610-38A01

$179.12

2

BOLT SET, TERMINAL

33626-38A01

$18.96

3

HOSE,BATTERY EX | L:780!200 This part replaces 33680-16A10.

33680-16A11

$6.78

4

PROTECTOR (170X95X3.0) | CUT AS REQUIRED (20X90)(60X45)(130X60)

33651-37000

$4.48

5

COVER, BATTERY UPPER

33658-38A30

$12.57

6

SCREW

02142-0508B

$2.23

7

COVER, BATTERY TERMINAL

33658-38A40

$2.28

8

SCREW

02142-0508B

$2.23

9

LEAD WIRE, BATTERY (-)

33860-38A00

$20.35
