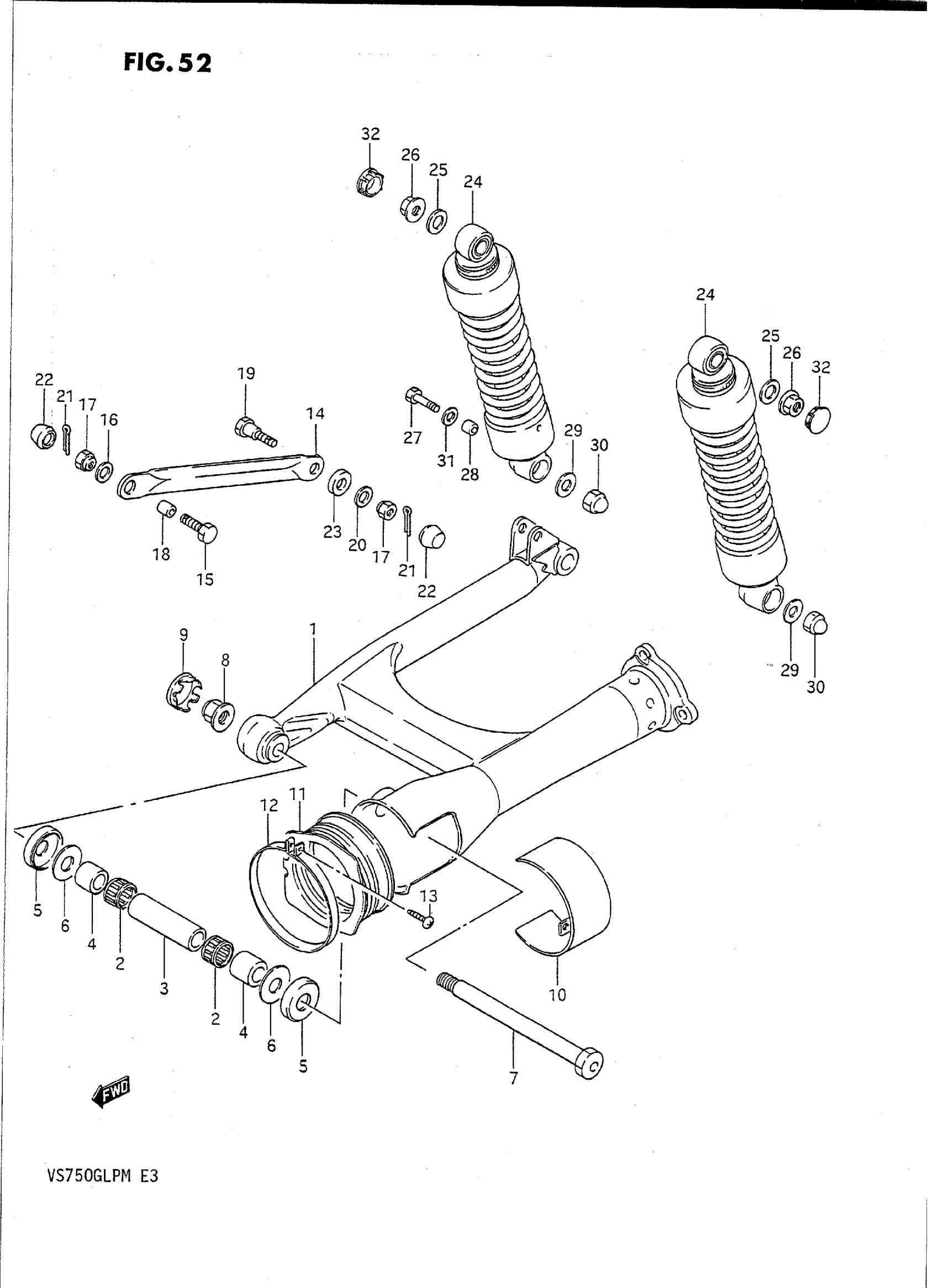

Suzuki VS750GLPM (1991) REAR SWINGING ARM Diagram

#

Description
Price

1

SWINGING ARM, REAR (MAROON) | MODEL J/L

61100-38A20-20U

Unavailable

1

SWINGING ARM, REAR (BLACK) | MODEL J/L

61100-38A20-33J

Unavailable

1

SWINGING ARM, REAR (BLACK) | MODEL K This part replaces 61100-38A20-0FG.

61100-38A20-33J

Unavailable

1

SWINGING ARM, REAR (BLUE) | MODEL M

61100-38A20-14W

Unavailable

1

SWINGING ARM, REAR (RED) | MODEL M

61100-38A20-19A

Unavailable

2

BEARING

09263-22022

$22.69

3

SPACER, CENTER This part replaces 61282-38A00.

61282-38E01

$19.57

4

SPACER

61251-32400

Unavailable

5

DUST SEAL

61262-45002

$7.97

6

THRUST WASHER

08211-14341

$3.42

7

SHAFT, PIVOT

61211-38A00

Unavailable

8

NUT This part replaces 08319-31148.

08319-3114A

$9.66

9

CAP, RH

61222-38A01

$13.35

10

CAP, LH (MAROON) | MODEL J/L

61232-38A00-20U

Unavailable

10

CAP, LH (BLACK) | MODEL J/L This part replaces 61232-38A00-33J.

61232-38A00-YAY

Unavailable

10

COVER, PIVOT LH (SILVER) | MODEL K This part replaces 61232-38A00-0FG.

61232-38A00-13L

Unavailable

10

COVER, PIVOT LH (SILVER) | MODEL M This part replaces 61232-38A00-14W.

61232-38A00-13L

Unavailable

10

CAP, LH (RED) | MODEL M

61232-38A00-19A

Unavailable

11

BOOT

61372-38A00

$27.97

12

CLAMP This part replaces 09402-92306.

09402-92306-XC0

$5.57

13

SCREW This part replaces 03211-04255.

03211-0425B

$2.70

14

TORQUE LINK, REAR (BLACK)

64310-38A13-019

Unavailable

15

BOLT, FRONT

09101-10037

Unavailable

16

WASHER, REAR This part replaces 09160-10057.

09160-10142

$2.34

17

NUT

09159-10059

$2.53

18

SPACER (10.2X14X9.60) This part replaces 09180-10114.

09180-10137

$4.25

19

BOLT, REAR

09111-10035

$6.23

20

WASHER, REAR This part replaces 09160-10085.

09160-10142

$2.34

21

PIN This part replaces 04111-16158.

04111-1620A

$1.49

22

CAP

09251-13002

$4.67

23

CUSHION, REAR This part replaces 09320-12039.

09320-12501

$6.83

24

ABSORBER ASSY, REAR SHOCK This part replaces 62100-38A51.

62100-38A53

$470.62

25

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10001.

09160-10093

$2.35

26

NUT This part replaces 08316-16106.

08316-1010B

$2.66

27

BOLT, LOWER RH

09100-10247

$2.98

28

SPACER, LOWER RH (10.2X14X20.7) This part replaces 09180-10104.

09180-10139

$3.99

29

WASHER, LOWER (10.5X24X2.3) This part replaces 09160-10095.

09160-10093

$2.35

30

NUT This part replaces 08313-11107.

08313-10107

$2.50

31

WASHER, KNUCKLE END This part replaces 08322-11104.

08322-0110A

$1.84

32

CAP

95672-24A00

$5.83
