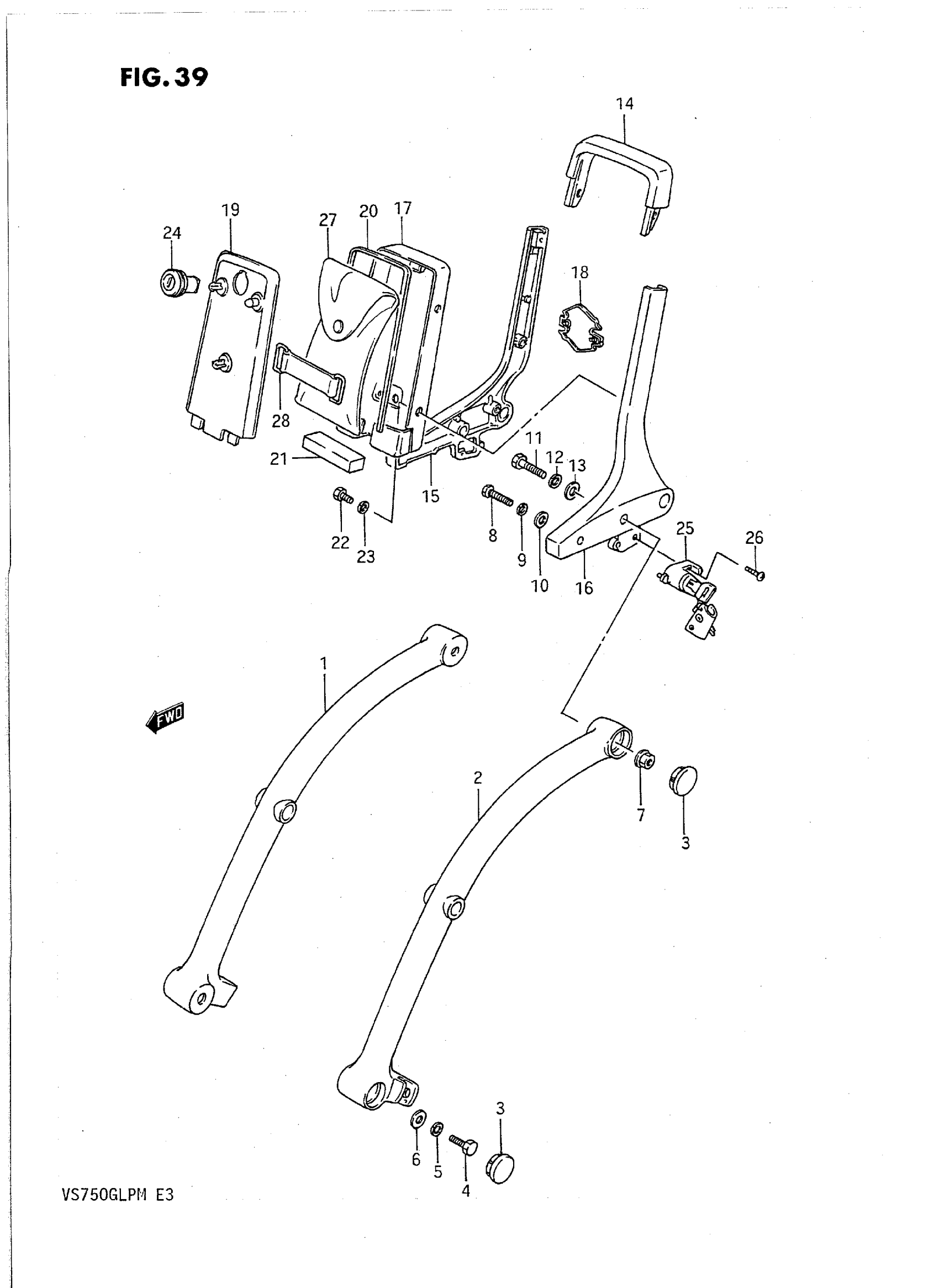

Suzuki VS750GLPM (1991) PILLION RIDER HANDLE Diagram

#

Description
Price

1

GRIP, FRAME HANDLE RH This part replaces 41610-38A30.

41610-38A20

Unavailable

2

GRIP, FRAME HANDLE LH This part replaces 41620-38A30.

41620-38A20

Unavailable

3

CAP

95672-24A00

$5.83

4

BOLT, REAR This part replaces 01107-08207.

01500-08207

$2.53

5

.LOCK WASHER This part replaces 08321-21088.

08321-01087

$2.13

6

WASHER This part replaces 08322-21088.

08322-01087

$2.13

7

NUT (CHROME) This part replaces 08316-16086.

08316-10087

$2.26

8

BOLT This part replaces 01107-06356.

01500-0635A

$2.19

9

LOCK WASHER This part replaces 08321-21066.

08321-0106A

$1.84

10

.WASHER This part replaces 08322-21066.

08322-0106B

$2.26

11

BOLT This part replaces 01107-08506.

01500-0850B

$3.77

12

LOCK WASHER This part replaces 08321-21086.

08321-0108A

$1.84

13

WASHER This part replaces 08322-21086.

08322-0108A

$1.92

14

HANDLE, PILLION RIDER UPPER This part replaces 46211-38B00.

46211-38B01

Unavailable

15

HANDLE,PILLION This part replaces 46212-38A20.

46212-38A50

Unavailable

15

HANDLE, PILLION RIDER RH | CALIFORNIA ONLY This part replaces 46212-38A30.

46212-38A31

Unavailable

16

HANDLE, PILLION RIDER LH This part replaces 46213-38A20.

46213-38A21

Unavailable

16

HANDLE, PILLION RIDER LH | CALIFORNIA ONLY This part replaces 46213-38A30.

46213-38A31

Unavailable

17

HOLDER, TOOL REAR (BLACK) This part replaces 47430-38B01-22S.

47430-38B11-22S

Unavailable

18

EMBLEM This part replaces 68261-38A20.

68261-38A30

$37.15

19

HOLDER, TOOL FRONT

47441-38B00

$24.42

20

MOLDING, REAR

47437-38B00

$7.95

21

CUSHION, TOOL BACK

47438-38B00

Unavailable

22

BOLT This part replaces 01107-06127.

01500-06127

$1.97

23

LOCK WASHER This part replaces 08321-21067.

08321-01067

$2.13

24

LOCK SET, TOOL HOLDER | MODEL J This part replaces 95700-24830.

95700-24831

$71.38

24

LOCK SET, TOOL HOLDER | MODEL K/L/M

95700-24831

$71.38

25

LOCK SET, HELMET | MODEL J This part replaces 95700-38820.

95700-38821

$66.87

25

LOCK ASSY, HELMET | MODEL K/L/M

95700-38821

$66.87

26

SCREW This part replaces 02112-05128.

02112-05127

$1.97

27

TOOL ASSY This part replaces 09800-20008.

09800-21013

Unavailable

28

BAND, TOOL

09462-00008

$4.77

29

CARRIER SET, REAR | OPT,NOT SHOWN This part replaces 46300-38821.

46300-38822

Unavailable
