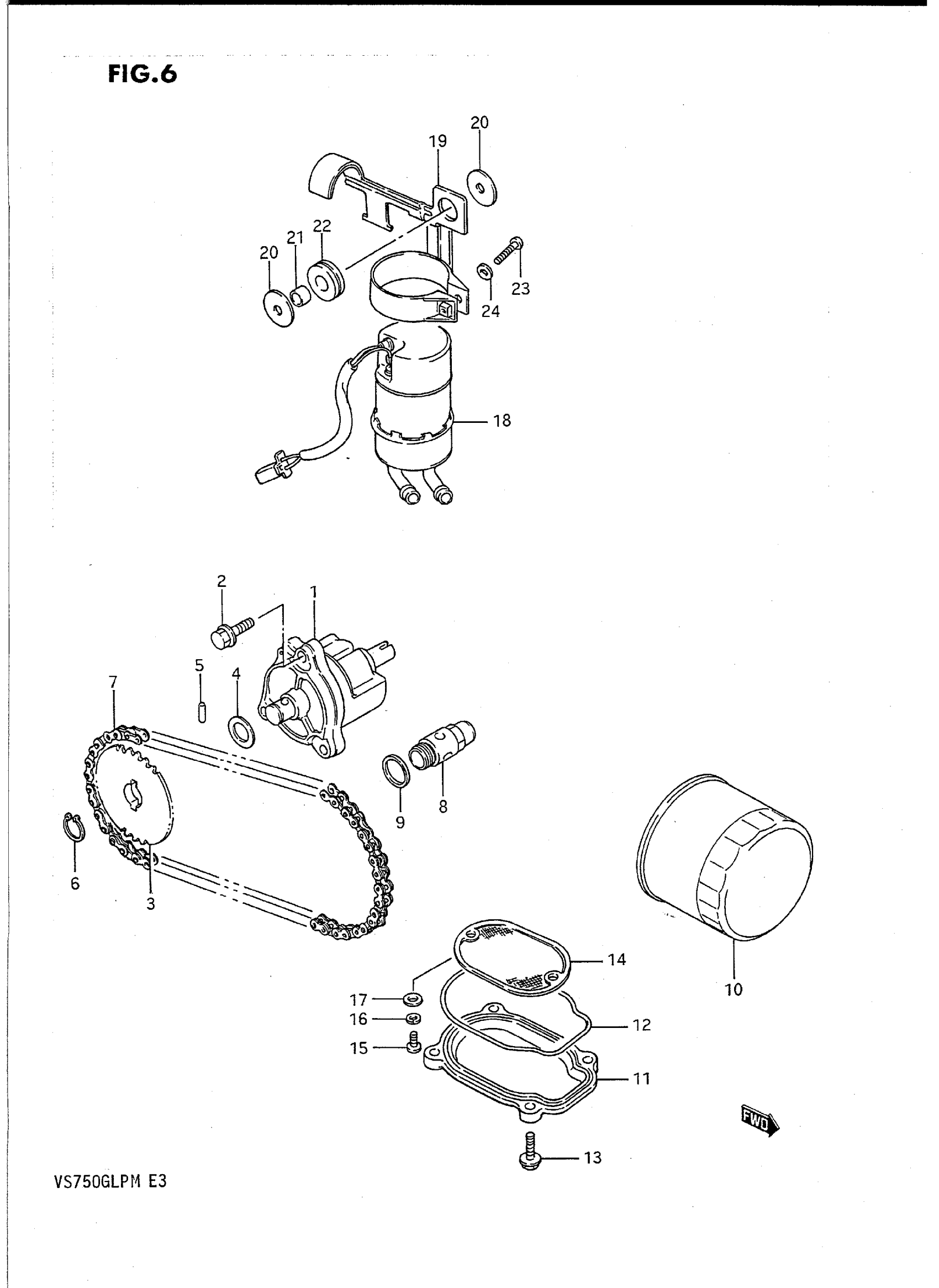

Suzuki VS750GLPM (1991) OIL PUMP - FUEL PUMP Diagram

#

Description
Price

1

PUMP ASSY, OIL

16400-38A01

$250.27

2

BOLT This part replaces 01517-06257.

01550-06257

$2.31

3

SPROCKET, OIL PUMP DRIVEN

16331-38A00

Unavailable

4

WASHER

08221-12205

$2.50

5

PIN

09261-05006

$1.46

6

CIRCLIP This part replaces 08331-31128.

08331-3112A

$1.77

7

CHAIN, OIL PUMP DRIVE

16310-38A00

$38.30

8

VALVE ASSY, OIL RELIEF

16440-24A01

Unavailable

9

GASKET

09168-16002

$1.89

10

FILTER, ENGINE OIL This part replaces 16510-06B00.

16510-07J00

$11.99

11

CAP, OIL STRAINER

16523-38A00

$35.78

12

O RING

16528-38A00

$13.27

13

BOLT This part replaces 01517-06207.

01550-06207

$2.31

14

STRAINER, OIL

16520-38A00

$9.17

15

SCREW This part replaces 02112-05126.

02112-0512A

$1.45

16

LOCK WASHER This part replaces 08321-21056.

08321-0105A

$1.83

17

WASHER, FRONT This part replaces 08322-21056.

08322-0105A

$1.83

18

PUMP ASSY,FUEL This part replaces 15100-38A10.

15100-38A11

Unavailable

19

BRACKET, FUEL PUMP

15110-38A10

$17.40

20

WASHER, FRONT This part replaces 09160-06004.

09160-06134

$1.89

21

SPACER

09180-06082

$2.65

22

CUSHION

09320-10014

$2.80

23

SCREW This part replaces 02112-04208.

02112-0420A

$1.30

24

WASHER This part replaces 08322-21047.

08322-01047

$1.88
