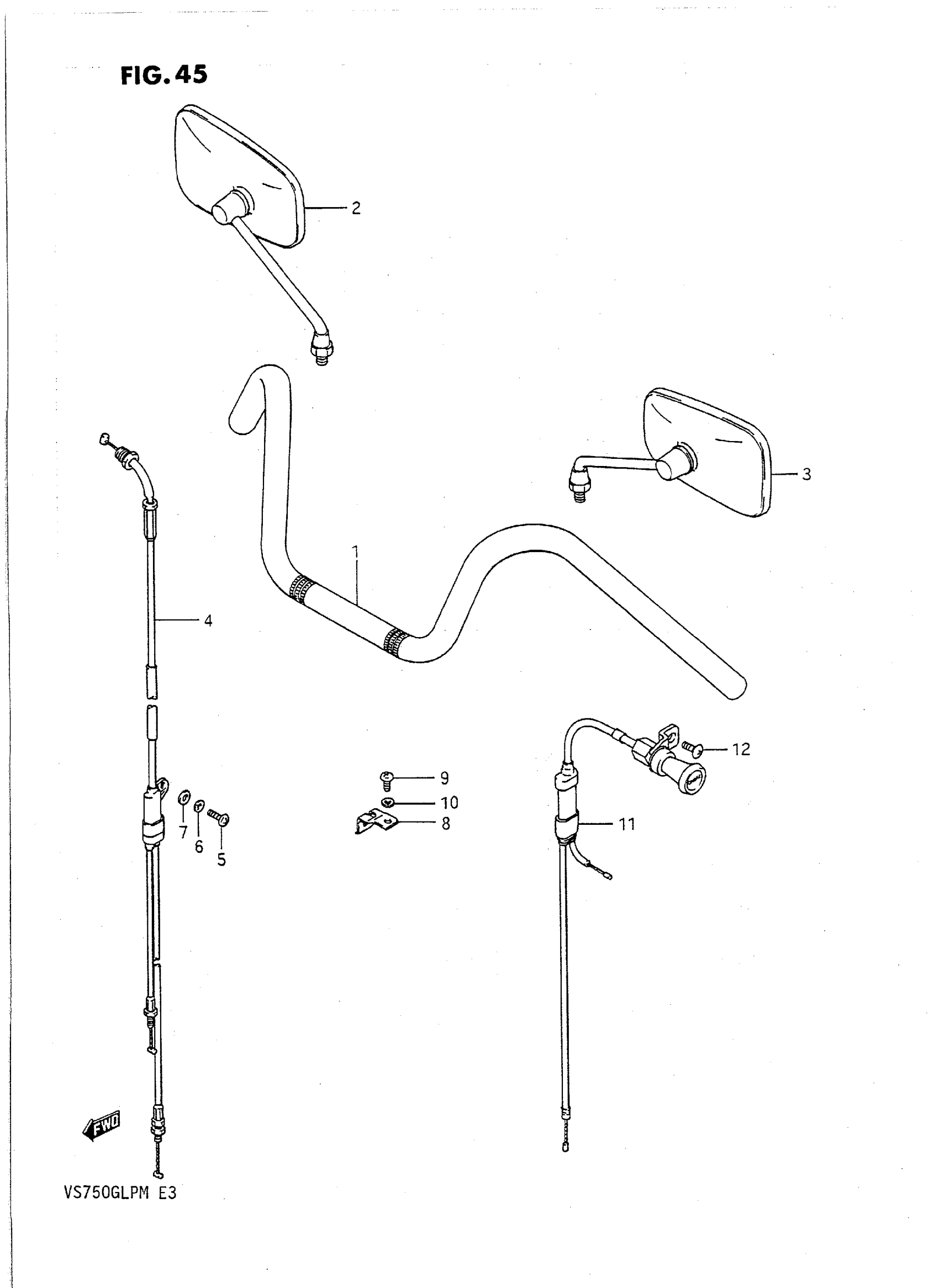

Suzuki VS750GLPM (1991) HANDLEBAR - CONTROL CABLE Diagram

#

Description
Price

1

HANDLEBAR (PULL BACK TYPE)

56111-38A50

Unavailable

2

MIRROR ASSY, REAR VIEW RH

56500-38A00

Unavailable

3

MIRROR ASSY, REAR VIEW LH

56600-38A00

Unavailable

4

CABLE ASSY,THRO This part replaces 58300-38A10.

58300-38A11

$84.46

5

SCREW | MODEL J/K This part replaces 02112-05128.

02112-05127

$1.97

5

SCREW, THROTTLE CABLE | MODEL L/M This part replaces 02112-75128.

02112-75127

Unavailable

6

LOCK WASHER | MODEL J/K This part replaces 08321-21057.

08321-0105A

$1.84

7

WASHER | MODEL J/K This part replaces 08322-21057.

08322-01057

$2.13

8

CLAMP, THROTTLE CABLE

58621-38A00

$6.38

9

SCREW

02112-05107

$1.49

10

LOCK WASHER This part replaces 08321-21057.

08321-0105A

$1.84

11

CABLE ASSY,STAR | MODEL J This part replaces 58400-38A00.

58400-38A02

Unavailable

11

CABLE ASSY, STARTER | MODEL K/L/M This part replaces 58400-38A10.

58400-38A14

$65.94

12

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49
