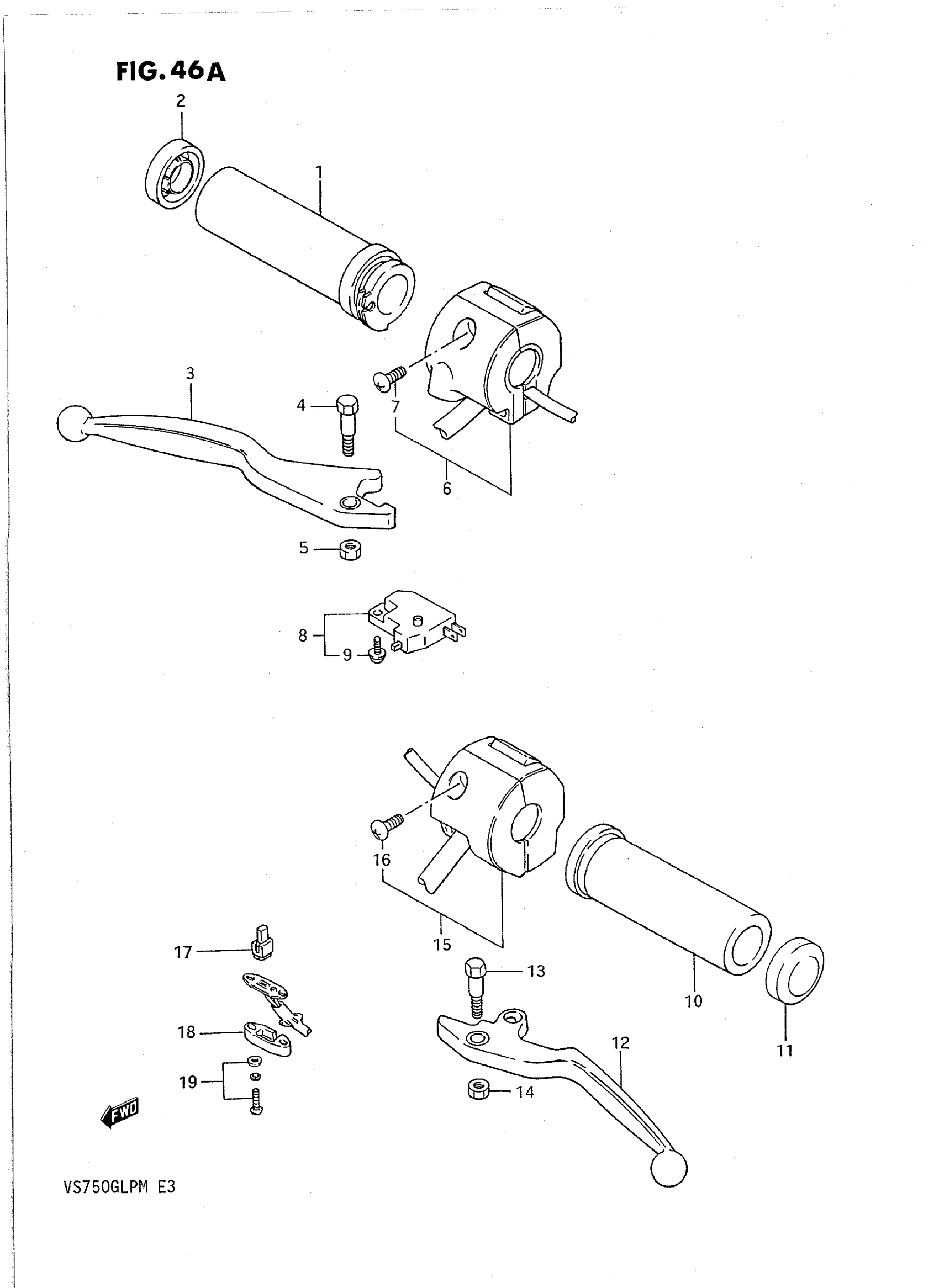

Suzuki VS750GLPM (1991) HANDLE SWITCH (MODEL K/L/M) Diagram

#

Description
Price

1

GRIP, THROTTLE

57110-38A02

Unavailable

2

CAP

57216-38A00

$7.22

3

LEVER, BRAKE This part replaces 57420-24B00.

57420-24B01

$26.03

4

BOLT This part replaces 57431-38A00.

57431-38A10

$9.23

5

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

6

SWITCH ASSY, HANDLE RH | Includes Item(s) 7

37200-39A70

Unavailable

7

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

8

SWITCH ASSY,FR BRAKE | Includes Item(s) 9 This part replaces 57460-17C00.

57460-14J02

$38.46

9

SCREW

57465-17C00

$2.19

10

GRIP, LH

57210-38A02

Unavailable

11

CAP

57216-38A00

$7.22

12

LEVER, CLUTCH This part replaces 57620-38A00.

57621-38A02

$21.10

13

BOLT This part replaces 57431-38A00.

57431-38A10

$9.23

14

.NUT This part replaces 08319-21068.

08319-2106A

$1.91

15

SWITCH ASSY, HANDLE LH | Includes Item(s) 16 - 19

37400-39A80

Unavailable

16

SCREW This part replaces 37391-38A00.

02112-05167

$1.97

17

CONTACT

57465-18601

$4.34

18

COVER

57481-38A10

Unavailable

19

SCREW

57484-38A00

Unavailable
