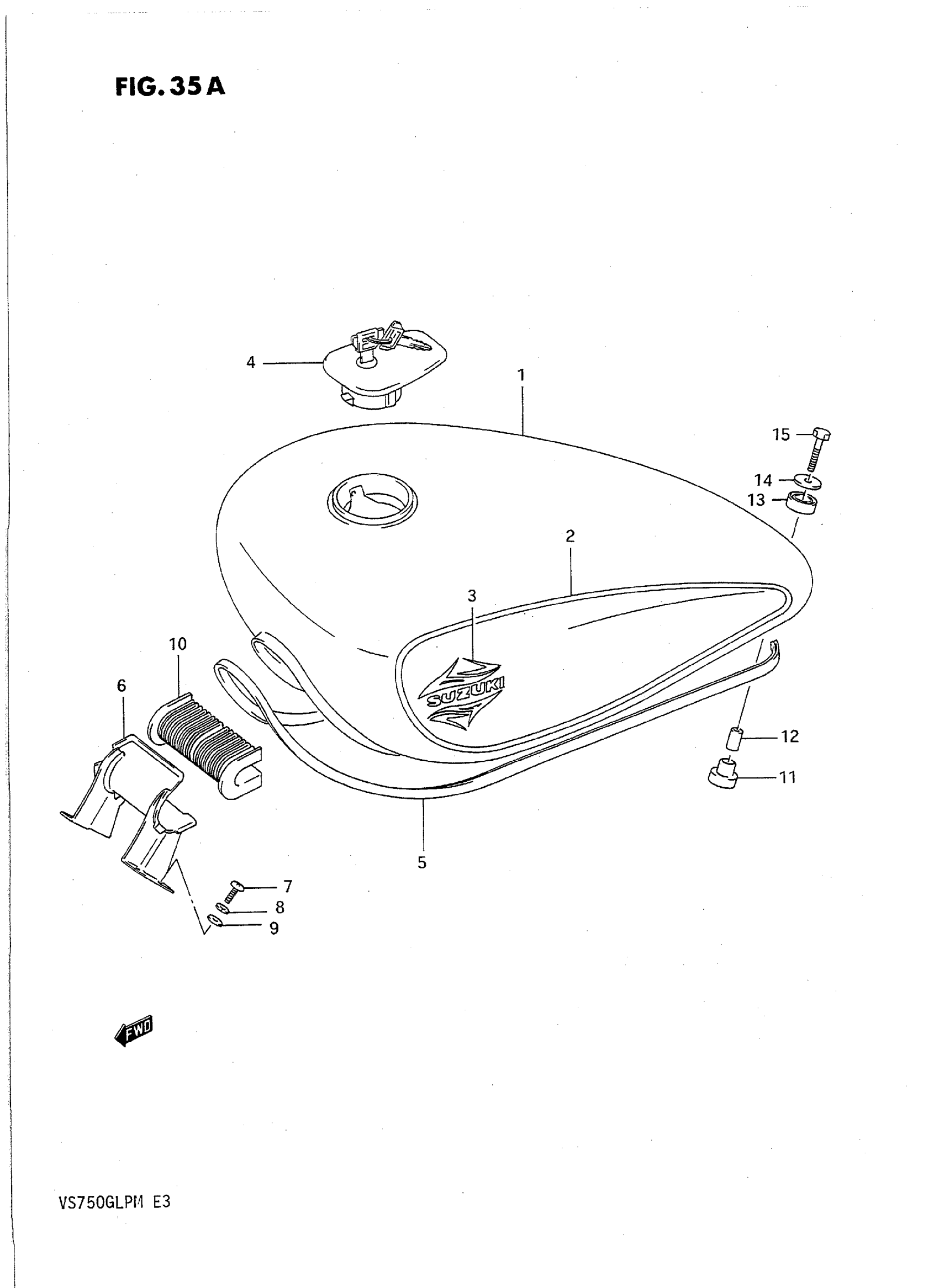

Suzuki VS750GLPM (1991) FUEL TANK (MODEL M) Diagram

#

Description
Price

1

TANK ASSY,FUEL This part replaces 44100-38A90-14W.

44110-38A22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE This part replaces 44100-38A90-19A.

44100-39A01-19A

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY This part replaces 44100-39A10-14W.

44110-38A12-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | CALIFORNIA ONLY; Includes Item(s) 2 - 3 This part replaces 44100-39A10-19A.

44110-38A12-YD8

Unavailable

2

TAPE SET, FUEL TANK | FOR 14W

68110-38A10-F63

Unavailable

2

TAPE SET, FUEL TANK | FOR 19A

68110-38A10-F64

Unavailable

3

EMBLEM, FUEL TANK | FOR 14W

68111-38A30-0YR

Unavailable

3

EMBLEM, FUEL TANK | FOR 19A

68111-38A30-0YS

Unavailable

4

CAP SET, FUEL TANK

44200-38820

$108.83

4

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-38850.

44200-38852

$94.71

4

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA This part replaces 44200-38830.

44200-38860

Unavailable

4

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA This part replaces 44200-38840.

44200-38870

Unavailable

5

MOLDING This part replaces 68241-27A00.

68241-04X50-00B

$27.30

6

BRACKET, FRONT (BLACK) This part replaces 44250-38A01-14W.

44250-38A01-019

$44.30

6

BRACKET, FRONT (BLACK) This part replaces 44250-38A01-19A.

44250-38A01-019

$44.30

7

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

8

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

9

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26

10

CUSHION, FRONT

44511-38A01

$11.60

11

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

12

SPACER This part replaces 09180-06091.

09180-06273

$3.05

13

CUSHION, REAR UPPER

09320-14013

$2.11

14

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

15

BOLT This part replaces 09128-06055.

01500-0635A

$2.19
