Partiron

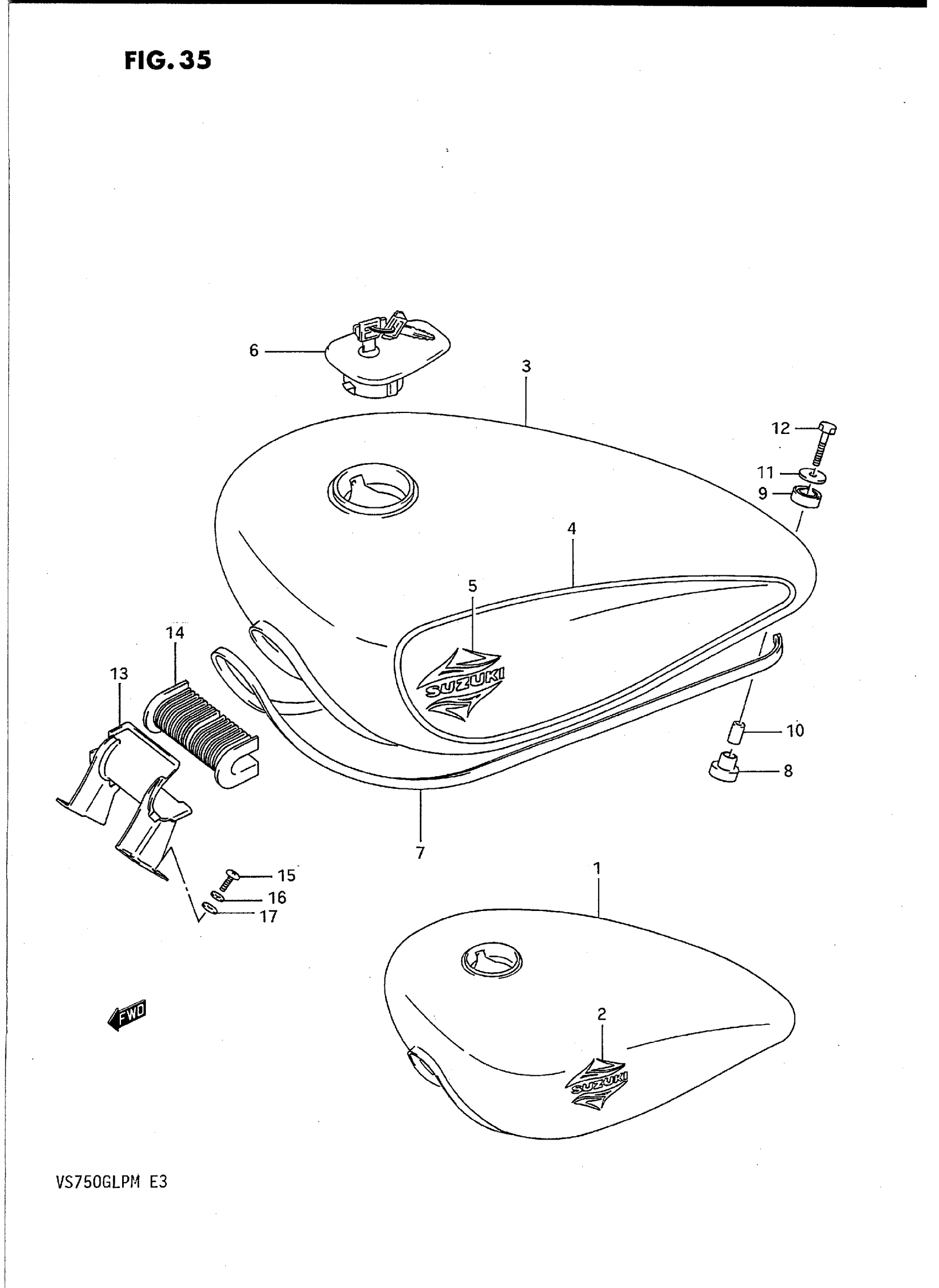

Suzuki VS750GLPM (1991) FUEL TANK (MODEL J/K/L) Diagram

#

Description
Price

1

TANK ASSY,FUEL | MODEL J This part replaces 44100-38A30-20U.

44110-38A22-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J,CALIFORNIA ONLY This part replaces 44100-38A50-20U.

44110-38A12-YD8

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J This part replaces 44100-38A30-33J.

44100-38A41-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J,CALIFORNIA ONLY This part replaces 44100-38A50-33J.

44110-38A12-YD8

Unavailable

1

TANK ASSY,FUEL | MODEL K This part replaces 44100-38A30-0FG.

44110-38A22-YD8

Unavailable

1

TANK ASSY, FUEL (PURPLE) | MODEL K,CALIRORNIA ONLY; Includes Item(s) 2 - 2

44100-38A50-0FG

Unavailable

2

EMBLEM | FOR 20U

68111-38A10-38R

Unavailable

2

EMBLEM | FOR 33J

68111-38A10-38N

Unavailable

2

EMBLEM | FOR 0FG

68111-38A10-0FM

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-38A60-20U.

44100-38A71-20U

Unavailable

3

NO DESCRIPTION AVAILABLE | MODEL L This part replaces 44100-38A60-33J.

44100-38A71-33J

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL L,CALIFORNIA ONLY This part replaces 44100-38A80-20U.

44100-38A80-33J

Unavailable

3

TANK ASSY, FUEL (BLACK) | MODEL L,CALIFORNIA ONLY; Includes Item(s) 4 - 5

44100-38A80-33J

Unavailable

4

TAPE SET, FUEL TANK | MODEL L,FOR 20U

68110-38A10-3WH

Unavailable

4

TAPE SET, FUEL TANK | MODEL L,FOR 33J

68110-38A10-3WJ

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L,FOR 20U This part replaces 68111-38A20-0PD.

68111-38A21-0PD

Unavailable

5

NO DESCRIPTION AVAILABLE | MODEL L,FOR 33J This part replaces 68111-38A20-0PE.

68111-38A21-0PE

Unavailable

6

CAP SET, FUEL TANK This part replaces 44200-38A00-KEY.

44200-38820

$108.83

6

CAP SET,FUEL TA | CALIFORNIA ONLY This part replaces 44200-38A10-KEY.

44200-38852

$94.71

6

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA This part replaces 44200-38A80-KEY.

44200-38860

Unavailable

6

CAP SET, FUEL TANK | OPT:OTHER THAN CALIFORNIA This part replaces 44200-38A90-KEY.

44200-38870

Unavailable

7

MOLDING | MODEL J This part replaces 68241-38A00.

68241-04X50-00B

$27.30

7

MOLDING | MODEL K/L This part replaces 68241-27A00.

68241-04X50-00B

$27.30

8

CUSHION (9X24X18) This part replaces 09320-10020.

09320-10071

$2.60

9

CUSHION, REAR

09320-14013

$2.11

10

SPACER This part replaces 09180-06091.

09180-06273

$3.05

11

WASHER, 6.5X24X1.6 This part replaces 09160-06072.

09160-06501

$1.86

12

BOLT This part replaces 09128-06055.

01500-0635A

$2.19

13

BRACKET, FRONT (BLACK) | MODEL J/L This part replaces 44250-38A01-20U.

44250-38A01-019

$44.30

13

BRACKET, FRONT (BLACK) | MODEL J/L

44250-38A01-019

$44.30

13

BRACKET, FRONT (BLACK) | MODEL K This part replaces 44250-38A01-0FG.

44250-38A01-019

$44.30

14

CUSHION, FRONT

44511-38A01

$11.60

15

SCREW This part replaces 02142-06164.

02142-0616A

$1.49

16

LOCK WASHER This part replaces 08321-21064.

08321-0106A

$1.84

17

.WASHER This part replaces 08322-21064.

08322-0106B

$2.26
