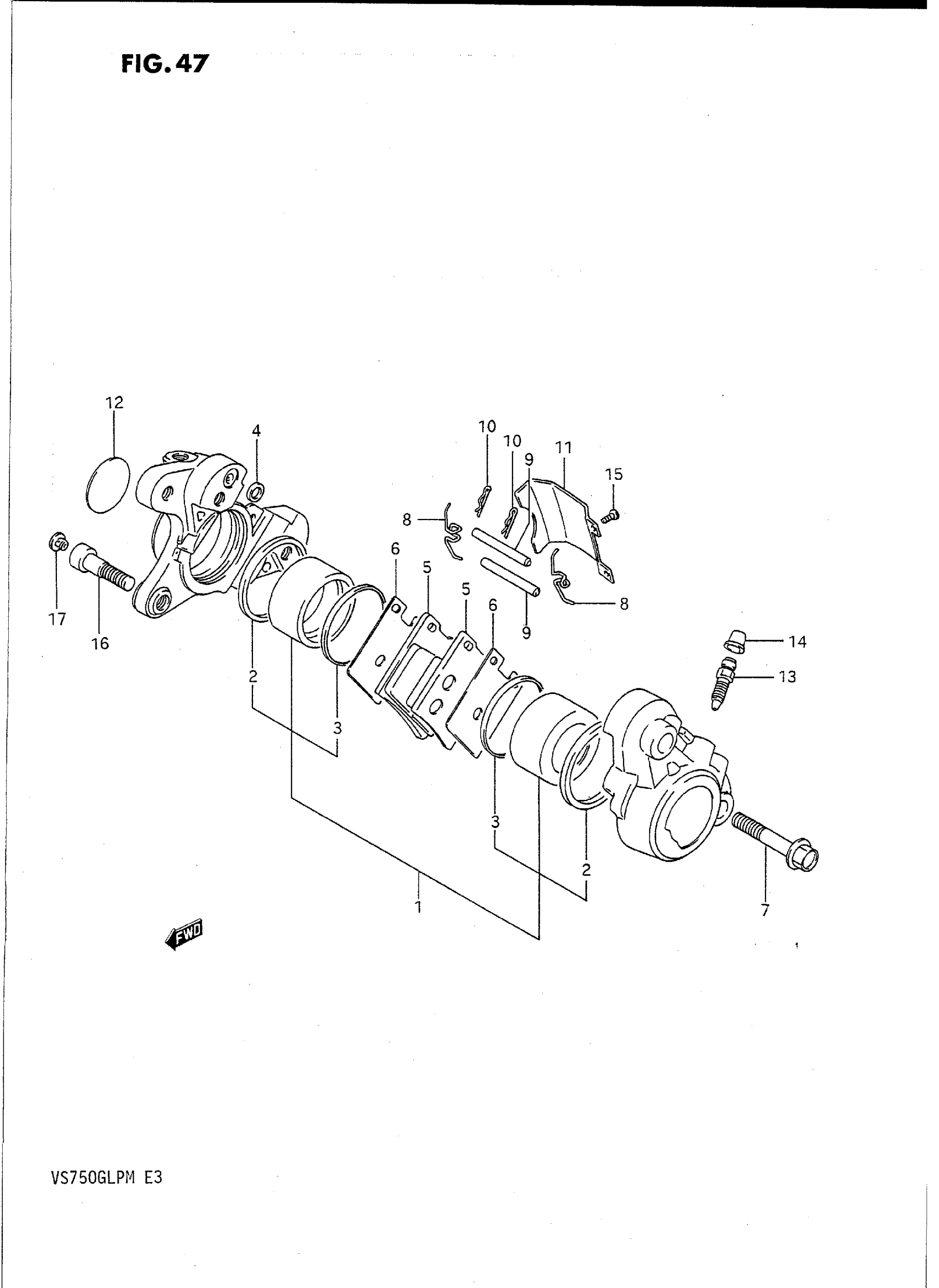

Suzuki VS750GLPM (1991) FRONT CALIPER Diagram

#

Description
Price

CALIPER ASSY, FRONT | MODEL J/K/L This part replaces 59100-38A00.

59100-38A02-999

$381.93

CALIPER ASSY, FRONT | MODEL M; Includes Item(s) 1 - 15 This part replaces 59100-38A01.

59100-38A02-999

$381.93

1

PISTON SET | MODEL J/K/L This part replaces 69100-24820.

69100-24821

Unavailable

1

PISTON SET | MODEL M

69100-24821

Unavailable

2

PISTON SEAL This part replaces 55136-66310.

69107-38B00

$9.79

3

BOOT

69108-45000

$8.50

4

SEAL

69107-34200

$10.71

5

PAD SET This part replaces 59130-38B10.

59100-38820

$48.07

6

SHIM

59371-33410

$12.57

7

BOLT

59145-16700

$8.83

8

SPRING

59143-16700

$5.80

9

PIN

69141-45000

$5.17

10

.CLIP, PAD PIN

69142-45000

$4.34

11

COVER This part replaces 59151-38B00.

59151-38B01

Unavailable

12

CAP, CALIPER

59152-24A00

Unavailable

13

BLEEDER

59121-18410

$8.73

14

CAP, BLEEDER This part replaces 59122-18410.

55156-66310

$5.17

15

SCREW (4X6) This part replaces 59153-38B00.

59153-38B10

$7.80

16

BOLT

09106-10038

$3.55

17

CAP

09250-08014

$2.85
