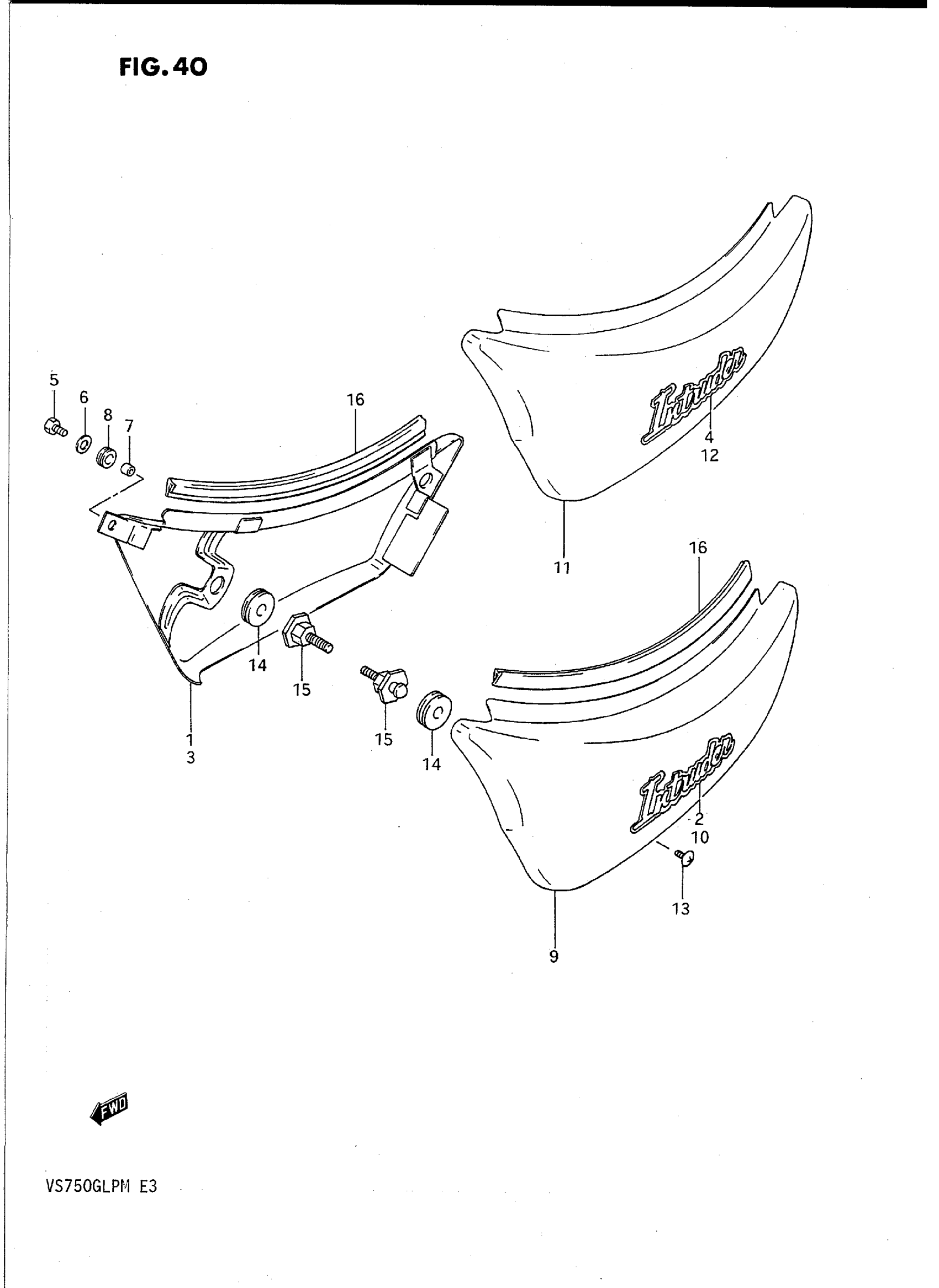

Suzuki VS750GLPM (1991) FRAME COVER Diagram

#

Description
Price

1

COVER ASSY,FRAM | MODEL J This part replaces 47110-38A00-20U.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL J This part replaces 47110-38A00-33J.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL K This part replaces 47110-38A00-0FG.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL L This part replaces 47110-38A00-0NX.

47110-38A00-13L

$305.78

1

COVER ASSY,FRAM | MODEL L; Includes Item(s) 2 - 2 This part replaces 47110-38A00-36X.

47110-38A00-13L

$305.78

2

EMBLEM | FOR 20U

68131-38A00-9VU

Unavailable

2

EMBLEM | FOR 33J This part replaces 68131-38A00-9FA.

68131-38A00-7VH

Unavailable

2

EMBLEM | FOR 0FG

68131-38A00-2WG

Unavailable

2

EMBLEM | MODEL L,FOR 0NX This part replaces 68131-38A00-3WK.

68131-38A00-9VU

Unavailable

2

EMBLEM | MODEL L,FOR 36X

68131-38A00-3WL

Unavailable

3

COVER ASSY,FRAM | MODEL M This part replaces 47100-38A20-14W.

47110-38A00-13L

$305.78

3

COVER ASSY,FRAM | MODEL M; Includes Item(s) 4 - 4 This part replaces 47100-38A20-19A.

47110-38A00-13L

$305.78

4

EMBLEM | MODEL M FOR 14W

68131-38A10-0YR

Unavailable

4

EMBLEM | MODEL M FOR 19A

68131-38A10-0YS

Unavailable

5

BOLT, RH

01204-06167

$1.98

6

WASHER

09160-06084

$1.78

7

SPACER This part replaces 09180-06032.

09180-06246

$2.12

8

CUSHION (8X18X5.8) This part replaces 09320-06017.

09320-08516

$2.45

9

COVER ASSY,FRAM | MODEL J This part replaces 47210-38A00-20U.

47210-38A00-13L

$276.22

9

COVER, FRAME LH (BLACK) | MODEL J

47210-38A00-33J

$543.26

9

COVER ASSY,FRAM | MODEL K This part replaces 47210-38A00-0FG.

47210-38A00-13L

$276.22

9

COVER ASSY,FRAM | MODEL L This part replaces 47210-38A00-0NX.

47210-38A00-13L

$276.22

9

COVER ASSY,FRAM | MODEL L; Includes Item(s) 10 - 10 This part replaces 47210-38A00-36X.

47210-38A00-13L

$276.22

10

EMBLEM | FOR 20U

68131-38A00-9VU

Unavailable

10

EMBLEM | FOR 33J This part replaces 68131-38A00-9FA.

68131-38A00-7VH

Unavailable

10

EMBLEM | FOR 0FG

68131-38A00-2WG

Unavailable

10

EMBLEM | MODEL L,FOR 0NX This part replaces 68131-38A00-3WK.

68131-38A00-9VU

Unavailable

10

EMBLEM | MODEL L,FOR 36X

68131-38A00-3WL

Unavailable

11

COVER ASSY,FRAM | MODEL M This part replaces 47200-38A20-14W.

47210-38A00-13L

$276.22

11

COVER ASSY,FRAM | MODEL M; Includes Item(s) 12 - 12 This part replaces 47200-38A20-19A.

47210-38A00-13L

$276.22

12

EMBLEM | MODEL M FOR 14W

68131-38A10-0YR

Unavailable

12

EMBLEM | MODEL M FOR 19A

68131-38A10-0YS

Unavailable

13

STOPPER, CL RLSE CAM SHAFT This part replaces 02142-06104.

02142-0610A

$1.49

14

CUSHION (8X22X7) This part replaces 09320-08013.

09320-08509

$1.93

15

BOSS, FRAME COVER

47250-38A01

$6.68

16

MOLDING, FRONT This part replaces 47218-38A00.

68241-04X50-300

$7.32
