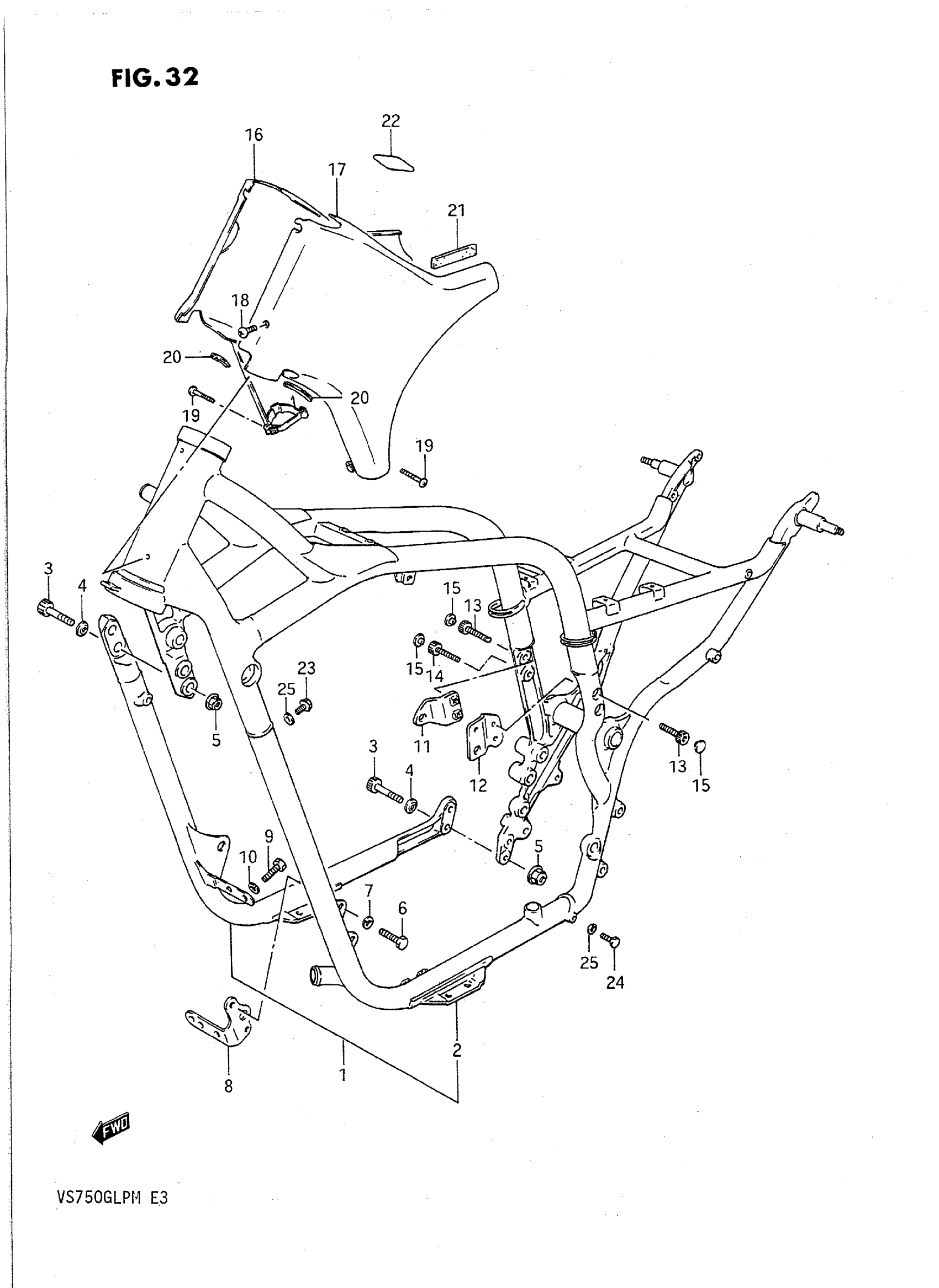

Suzuki VS750GLPM (1991) FRAME Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | MODEL J/L This part replaces 41100-39830-20U.

41100-39853-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL J/L This part replaces 41100-39830-33J.

41100-39831-33J

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 41100-39830-0FG.

41100-39831-0FG

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 41100-39830-14W.

41100-39831-14W

Unavailable

1

NO DESCRIPTION AVAILABLE | MODEL M; Includes Item(s) 2 - 5 This part replaces 41100-39830-19A.

41100-39831-19A

Unavailable

2

TUBE, FRAME DOWN (MAROON) | MODEL J/L

41140-38A00-20U

Unavailable

2

TUBE, FRAME DOWN (BLACK) | MODEL J/L

41140-38A00-33J

Unavailable

2

TUBE, FRAME DOWN (PURPLE) | MODEL K

41140-38A00-0FG

Unavailable

2

TUBE, FRAME DOWN (BLUE) | MODEL M

41140-38A00-14W

Unavailable

2

TUBE, FRAME DOWN (RED) | MODEL M

41140-38A00-19A

Unavailable

3

BOLT, REAR

09106-10019

$3.50

4

WASHER This part replaces 09164-10005.

09164-10010

$4.83

5

NUT This part replaces 08319-31105.

08319-3110A

$2.73

6

BOLT | MODEL J/L This part replaces 01107-08205.

01500-0820A

$2.28

6

BOLT | MODEL K/M This part replaces 01517-08205.

01550-0820A

$2.23

7

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

8

PLATE, NO.1 LH (MAROON) | MODEL J/L

41920-38A00-20U

Unavailable

8

PLATE, NO.1 LH (BLACK) | MODEL J/L This part replaces 41920-38A00-33J.

41920-38A00-019

Unavailable

8

PLATE, NO.1 LH (PURPLE) | MODEL K

41920-38A00-0FG

Unavailable

8

PLATE, NO.1 LH (BLUE) | MODEL M

41920-38A00-14W

Unavailable

8

PLATE, NO.1 LH (BLACK) | MODEL M This part replaces 41920-38A00-19A.

41920-38A00-019

Unavailable

9

PLUG, DRAIN | MODEL J This part replaces 01107-08165.

01500-0816B

$2.50

9

BOLT | MODEL K/L/M This part replaces 01137-08165.

01570-0816A

$3.03

10

LOCK WASHER | MODEL J This part replaces 08321-21084.

08321-0108A

$1.84

11

PLATE, NO.1 LH (BLACK) | MODEL J/L This part replaces 41950-38A10-20U.

41950-38A11-33J

Unavailable

11

PLATE, NO.1 LH (BLACK) | MODEL J/L This part replaces 41950-38A10-33J.

41950-38A11-33J

Unavailable

11

PLATE, NO.1 LH (BLACK) | MODEL K This part replaces 41950-38A10-0FG.

41950-38A11-33J

Unavailable

11

PLATE, NO.1 LH (BLUE) | MODEL M

41920-38A10-14W

Unavailable

11

PLATE, NO.1 LH (RED) | MODEL M

41920-38A10-19A

Unavailable

12

PLATE, NO.3 LH (BLACK) | MODEL J/L This part replaces 41960-38A10-20U.

41960-38A10-33J

Unavailable

12

PLATE, NO.3 LH (BLACK) | MODEL J/L

41960-38A10-33J

Unavailable

12

PLATE, NO.3 LH (BLACK) | MODEL K This part replaces 41960-38A10-0FG.

41960-38A10-33J

Unavailable

12

PLATE, NO.3 LH (BLACK) | MODEL M This part replaces 41960-38A10-14W.

41960-38A10-33J

Unavailable

12

PLATE, NO.3 LH (RED) | MODEL M

41960-38A10-19A

Unavailable

13

BOLT, UPPER

09106-08070

$5.88

14

BOLT, STEERING DAMPER This part replaces 09106-08063.

07130-0830A

$1.74

15

CAP

09250-06004

$1.49

16

COVER,FRAME HEA | MODEL J/L This part replaces 47350-38A00-20U.

47350-38A01-13L

Unavailable

16

COVER, FRAME HEAD RH (BLACK) | MODEL J/L This part replaces 47350-38A00-33J.

47350-38A01-33J

Unavailable

16

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47350-38A00-0FG.

47350-38A01-0FG

Unavailable

16

COVER,FRAME HEA | MODEL M This part replaces 47350-38A00-14W.

47350-38A01-13L

Unavailable

16

COVER,FRAME HEA | MODEL M This part replaces 47350-38A00-19A.

47350-38A01-13L

Unavailable

17

COVER,FRM HEAD, | MODEL J/L This part replaces 47360-38A00-20U.

47360-38A01-13L

Unavailable

17

COVER, FRAME HEAD LH (BLACK) | MODEL J/L This part replaces 47360-38A00-33J.

47360-38A01-33J

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL K This part replaces 47360-38A00-0FG.

47360-38A01-0FG

Unavailable

17

NO DESCRIPTION AVAILABLE | MODEL M This part replaces 47360-38A00-14W.

47360-38A01-14W

Unavailable

17

COVER, FRAME HEAD LH (RED) | MODEL M This part replaces 47360-38A00-19A.

47360-38A01-19A

Unavailable

18

SCREW This part replaces 02142-05104.

02142-0510B

$1.78

19

SCREW This part replaces 02112-04254.

02112-0425B

$2.34

20

MOLDING, FRONT This part replaces 68241-38A10.

68241-04X50-300

$7.32

21

PROTECTOR (80X80X2) This part replaces 33652-38A10.

33652-07D00

$5.64

22

TAPE, FRAME HEAD COVER

47358-38A00

Unavailable

23

UNION This part replaces 09360-06015.

09360-06015-XC0

Unavailable

24

BOLT This part replaces 01517-06105.

01550-0610A

$1.97

25

GASKET

09168-06004

$1.49
