1991 Suzuki VS750GLPM Footrest Diagram

← All diagrams

Find the part on the Footrest diagram for your 1991 Suzuki VS750GLPM, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

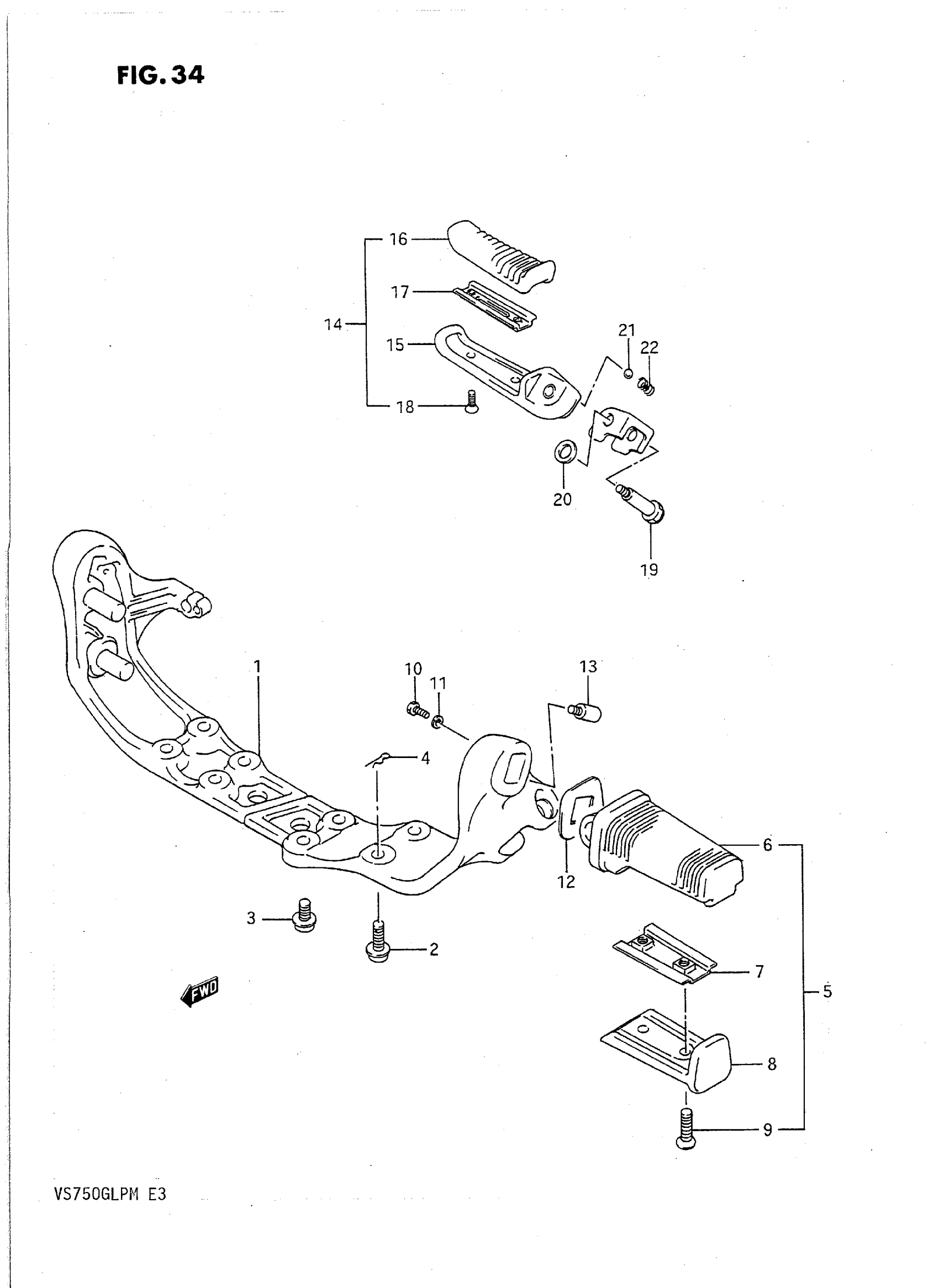

1991 Suzuki VS750GLPM Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

BRACKET, FRONT FOOTREST This part replaces 43510-38A41.

43510-38E01

1
Out of stock

2

BOLT, OUTER

09106-08064

4
Out of stock

3

BOLT This part replaces 07120-08208.

07120-0820A

4
Out of stock

4

PIN

09385-08005

4
Out of stock

5

FOOTREST ASSY, FRONT RH This part replaces 43501-38B10.

43501-38B11

1
Out of stock

5

FOOTREST ASSY, FRONT LH | Includes Item(s) 6 - 9 This part replaces 43502-38B10.

43502-38B11

1
Out of stock

6

2

$14.85

In stock

7

PLATE, FOOTREST

43580-38B10

2
Out of stock

8

COVER, FRONT FOOTREST This part replaces 43585-38B10.

43585-38B11

2
Out of stock

9

SCREW

09127-05018

4
Out of stock

10

BOLT, RUBBER STOP This part replaces 01107-05127.

01500-05127

2
Out of stock

11

LOCK WASHER This part replaces 08321-21057.

08321-0105A

2
Out of stock

12

WASHER, FRONT FOOTREST This part replaces 43546-38B00.

43546-38B01

2
Out of stock

13

BOLT This part replaces 43641-38B00.

09106-06101

2
Out of stock

14

FOOTREST ASSY, PILLION RH

43600-38A01

1
Out of stock

14

FOOTREST ASSY,P | Includes Item(s) 15 - 18 This part replaces 43700-38A01.

43700-38A02

1
Out of stock

15

FOOTREST ASSY, PILLION RH This part replaces 43610-38A00.

43600-38A01

1
Out of stock

15

FOOTREST ASSY,P This part replaces 43710-38A00.

43700-38A02

1
Out of stock

16

2

$9.67

In stock

17

PLATE, RUBBER STOPPER

43632-38A00

2
Out of stock

18

SCREW

09127-05017

4
Out of stock

19

BOLT

09111-06050

2
Out of stock

20

SHIM

08221-08164

2
Out of stock

21

BALL

06111-07004

4
Out of stock

22

SPRING

09440-05031

4
Out of stock
