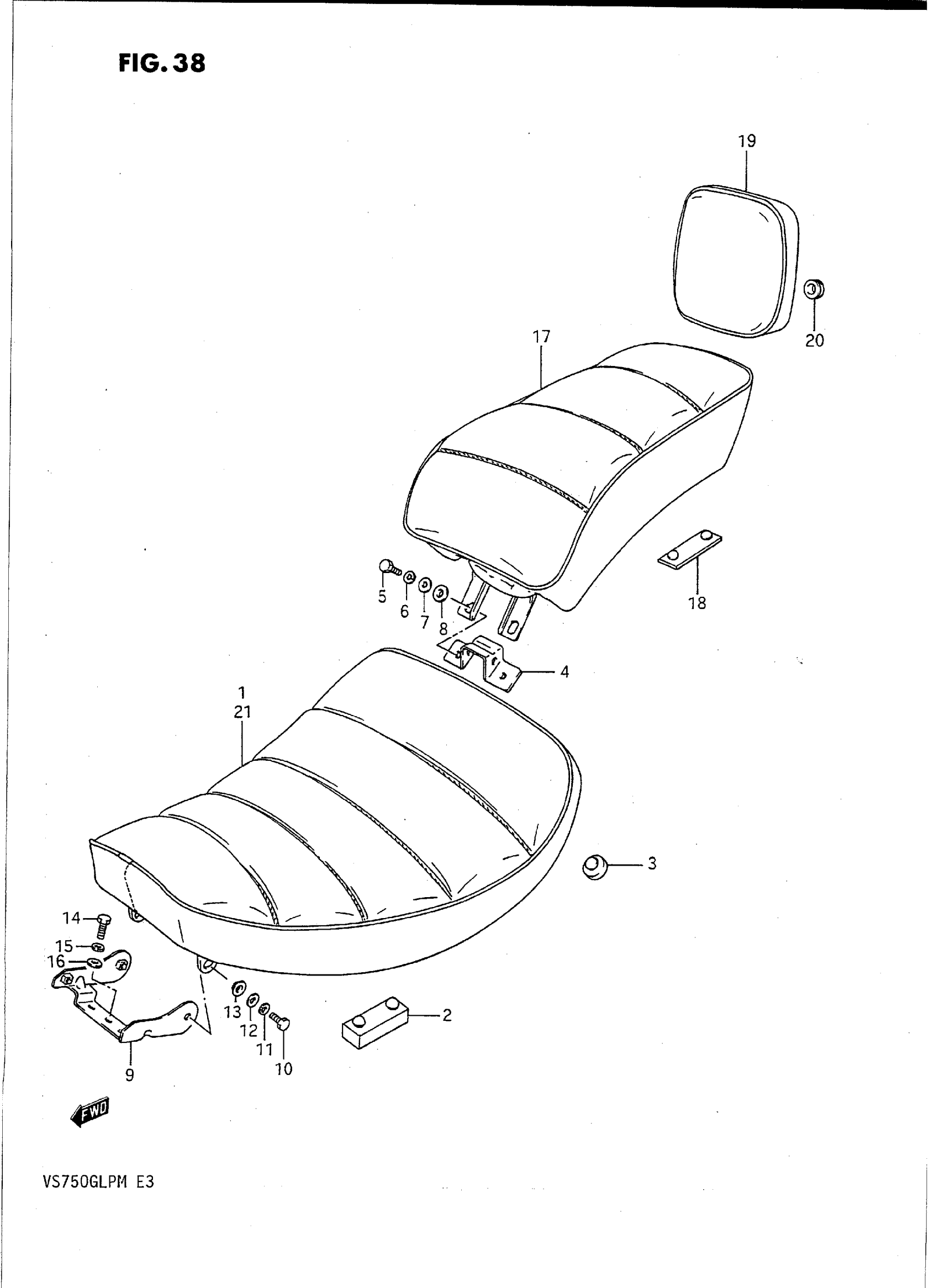

Suzuki VS750GLPM (1991) SEAT Diagram

#

Description
Price

1

NO DESCRIPTION AVAILABLE | Includes Item(s) 2 - 3 This part replaces 45100-38A40-5KR.

45100-38A43-5KR

Unavailable

2

CUSHION

45149-43500

$7.73

3

CUSHION

09321-10012

$2.80

4

PLATE, SEAT HOOK REAR

45119-38A00

$9.25

5

BOLT | MODEL J This part replaces 01107-06166.

01500-0616A

$1.77

5

BOLT | MODEL K/L/M This part replaces 01174-06166.

01580-0616A

$2.43

6

LOCK WASHER | MODEL J This part replaces 08321-21066.

08321-0106A

$1.83

7

.WASHER | MODEL J This part replaces 08322-21066.

08322-0106B

$2.24

8

WASHER

09169-06037

$2.67

9

BRACKET, SEAT FRONT | MODEL J/L This part replaces 45210-38A02-20U.

45210-38A03

$35.78

9

BRACKET, SEAT FRONT | MODEL J/L This part replaces 45210-38A02-019.

45210-38A03

$35.78

9

BRACKET, SEAT FRONT | MODEL K This part replaces 45210-38A02-0FG.

45210-38A03

$35.78

9

BRACKET, SEAT FRONT | MODEL M This part replaces 45210-38A02-14W.

45210-38A03

$35.78

9

BRACKET, SEAT FRONT | MODEL M This part replaces 45210-38A02-19A.

45210-38A03

$35.78

10

BOLT | MODEL J This part replaces 01107-06166.

01500-0616A

$1.77

10

BOLT | MODEL K/L/M This part replaces 01174-06166.

01580-0616A

$2.43

11

LOCK WASHER | MODEL J This part replaces 08321-21066.

08321-0106A

$1.83

12

.WASHER | MODEL J This part replaces 08322-21066.

08322-0106B

$2.24

13

WASHER

09169-06037

$2.67

14

BOLT | MODEL J This part replaces 01107-06166.

01500-0616A

$1.77

14

BOLT | MODEL K/L/M This part replaces 01174-06166.

01580-0616A

$2.43

15

LOCK WASHER | MODEL J This part replaces 08321-21066.

08321-0106A

$1.83

16

.WASHER | MODEL J This part replaces 08322-21066.

08322-0106B

$2.24

17

NO DESCRIPTION AVAILABLE | Includes Item(s) 18 This part replaces 45300-38A40-5KR.

45300-38AV0-5KR

Unavailable

18

CUSHION

45149-14500

$8.65

19

PAD ASSY, SEAT (BLACK) This part replaces 45350-38A40-5KR.

45350-38A41-5KR

Unavailable

20

CUSHION This part replaces 09320-09026.

09320-09062

$2.14

21

NO DESCRIPTION AVAILABLE | OPT This part replaces 45100-38810-9HZ.

99950-62109

Unavailable

21

SEAT SET (BUNGUNDY) | OPT

45100-38810-9KG

Unavailable
