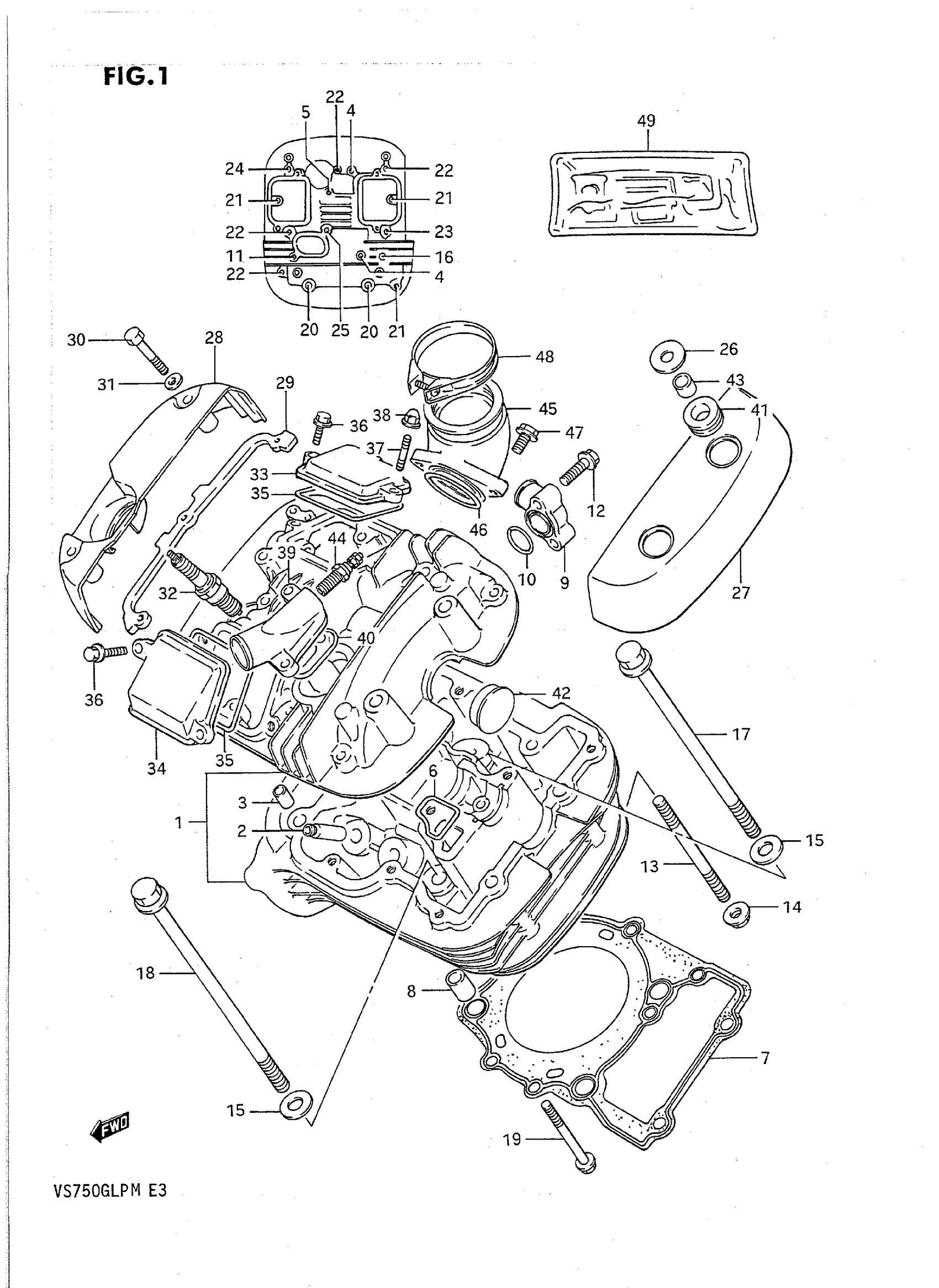

Suzuki VS750GLPM (1991) CYLINDER HEAD (FRONT) Diagram

#

Description
Price

1

HEAD ASSY, CYLINDER FRONT | Includes Item(s) 2 - 5 This part replaces 11101-38A01.

11101-38A02

Unavailable

2

GUIDE, VALVE (OS 0.3) This part replaces 11115-38A71.

11115-41F70

$40.73

3

PIN (11X14) This part replaces 09206-11011.

09206-11004

$5.36

4

BOLT (6X50)

09103-06101

$2.16

5

BOLT (6X55)

09103-06102

$2.10

6

GASKET, CYLINDER HEAD COVER

11123-38A00

$3.77

7

GASKET, CYLINDER HEAD FRONT

11141-38A01

Unavailable

8

PIN This part replaces 09206-13001.

04211-13189

$2.19

9

UNION, CYLINDER HEAD WATER This part replaces 11169-38A00.

11169-45C10

Unavailable

10

O RING

09280-18004

$5.18

11

BOLT This part replaces 01517-06207.

01550-06207

$2.30

12

BOLT

01547-06257

$2.03

13

STUD BOLT

09108-08144

$3.20

14

NUT (CHROME) This part replaces 08316-16088.

08316-10087

$2.26

15

WASHER

09160-10039

$2.26

16

BOLT (8X140)

09103-08040

$5.52

17

BOLT (10X155)

09103-10133

$9.48

18

BOLT (10X165)

09103-10134

$9.48

19

BOLT This part replaces 01517-06408.

01550-06407

$2.69

20

BOLT (8X245)

09103-08180

Unavailable

21

BOLT This part replaces 01517-06257.

01550-06257

$2.30

22

BOLT This part replaces 01517-06307.

01550-06307

$2.69

23

BOLT This part replaces 07120-06308.

07120-06307

$4.32

24

BOLT This part replaces 01517-06408.

01550-06407

$2.69

25

BOLT (6X55)

09103-06102

$2.10

26

WASHER This part replaces 09160-08098.

09160-08130

$2.03

27

CAP, HEAD COVER LH

11171-38A02

Unavailable

28

CAP, HEAD COVER RH

11172-38A03

Unavailable

29

CUSHION, HEAD COVER CAP

11272-38A00

$11.07

30

BOLT

01204-06407

$2.07

31

WASHER This part replaces 08322-21067.

08322-01067

$2.13

32

SPARK PLUG (NGK,DPR8EA-9) | MODEL J This part replaces 09482-00332.

09482-00334

$3.03

32

SPARK PLUG (ND,X24EP-U9) | MODEL J

09482-00333-111

Unavailable

32

SPARK PLUG (NGK,DPR7EA-9) | MODEL J OPT This part replaces 09482-00352.

09482-00354

$3.32

32

NO DESCRIPTION AVAILABLE | MODEL J OPT This part replaces 09482-00353-111.

09482-00353

Unavailable

32

SPARK PLUG (NGK,DPR9EA-9) | MODEL J OPT This part replaces 09482-00328.

09482-00330

$3.11

32

SPARK PLUG (ND,X27EP-U9) | MODEL J OPT

09482-00329-111

Unavailable

32

SPARK PLUG (NGK,DPR8EA-9) | MODEL K/L/M

09482-00334

$3.03

32

SPARK PLUG (DENSO,X24EPR-U9) | MODEL K/L/M This part replaces 09482-00335-111.

09482-00335

$5.36

32

SPARK PLUG (NGK,DPR7EA-9) | MODEL K/L/M OPT

09482-00334

$3.03

32

SPARK PLUG (NGK,DPR7EA-9) | MODEL K/L/M OPT This part replaces 09482-00355-111.

09482-00354

$3.32

32

SPARK PLUG (NGK,DPR9EA-9) | MODEL K/L/M OPT

09482-00330

$3.11

32

SPARK PLUG (DENSO,X27EPR-U9) | MODEL K/L/M OPT This part replaces 09482-00331-111.

09482-00331

$5.28

33

CAP, INSPECTION INTAKE This part replaces 11175-38A01.

11175-38A11

$23.07

34

NO DESCRIPTION AVAILABLE This part replaces 11176-38A01.

11176-38A02

Unavailable

35

GASKET, INSPECTION CAP

11177-38A00

$4.48

36

BOLT

01547-06207

$2.01

37

BOLT,STUD This part replaces 01421-06168.

01421-0616A

$1.91

38

NUT This part replaces 08313-21067.

08313-20067

$2.42

39

UNION, WATER OUTLET This part replaces 11181-38A01.

11181-38A02

Unavailable

40

GASKET, WATER UNION

11182-38A00

$2.81

41

CUSHION

09320-13015

$2.85

42

PLUG, HEAD This part replaces 09241-30006.

09241-30004

$6.60

43

BUSH

09301-08007

$6.80

44

SENDING UNIT, WATER TEMP

34850-05A10

Unavailable

45

PIPE ASSY,INTAK This part replaces 13110-38A03.

13101-38E01

$72.57

46

O-RING (D:2.4,ID:39.7) This part replaces 09280-40003.

09280-40020

$2.91

47

BOLT This part replaces 01517-06164.

01550-0616A

$1.97

48

CLAMP, INTAKE PIPE This part replaces 13170-05A00.

09402-52501

$10.90

49

GASKET SET | OPT This part replaces 11400-38842.

11400-38848

Unavailable
