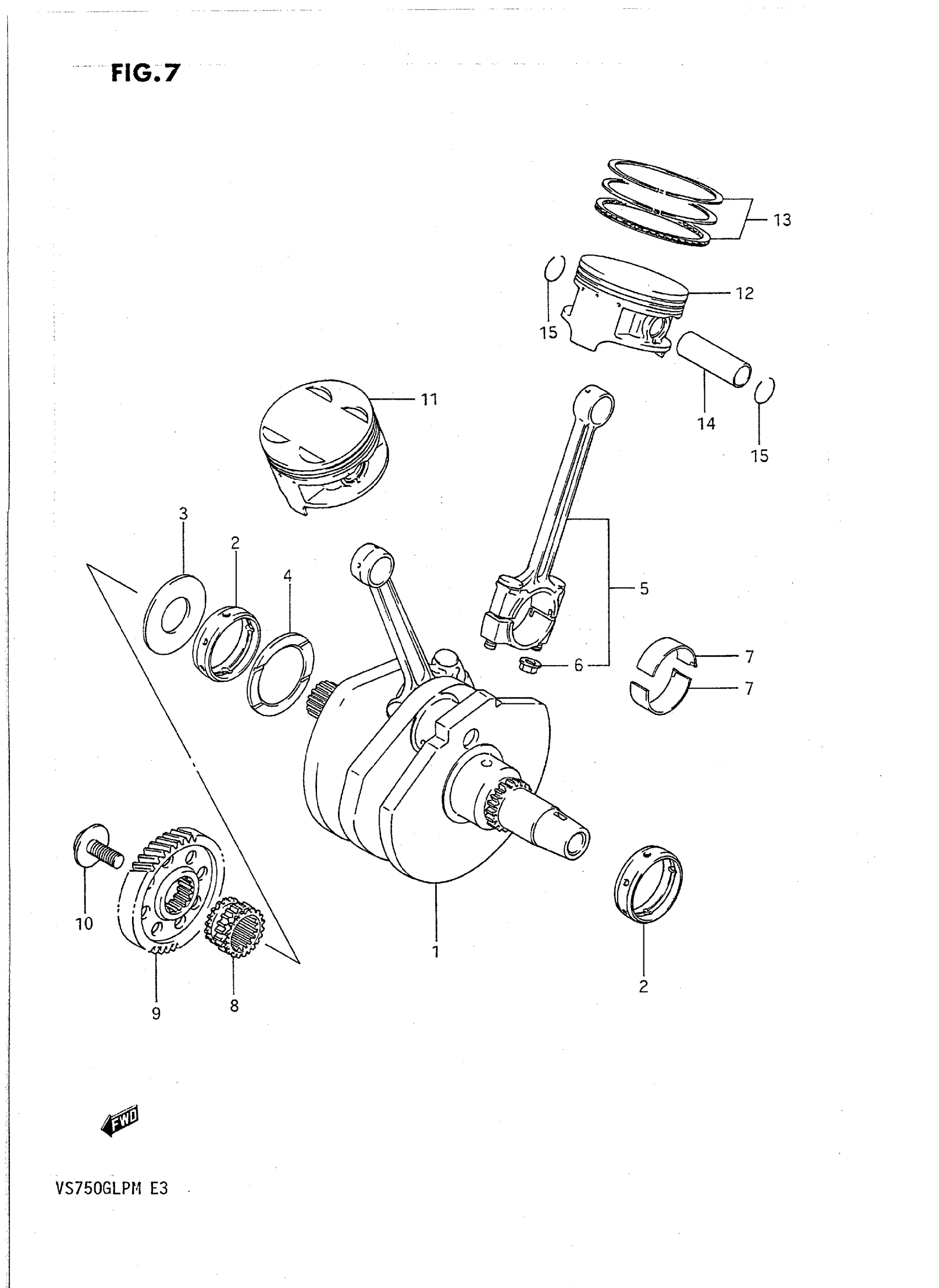

Suzuki VS750GLPM (1991) CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT SET | MODEL J This part replaces 12220-38A11.

12000-38810

$1,672.38

1

CRANKSHAFT SET | MODEL K/L/M This part replaces 12220-38A12.

12000-38810

$1,672.38

2

BEARING, CRANKSHAFT | INCLUDED CRANKCASE SET

12229-38A00

$24.87

3

WASHER, CRANK THRUST

12652-38A00

$81.72

4

WASHER, CRANK THRUST (NO.1)

09160-48001

Unavailable

4

WASHER, CRANK THRUST (NO.2)

09160-48002

Unavailable

4

WASHER, CRANK THRUST (NO.3)

09160-48003

Unavailable

4

WASHER, CRANK THRUST (NO.4)

09160-48004

Unavailable

4

WASHER, CRANK THRUST (NO.5)

09160-48005

Unavailable

4

WASHER, CRANK THRUST (NO.6)

09160-48006

$30.35

4

WASHER, CRANK THRUST (NO.7)

09160-48007

Unavailable

4

WASHER, CRANK THRUST (NO.8)

09160-48008

Unavailable

4

WASHER, CRANK THRUST (NO.9)

09160-48009

Unavailable

4

WASHER, CRANK THRUST (NO.10)

09160-48010

$30.35

5

ROD ASSY, CONNECTING | Includes Item(s) 6 This part replaces 12160-38A13.

12160-45C30

$185.15

6

NUT

09159-09001

$4.68

7

BEARING, CRANK PIN (GREEN) This part replaces 12164-38A01-0A0.

12164-45C01-0A0

Unavailable

7

BEARING, CRANK PIN (BLACK) This part replaces 12164-38A01-0B0.

12164-45C01-0B0

Unavailable

7

BEARING, CRANK PIN (BROWN) This part replaces 12164-38A01-0C0.

12164-45C01-0C0

Unavailable

7

BEARING, CRANK PIN (YELLOW) This part replaces 12164-38A01-0D0.

12164-45C01-0D0

Unavailable

7

BEARING, CRANK PIN (BLUE) This part replaces 12164-38A01-0E0.

12164-45C01-0E0

Unavailable

8

SPROCKET, CAM CHAIN DRIVE RH

12731-38A00

$59.07

9

GEAR, PRIMARY DRIVE

21111-38A00

Unavailable

10

BOLT

09103-12013

$8.83

11

PISTON, FRONT

12111-38A12

Unavailable

11

PISTON,SET | OPT This part replaces 12111-38A12-050.

12103-38830-050

Unavailable

11

NO DESCRIPTION AVAILABLE | OPT This part replaces 12111-38A12-100.

12103-38830-100

Unavailable

12

PISTON, REAR

12112-38A12

Unavailable

12

PISTON SET,OS:0 | OPT This part replaces 12112-38A12-050.

12103-38880-050

Unavailable

12

NO DESCRIPTION AVAILABLE | OPT This part replaces 12112-38A12-100.

12103-38880-100

Unavailable

13

RING SET, PISTON

12140-38A20

Unavailable

13

RING SET, PISTON (OS:0.5) | OPT

12140-38A20-050

Unavailable

13

RING SET, PISTON (OS:1.0) | OPT

12140-38A20-100

Unavailable

14

PIN,PISTON

12151-24A00

$22.03

15

CIRCLIP

09381-20004

$1.65
