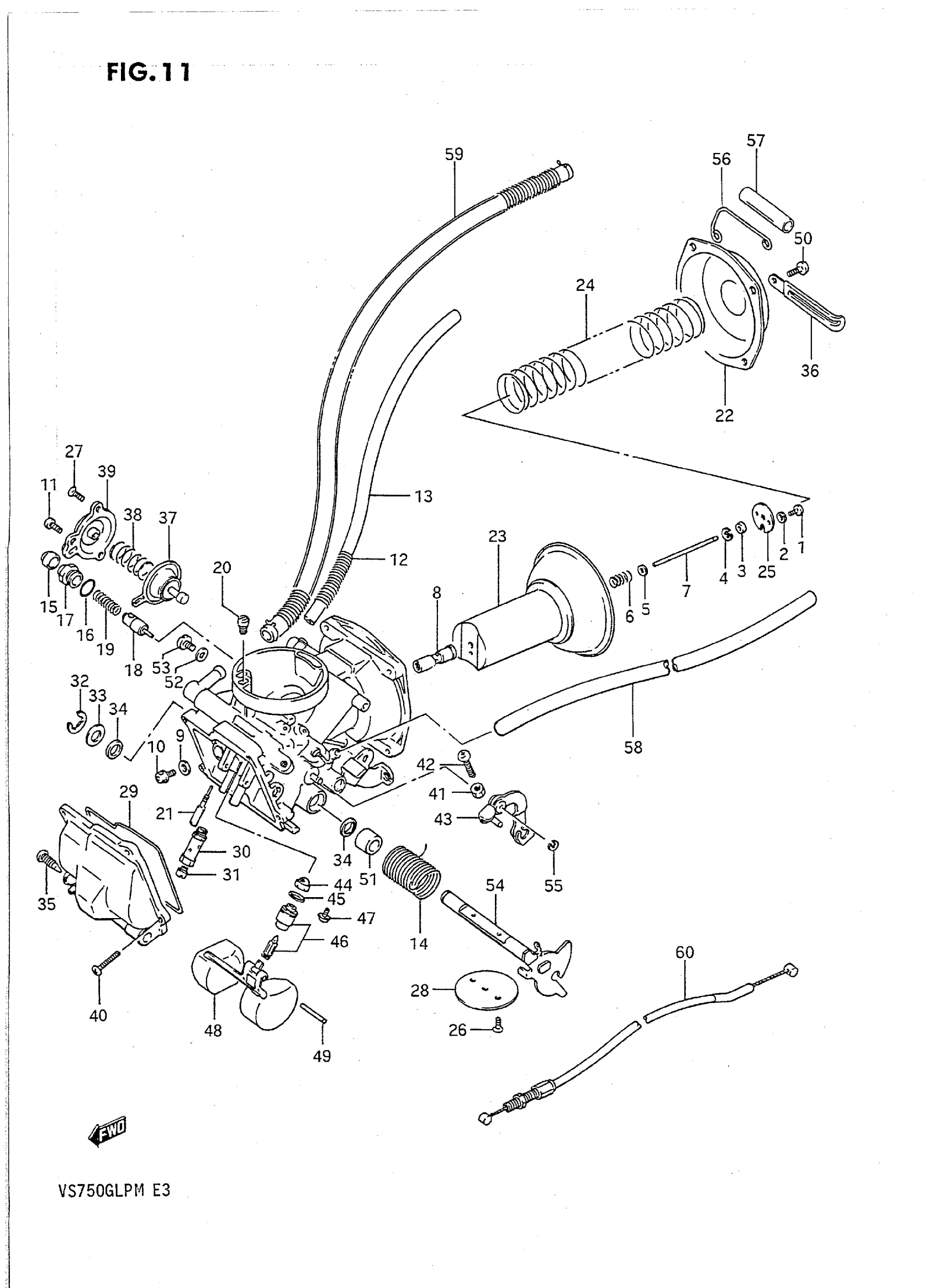

Suzuki VS750GLPM (1991) CARBURETOR (FRONT) Diagram

#

Description
Price

CARBURETOR ASSY, FRONT

13210-39A00

Unavailable

CARBURETOR ASSY, FRONT | CALIFORNIA ONLY; Includes Item(s) 1 - 58

13210-39A10

Unavailable

1

SCREW This part replaces 02112-03066.

02112-0306B

$1.59

2

LOCK WASHER This part replaces 08321-21036.

08321-2103B

$1.49

3

RING

13387-47010

$7.22

4

E RING

13394-10010

$5.45

5

WASHER

13382-44030

$3.71

6

SPRING

13388-44030

$8.12

7

NEEDLE, JET | 5D21-1

13383-38A00

Unavailable

8

JET, NEEDLE (P-4)

09494-00592

$37.53

9

WASHER, NEEDLE JET This part replaces 13332-44080.

13382-03110

$2.80

10

SCREW

13605-05A10

$8.12

11

SCREW This part replaces 02112-04106.

02112-0410A

$1.49

12

SPRING

13689-38A00

$9.17

13

HOSE,5X10X600 | L:225->185 This part replaces 13684-38A20.

44421-13ER0

$10.06

14

SPRING

13573-38A01

Unavailable

15

.CAP This part replaces 13681-04010.

13681-04011

$4.93

16

.O RING (16) This part replaces 13278-47090.

13278-47091

$1.90

17

HOLDER, GUIDE

13418-38A00

$10.23

18

PLUNGER ASSY This part replaces 13411-38400.

13411-01400

$13.30

19

SPRING

13417-08210

$3.56

20

JET, PILOT AIR (70)

09492-70004

$11.83

21

JET, PILOT (25)

09492-25007

Unavailable

22

COVER

13502-38A00

$37.53

23

DIAPHRAGM ASSY This part replaces 13500-05A10.

13500-05A11

$115.12

24

SPRING

13503-05A10

$12.57

25

PLATE

13389-37400

$7.08

26

SCREW

13604-44080

$2.92

27

SCREW This part replaces 13603-38A00.

02122-0410A

$1.49

28

VALVE, THROTTLE

13551-38A00

Unavailable

29

O RING

13251-38A00

$6.79

30

HOLDER

13385-05A11

$14.85

31

JET,POWER(132.5 This part replaces 09491-26013.

09491-26019

$14.76

32

E RING

13617-44080

$2.90

33

WASHER

13557-47070

$3.59

34

SEAL This part replaces 13556-05A10.

13556-05A11

$3.59

35

SCREW

13247-02340

$4.99

36

CLAMP This part replaces 09404-06401.

09404-06039

$1.74

37

DIAPHRAGM ASSY This part replaces 13480-05A10.

13480-05A11

$51.76

38

SPRING This part replaces 13481-05A10.

13481-45C10

$5.55

39

COVER

13484-38A00

$22.65

40

SCREW

13601-04148

$2.81

41

NUT This part replaces 13607-05A10.

08310-00047

$2.23

42

SCREW This part replaces 02112-04306.

02112-0430B

$2.83

43

LEVER ASSY This part replaces 13554-38B10.

13554-45C20

$41.63

44

FILTER This part replaces 13376-84110.

13376-19F00

$10.28

45

O RING This part replaces 13374-44080.

13374-35C00

$5.99

46

VALVE ASSY, NEEDLE

13370-01401

$67.25

47

SCREW

13602-05A10

$3.56

48

FLOAT

13250-05A10

Unavailable

49

PIN, FLOAT

13254-20010

$4.28

50

SCREW This part replaces 02112-05126.

02112-0512A

$1.49

51

RING

13574-01400

Unavailable

52

GASKET This part replaces 13531-38A00.

09168-05010

$1.71

53

SCREW

13605-73000

$11.95

54

SHAFT ASSY, THROTTLE

13550-38A00

Unavailable

55

E RING This part replaces 13298-49000.

13415-38300

$2.08

56

CLIP

13671-38A00

Unavailable

57

HOSE(6X10X600) This part replaces 13684-38A00.

09352-60104-600

$8.99

58

HOSE (5X8X430) | CALIFORNIA ONLY This part replaces 13680-38A10.

13683-38B01

$34.98

59

HOSE ASSY, FUEL This part replaces 13683-38A20.

13683-38A21

$61.07

60

CABLE, ID SYNCRO This part replaces 13641-38A00.

13641-38A01

$19.07
