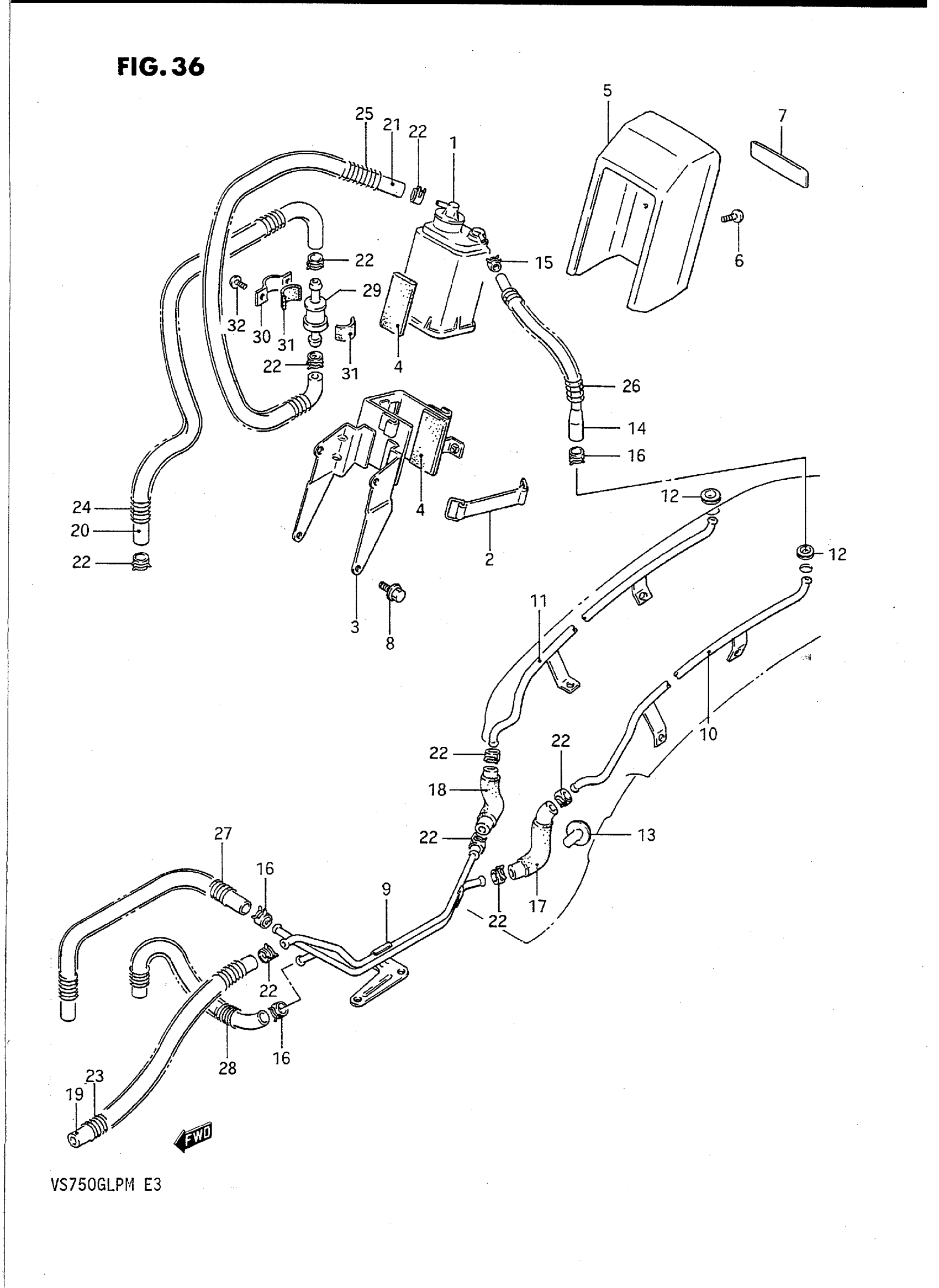

Suzuki VS750GLPM (1991) CANISTER (FOR CALIFORNIA) Diagram

#

Description
Price

1

CANISTER ASSY

17210-38A00

Unavailable

2

BAND

09462-00034

$4.24

3

PLATE, CANISTER FITTING | Includes Item(s) 4 This part replaces 44880-38A10.

44880-38A12

Unavailable

4

CUSHION (10X30X2)

44894-24A00

$1.72

5

COVER, CANISTER

44991-38A10

Unavailable

6

SCREW, COVER

09120-05002

Unavailable

7

EMBLEM This part replaces 68261-38A20.

68261-38A30

$37.15

8

BOLT

01547-06167

$1.65

9

PIPE, CANISTER JOINT FRONT

44940-38A00

Unavailable

10

PIPE, CANISTER JOINT REAR PRG

44950-38A10

Unavailable

11

PIPE, CANISTER JOINT REAR CHG

44960-38A10

Unavailable

12

GROMMET

09308-05020

Unavailable

13

GROMMET

09308-05004

Unavailable

14

HOSE, CANISTER/JOINT PIPE PRG

44911-43500

Unavailable

15

CLIP, HOSE This part replaces 09401-06404.

09401-06405

$2.45

16

CLIP This part replaces 09401-08407.

09401-08411

$1.78

17

HOSE, NO.6 PRG

44340-38A00

Unavailable

18

HOSE, NO.2 CHG

44330-38A00

Unavailable

19

HOSE, CANISTER & CARB This part replaces 09358-54116-00B.

09355-54115-00B

Unavailable

20

HOSE, NO.3 CHG

09343-05414

Unavailable

21

HOSE, NO.4 CHG

09343-05414

Unavailable

22

CLIP This part replaces 09401-11410.

09401-11413

$2.26

23

SPRING This part replaces 09440-13018.

09440-13043

$6.04

24

SPRING, NO.2

09440-13044

Unavailable

25

SPRING, NO.3

09440-13043

$6.04

26

SPRING, NO.4

09440-10031

Unavailable

27

SPRING, NO.5

09440-10022

Unavailable

28

SPRING, NO.6

09440-10019

$3.37

29

VALVE, FUEL TANK BREATHER

44240-38A00

$61.15

30

PLATE,FUEL TANK BREATHER NO.2 | Includes Item(s) 31

44892-24A00

$4.52

31

CUSHION (10X30X2)

44894-24A00

$1.72

32

SCREW This part replaces 02142-04103.

02142-0410A

$1.49
